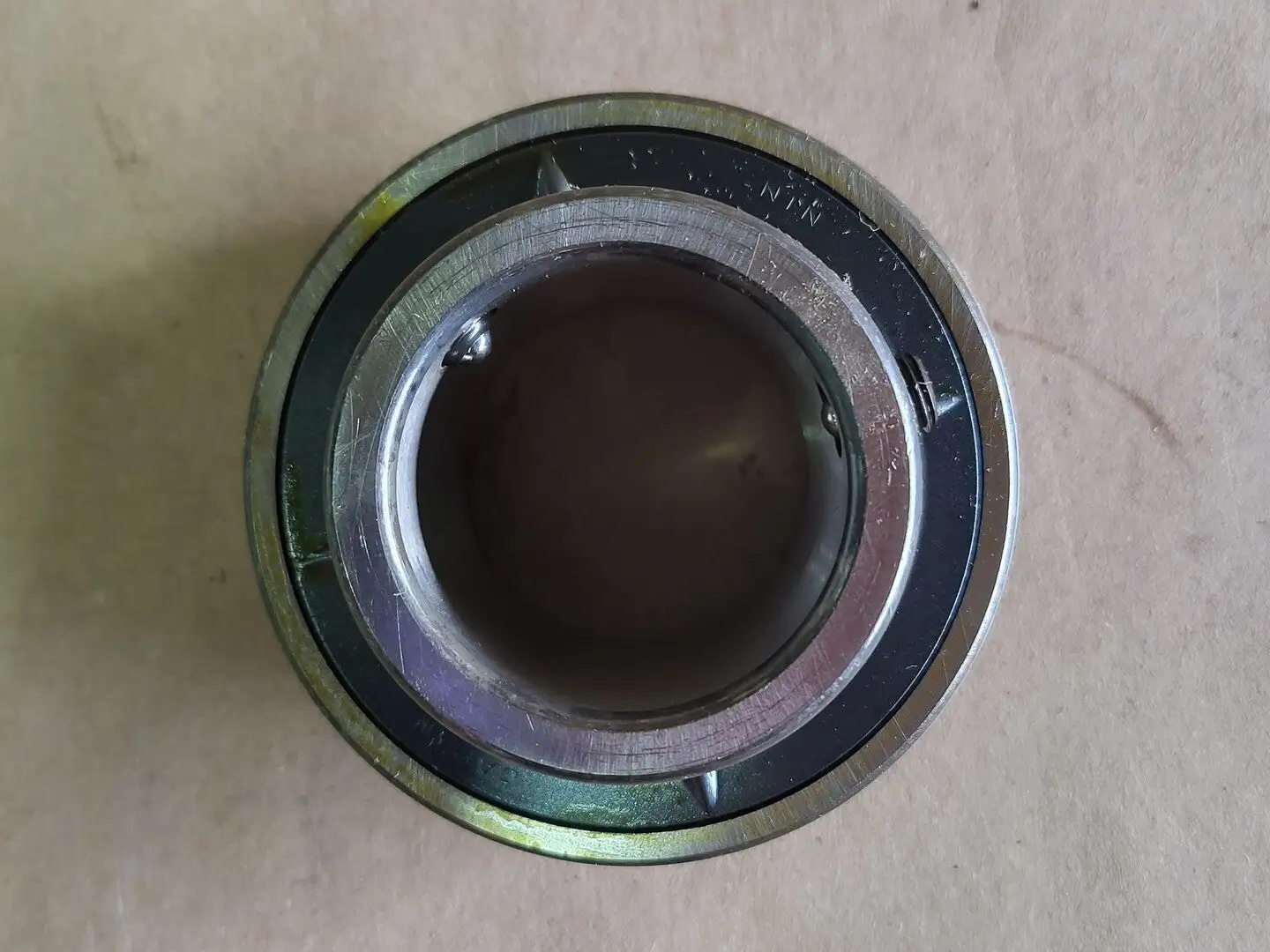

NEW NTN UC208D1

Bore Size (Metric): 49.2 mm
Bore Size (Imperial): 1.93 in
Outside Diameter (Metric): 80 mm
Outside Diameter (Imperial): 3.14 in
Snap Ring Included: No
Bearing Type: Ball
Fillet Radius: 1.5 mm
Inside Diameter: 40 mm
Center of Bearing to Back of Inner Ring: 19 mm
Outer Ring Width: 24 mm
Inner Ring Width: 49.2 mm
Duty: Standard
Enclosure: Double-Sealed
Material: Through Hardened Steel
Seal Material: Nitrile Rubber
Lubrication: Relubricatable
Locking Device: SetScrew Locking
Inside Ring Type: Wide
Outer Ring Type: Spherical
Bore Type: Round Bore
Seal Type: Contact Seals
Screw Size: M8 x 1
Static Load Rating (Max): 4000 lbf
Dynamic Load Rating: 6550 lbf
Screw Distance: 8
Limiting Speed- Grease: 3700 rpm
