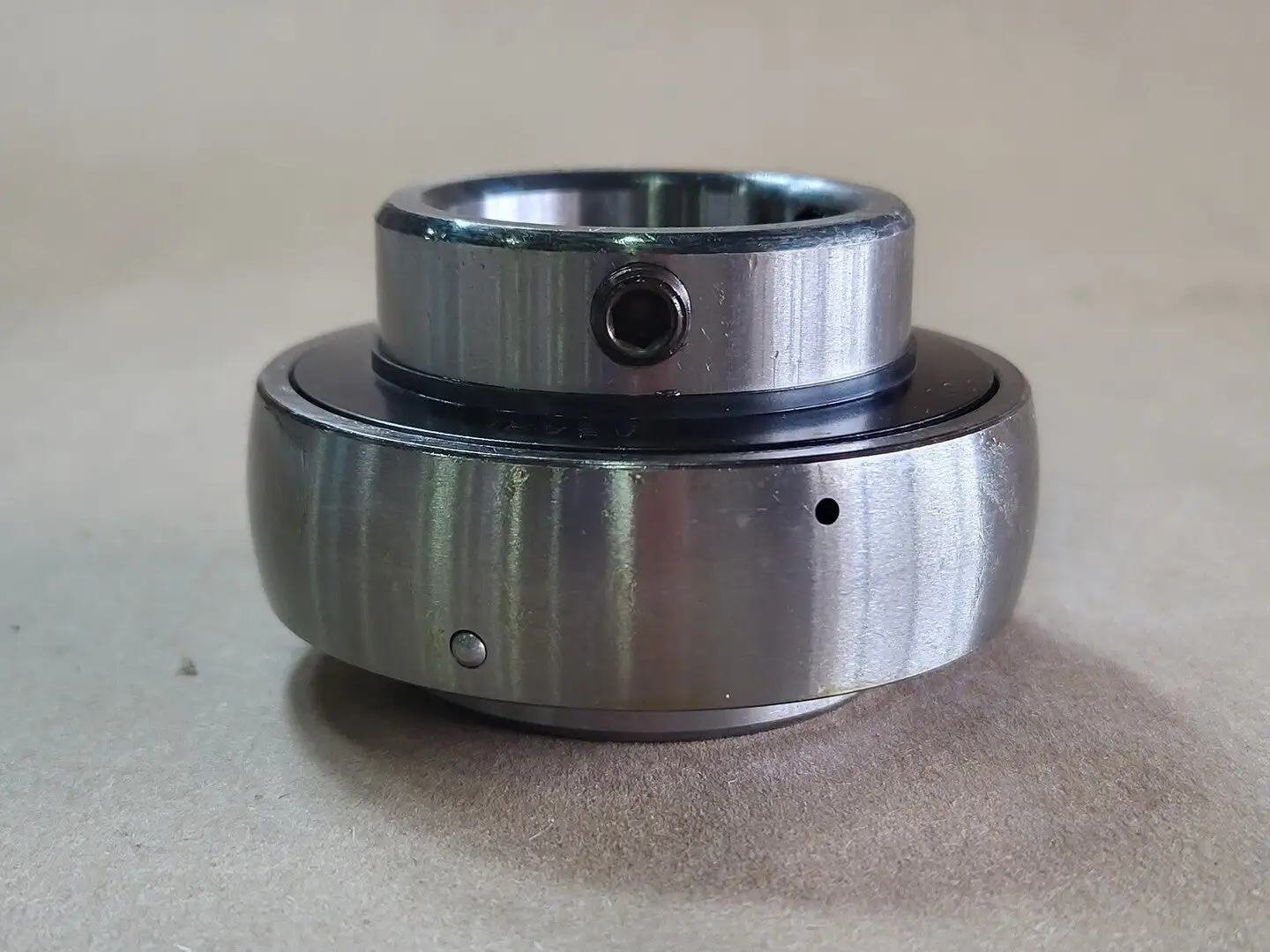

NEW AMI BEARINGS UC207-23

Bore Size (Metric): 36.5 mm
Bore Size (Imperial): 1.437 in
Outside Diameter (Metric): 72 mm
Outside Diameter (Imperial): 2.834 in
Snap Ring Included: No
Bearing Type: Ball
Fillet Radius: 0.079 in.
Shaft Diameter: 1-7/16 in.
Outer Ring Width: 0.787 in.
Duty: Standard
Enclosure: Double-Sealed
Material: Steel
Length Through Bore: 1.689 in.
Bore Type: Round
Locking Device: Setscrew Locking Collar
Locking Style: Setscrew
O.D. Type: Spherical
I.D. Type: Wide
Seal Type: Contact Seals
Dynamic Load Rating: 5820 lbf
Static Load Rating: 3460 lbf
