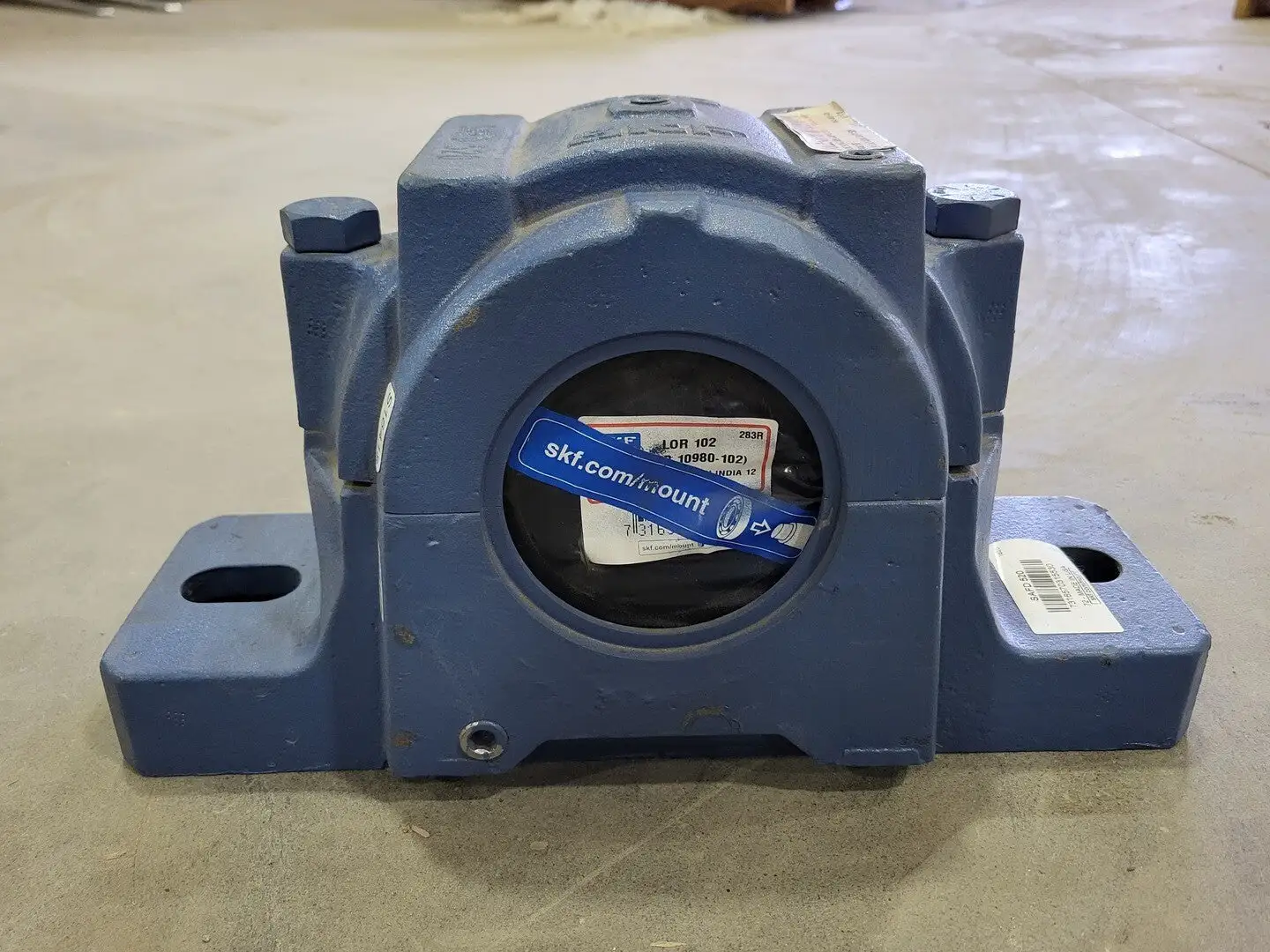

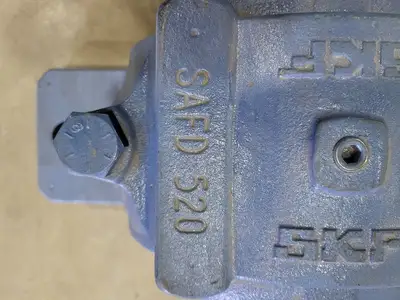

NEW SKF SAFD 520

Type: Split Plummer Block
Height: 8.5"
Outside Length: 15.2500 in.
Base to Bore Centerline: 4.5000 in.
Distance Between Bolts: 13.1250 in.
Housing Compatible Bore Diameter: 3.5000in. , 3.4375 in.
Compatible Bearing Series/Part #: 1220 K, 2220 K, 22220 EK, 23220CCK/W33, C2220 K
Base Width: 4-3/8 in.
Housing Construction: Split
Housing Material: Ductile Iron
Series: SAFD
Standard Met: ASTM A536 Grade 65-45-12
Mounting Type: Two-Bolt Base
