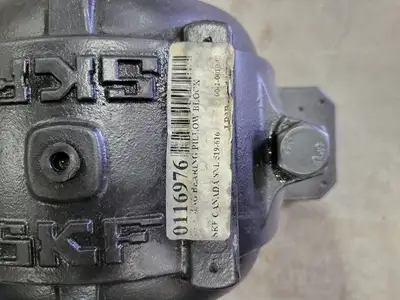

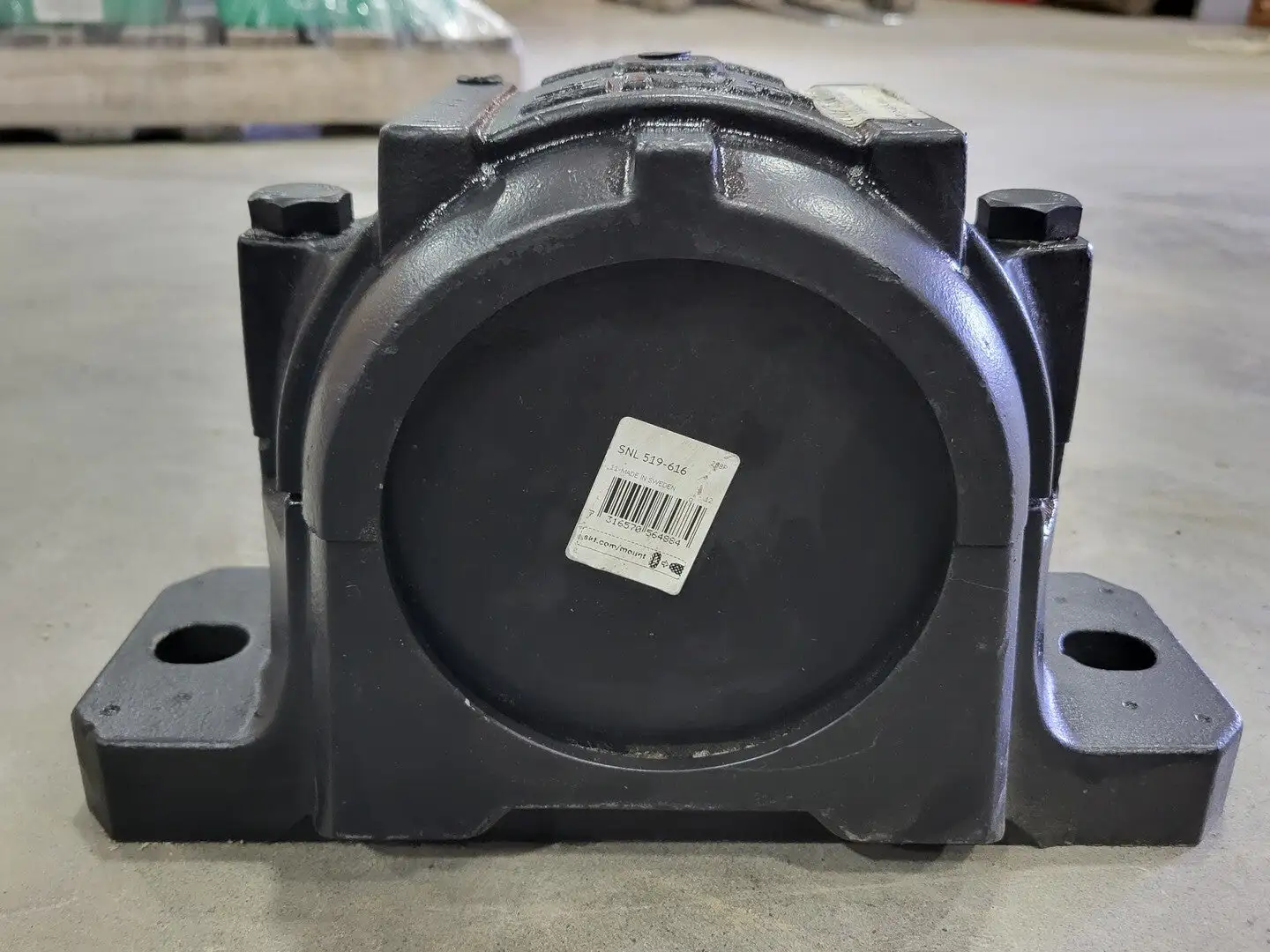

NEW SKF SNL 519-616

Type: Split Plummer Block
Height: 8.7500 in.
Outside Length: 13.6250 in.
Base to Bore Centerline: 112 mm
Distance Between Bolts: 290 mm
Housing Compatible Bore Diameter: 2.6875 in., 2.7500 in.
Compatible Bearing Series/Part #: 1219 K, 1316, 1316 K, 21316 EK, 2219 K, 22219 EK, 22316 K, 22316 EK, 2316, 2316 K, C2316
Compatible Bearing Types: Spherical Roller
Housing Construction: Split
Housing Material: Cast Iron
Housing Configuration: Two-piece
Number of Bolt Holes for Fasteners: 2
Bearing Housing Seal Type: Without
Base Width: 3-15/16 in.
Standard Met: ISO/DIS 185 Grade 200
Series: SNL
Mounting Type: Two-Bolt Base
