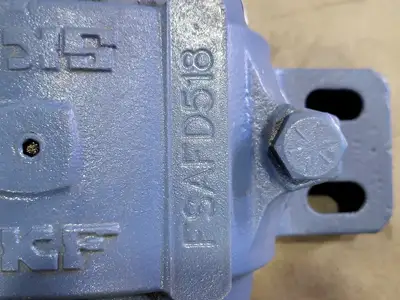

NEW SKF FSAFD 518

Type: Pillow Block
Height: 8 in.
Outside Length: 13.7500 in.
Base to Bore Centerline: 4.0000 in.
Distance Between Bolts: 11.7500 in.
Housing Compatible Bore Diameter: 3.1875 in.
Compatible Bearing Series/Part #: 1218 K, 22218 EK H, C2218 EK
Compatible Bearing Types: Self-Aligning Ball, Spherical Roller
Base Width: 3-7/8 in.
Housing Construction: Split
Housing Material: Cast Iron
Housing Configuration: Two-piece
Number of Bolt Holes for Fasteners: 4
Series: FSAF
Standard Mets: ASTM A48 Grade 35
Mounting Type: Four-Bolt Base
Bearing Housing Seal Type: Labyrinth
Mounting Arrangement: Through Shaft/Shaft end
