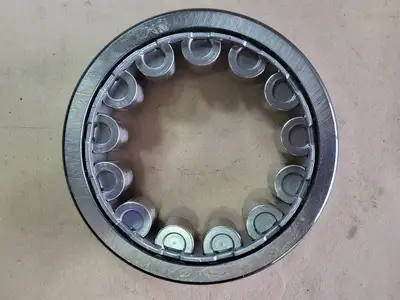

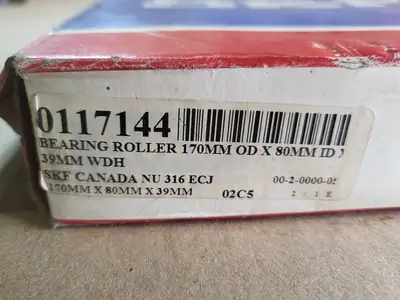

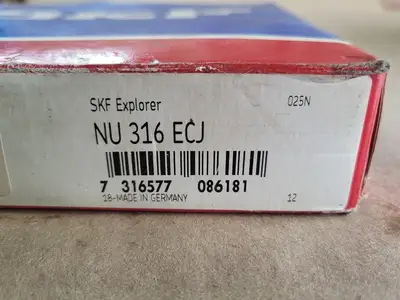

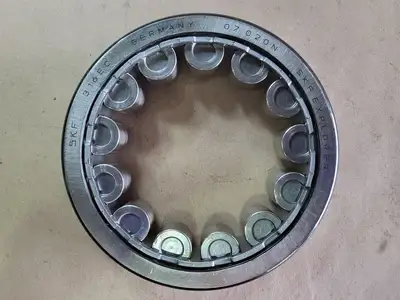

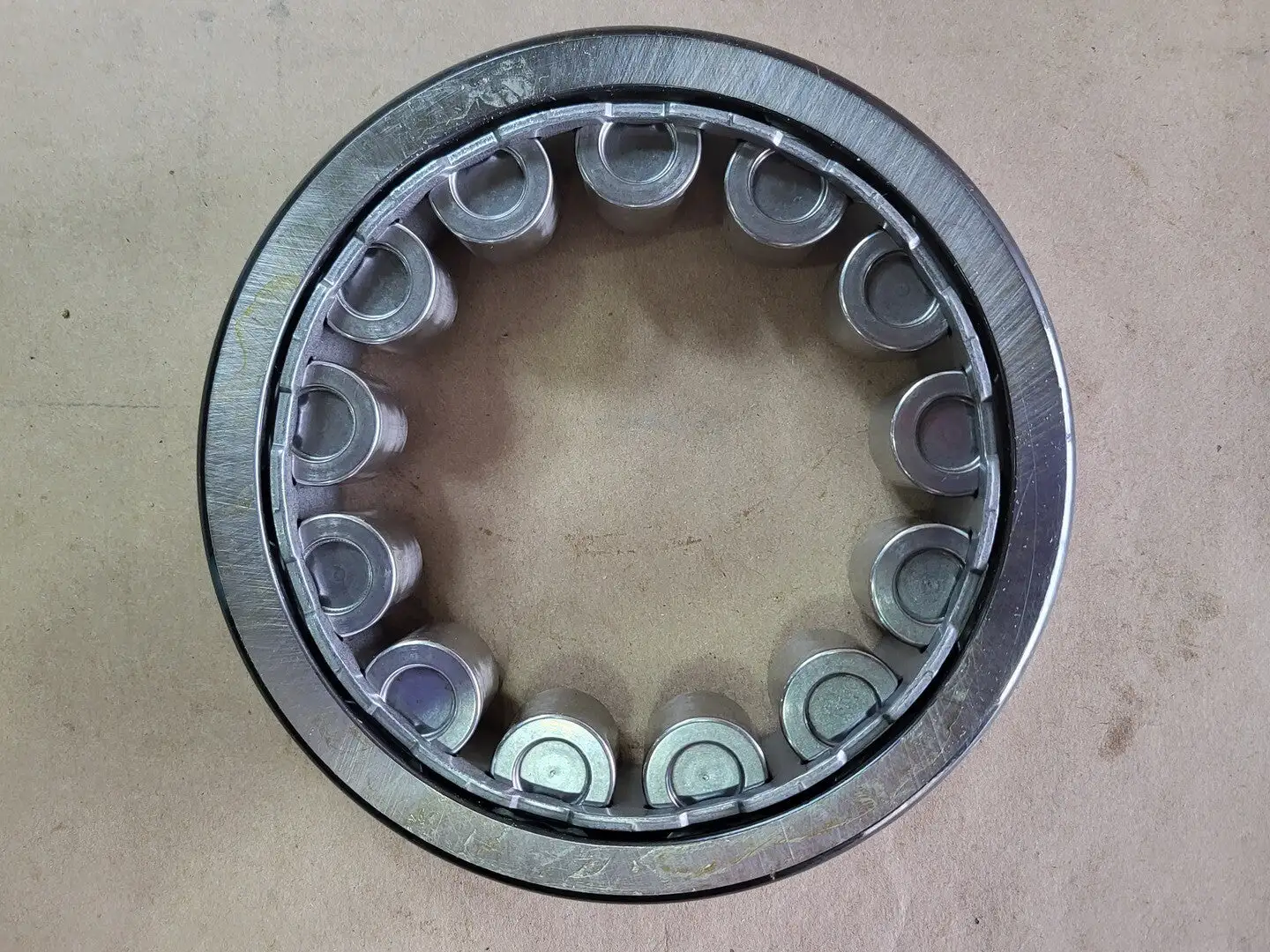

NEW SKF NU 316 ECJ

Bore Size (Metric): 80 mm
Bore Size (Imperial): 3.149 in
Outside Diameter (Metric): 170 mm
Outside Diameter (Imperial): 6.692 in
Snap Ring Included: No
Bearing Type: Cylindrical
Internal Clearance: CN
Bearing Design: Removable Inner Ring-Straight-Double Flanged Outer Ring and Single Flange Inner Ring
Material: Bearing Steel
Enclosure: Open
Series: 3
Tolerance: Iso Class 6 (RBEC 3)
Width: 39 mm
Reference Speed: 4300 rpm
Static Load Rating: 290 kN
Static Load Rating (Max): 65,200.00 lbf
Rolling Element: Roller
Heat Stabilization: 302 deg. fahrenheit
Limiting Speed: 5000 rpm
End Type: Open End
No. of Rows: Single
Precision Rating: ABEC 1
Bore Type: Cylindrical
Dynamic Load Rating: 300 kN
