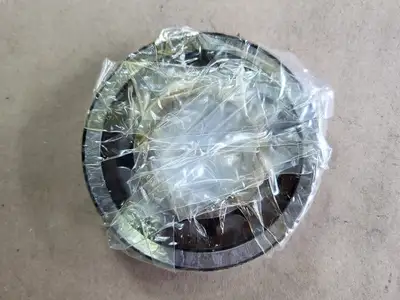

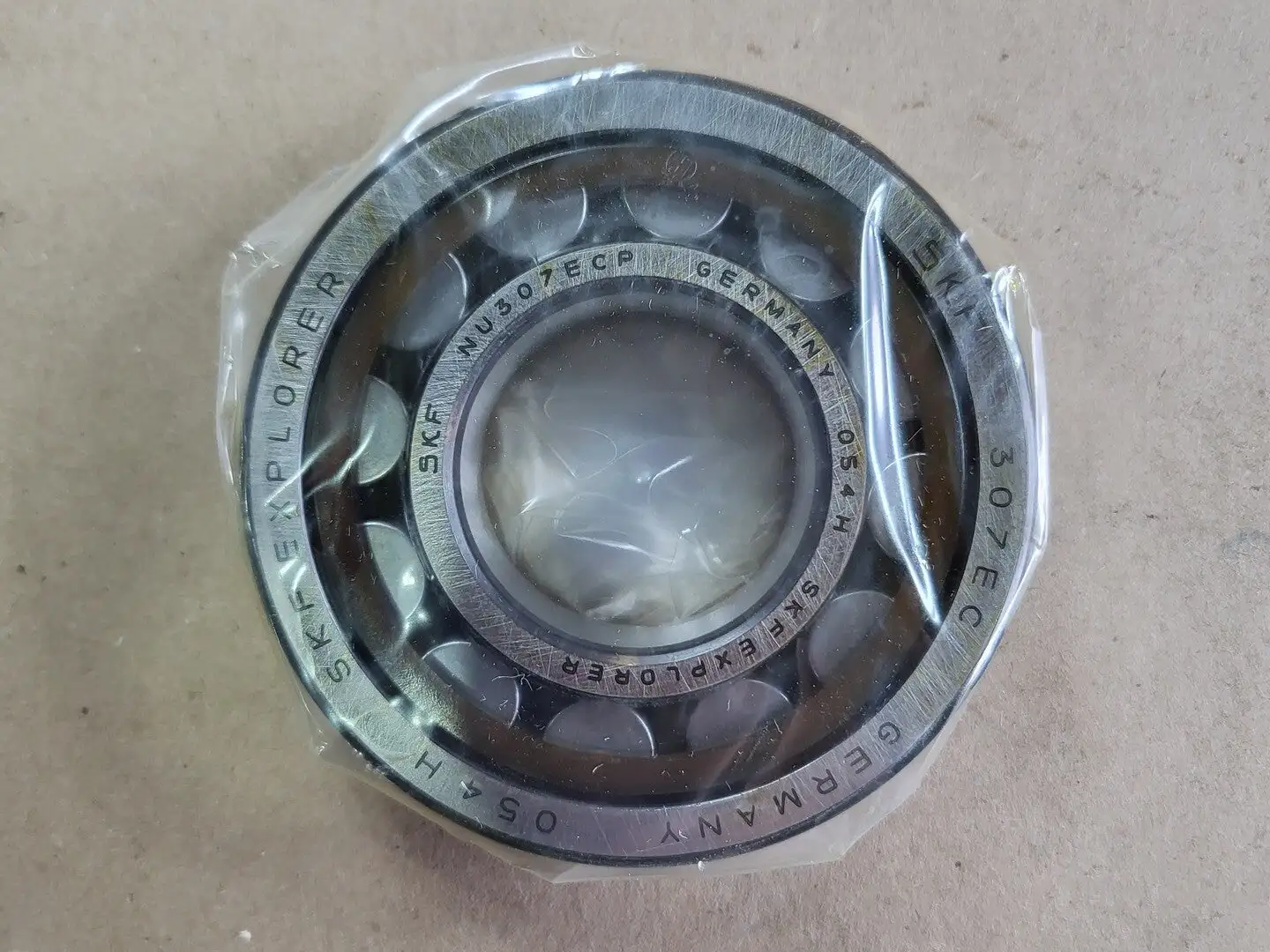

NEW SKF NU 307 ECP

Bore Size (Metric): 35 mm
Bore Size (Imperial): 1.377 in
Outside Diameter (Metric): 80 mm
Outside Diameter (Imperial): 3.149 in
Snap Ring Included: No
Bearing Type: Cylindrical
Internal Clearance: CN
Material: Bearing Steel
Bore Type: Cylindrical
Cage Type: Glass-Fibre Reinforced PA66 Cage
Cage Material: Polyamide
No. of Rows: 1
Precision Class: ABEC 1
Flanges: (2) Outer Ring
Width: 21 mm
Fillet Radius: 1.5 mm
Dynamic Load Rating: 75 kN
Static Load Rating: 63 kN
Fatigue Load Rating: 8.15 kN
Reference Speed: 9500 r/min
Limiting Speed: 11000 r/min
