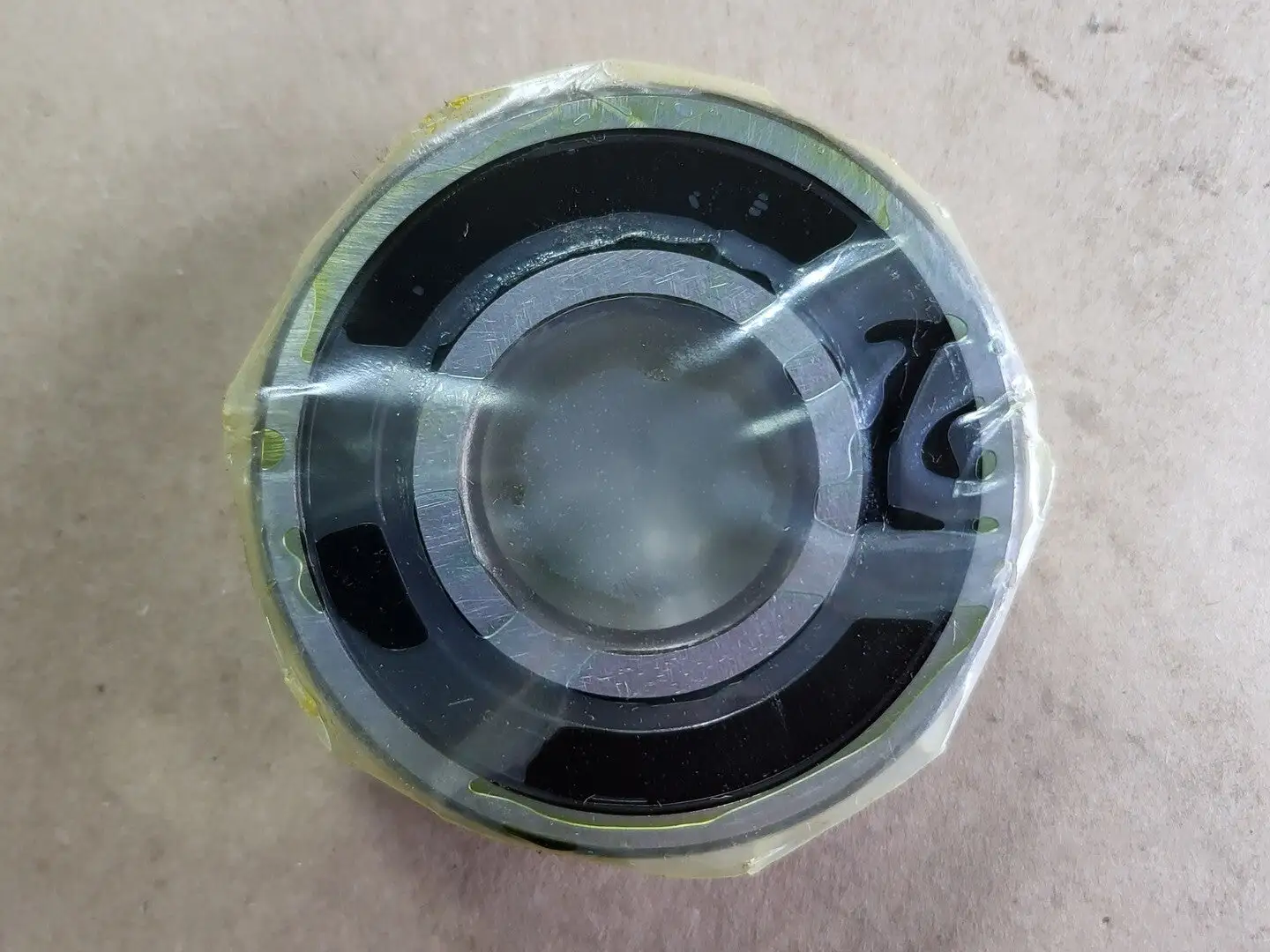

NEW SKF 3305 A-2RS1/C3

Bore Size (Metric): 25 mm
Bore Size (Imperial): 0.984 in
Outside Diameter (Metric): 62 mm
Outside Diameter (Imperial): 2.440 in
Snap Ring Included: No
Bearing Type: Ball
Internal Clearance: C3
Material: Bearing Steel
Bore Type: Straight
Cage Material: Polyamide
No. of Rows: 2
Width: 25.4 mm
Arrangement of Contact Angle: Back-to-Back (O)
Contact Angle: 30 deg.
Sealing Arrangement: Sealing on Both Sides
Sealing Type: Contact Seal
Seal Material: Nitrile Rubber
Fillet Radius: 1 mm
Dynamic Load Rating: 32 kN
Static Load Rating: 20.4 kN
Fatigue Load Rating: 0.865 kN
Limiting Speed: 7500 r/min
