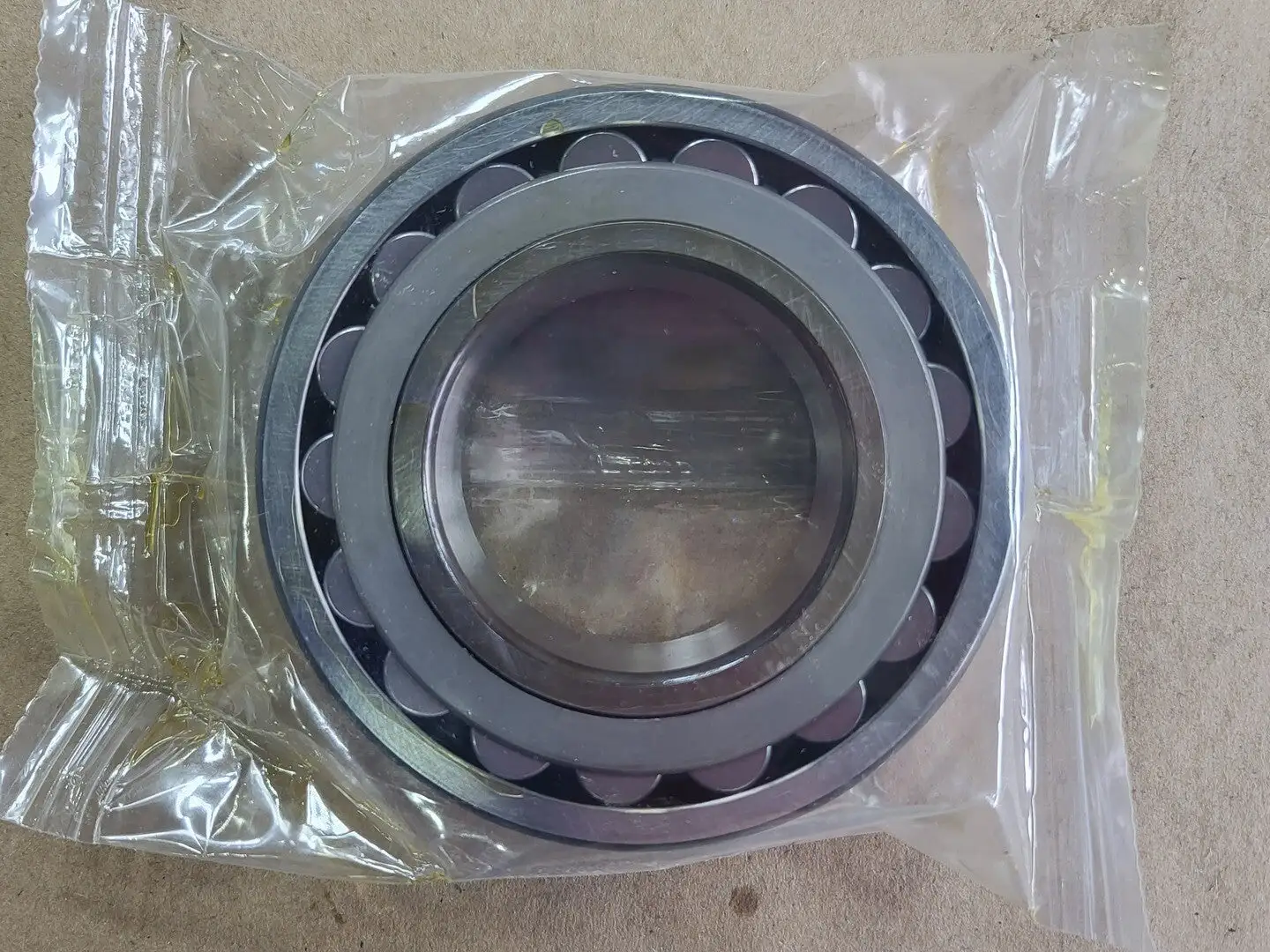

NEW SKF 22209 E/C3

Bore Size (Metric): 45 mm
Bore Size (Imperial): 1.771 in
Outside Diameter (Metric): 85 mm
Outside Diameter (Imperial): 3.346 in
Snap Ring Included: No
Bearing Type: Spherical
Internal Clearance: C3
Material: Bearing Steel
Bore Type: Cylindrical
Cage Type: Sheet Metal
No. of Rows: 2
Width: 23 mm
Precision Class: ABEC 1
Fillet Radius: 1.00 mm
Series: 222
Dynamic Load Rating: 102 kN
Static Load Rating: 98 kN
Fatigue Load Rating: 10.8 kN
Reference Speed: 75000 r/min
Limiting Speed: 10000 r/min
