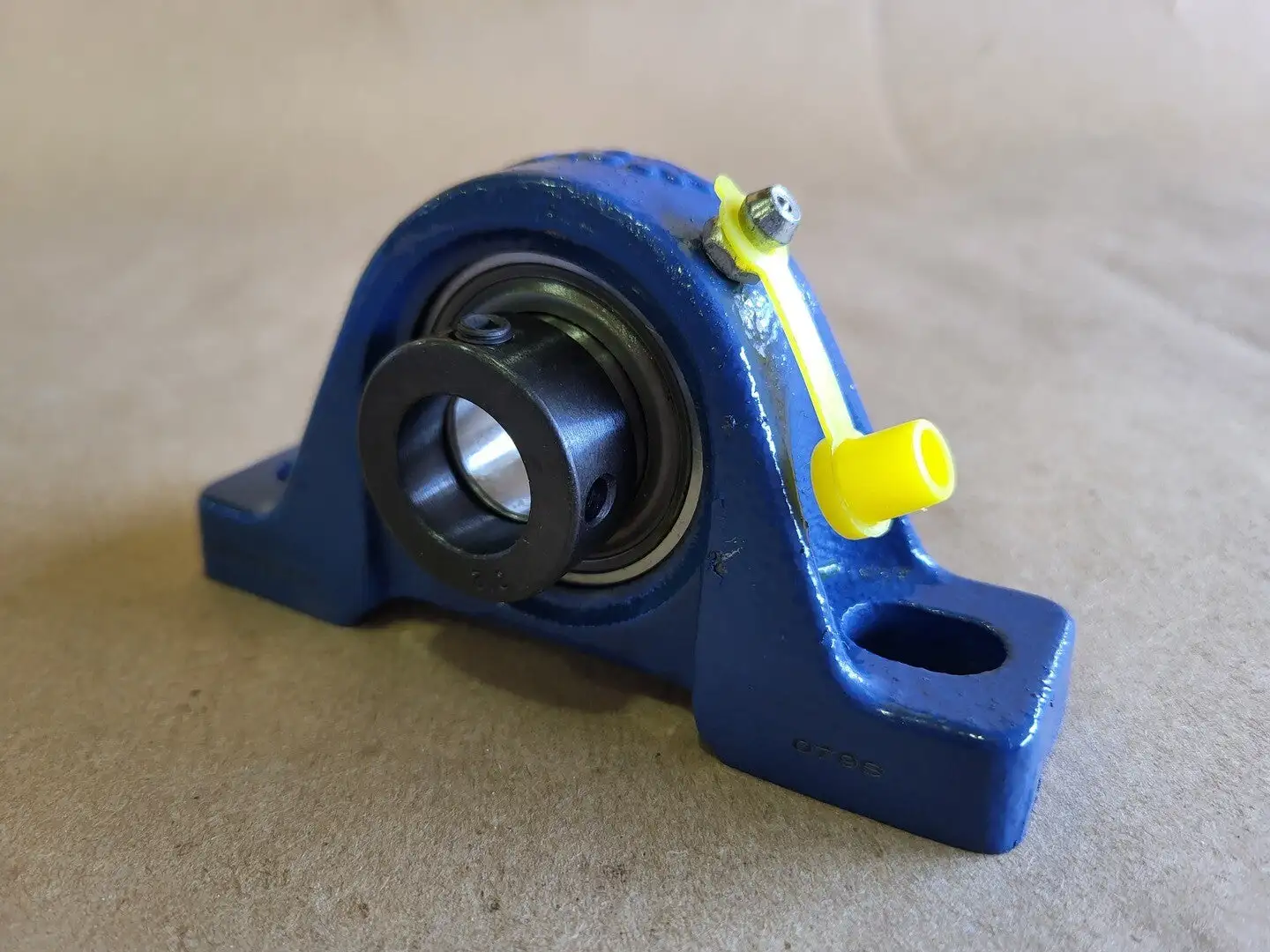

NEW SKF P2B 012-FM

Type: Pillow Block
Height: 64.29 mm
Outside Length: 127 mm
Base to Bore Centerline: 33.34 mm
Distance Between Bolts: 95.25 mm
Housing Compatible Bore Diameter: 19.05 mm
Properties
Number of bolt holes for fasteners: 2
Fastening bolt hole type: Plain
Retaining feature, inner ring: Eccentric collar
Bore type: Cylindrical
Rubber seating ring: Without
Material, housing: Cast iron
Material, bearing: Bearing steel
Coating: Without
Sealing, bearing: Seal on both sides
Sealing type: Contact, standard
Sealing, unit: Without
Lubricant: Grease
Relubrication hole: With
Grease fitting: With
Performance
Basic dynamic load rating: 12.7 kN
Basic static load rating: 6.55 kN
Limiting speed: 8 500 r/min
Note: Limiting speed with shaft tolerance h6
