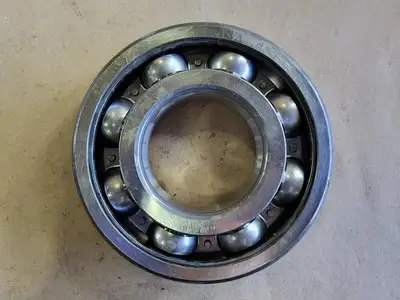

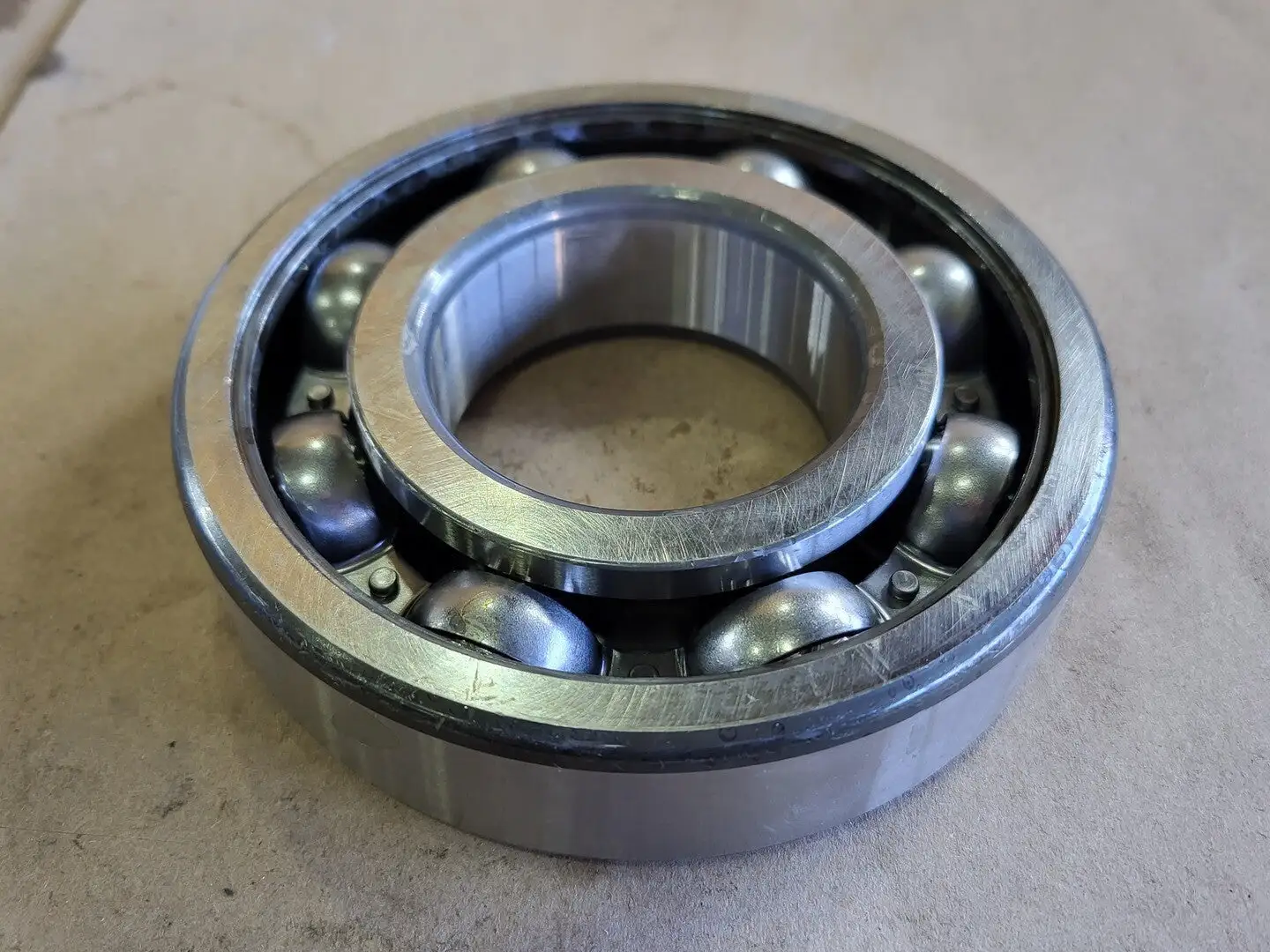

NEW SKF 6312-Z/C3

Bore Size (Metric): 60 mm
Bore Size (Imperial): 2.362 in
Outside Diameter (Metric): 130 mm
Outside Diameter (Imperial): 5.118 in
Snap Ring Included: No
Bearing Type: Ball
Internal Clearance: C3
Bore Type: Straight
Overall Width: 31 mm
Closure Type: Double Shielded
Bearing Material: Bearing Steel
Cage Material: Bearing Steel
Cage Type: Sheet Metal
Element Material: Bearing Steel
Fillet Radius: 2.1 mm
Maximum Speed: 11,000 rpm
Operating Temperature Range: -40 to 212 deg. F
Precision Rating: ABEC 1
Radial Dynamic Load Capacity: 19,154 lbf
Radial Static Load Capacity: 11,690 lbf
Seal Material: Tinplate
Series: 63
