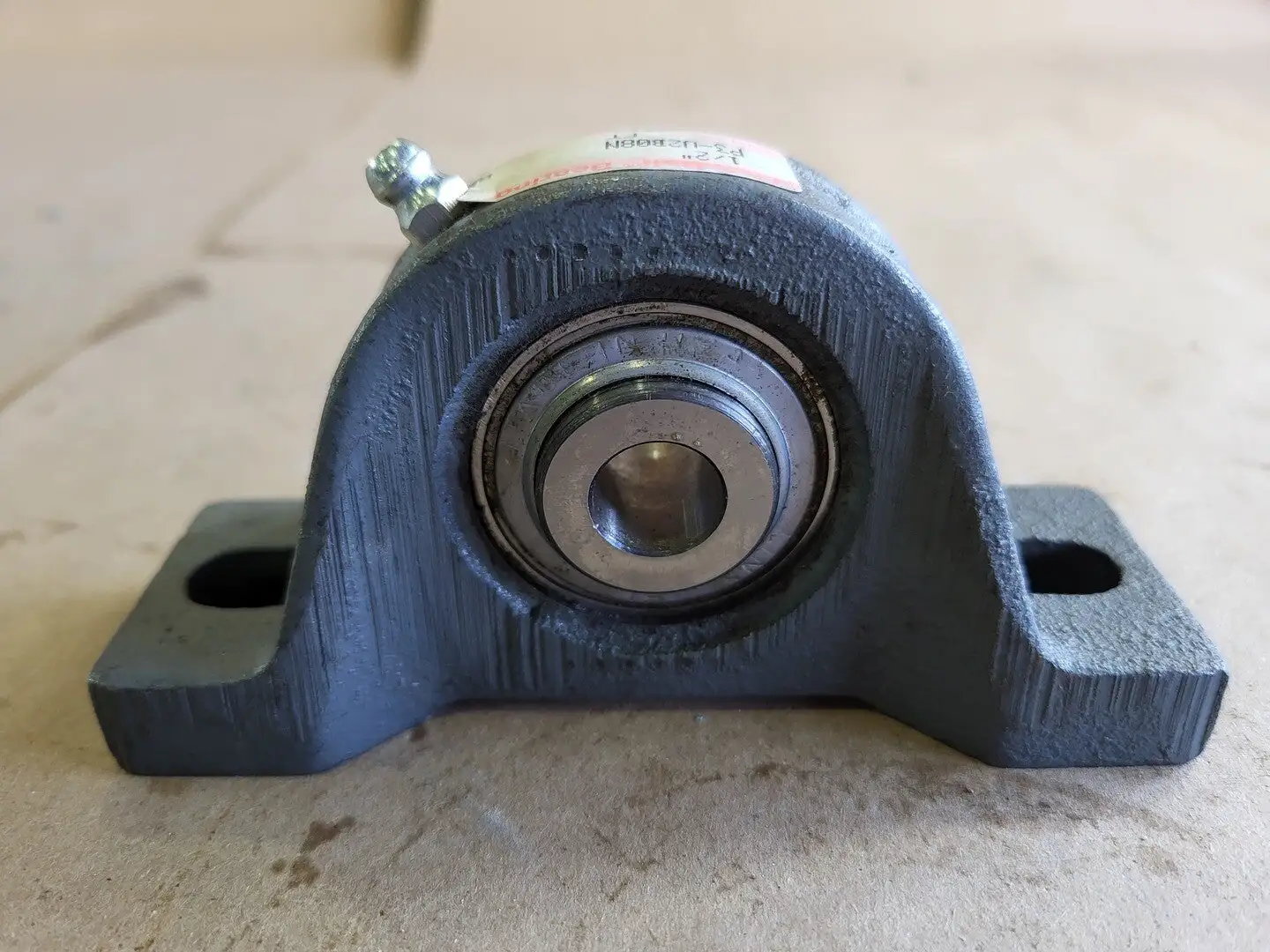

NEW LINK-BELT P3U2B08N

Type: Pillow Block
Height: 2.3438 in.
Outside Length: 4.6250 in.
Base to Bore Centerline: 1.1875 in.
Distance Between Bolts: 3.5000 in.
Mounting Type: 2-Bolt Base
Bore Type: Round
Bore Diameter: 1/2 in.
Duty Type: Standard Type
Locking Device: Set Screw
Seal Type: Contact/ Lip
Housing Material: Cast Iron
Expansion Type: Non-Expansion Bearing (fixed)
Base Width: 1-1/2"
Overall Width: 1.0938 in.
Radial Dynamic Load Capacity: 1820 lbf
Radial Static Load Capacity: 1110 lbf
Maximum Speed: 9000 rpm
Series: 200
