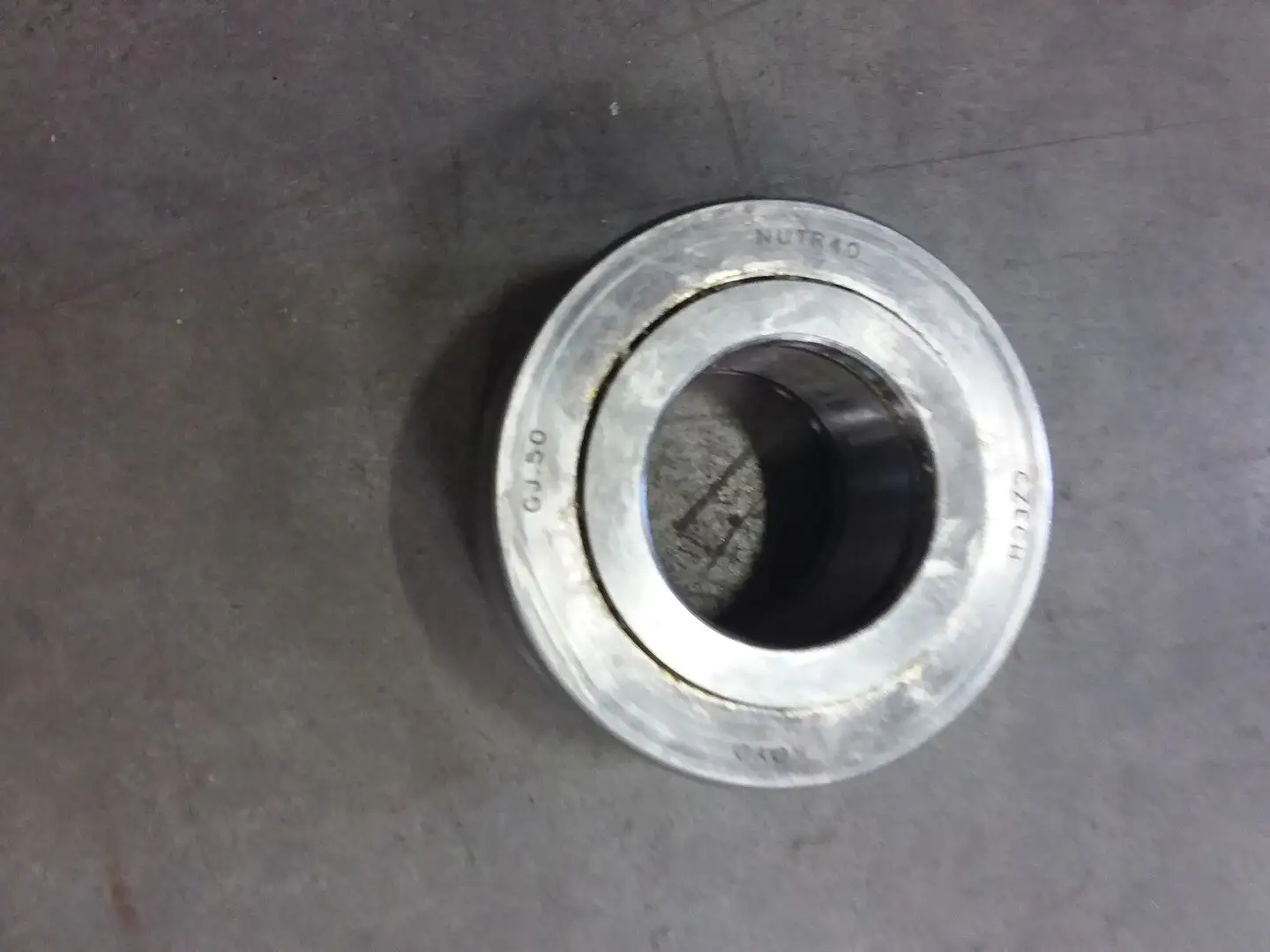

NEW INA NUTR40-A

Bore Size (Metric): 40 mm
Bore Size (Imperial): 1.5748 in
Outside Diameter (Metric): 80 mm
Outside Diameter (Imperial): 3.1496 in
Bearing Type: Roller
Width: 1.2598 in.
Width, Outer Ring: 1.1811 in.
Bearing Part: Complete Track Roller
Rolling Element: Cylindical Rollers
Number of Rows: 2
Outer Ring Profile: Crowned
Axial Guidance of Outer Ring: Yes
Number of Flanges , Outer Ring: 2
Cage: No
Radial Internal Clearance: Between C2 and CN
Material: Bearing Steel
Sealing: Seal on both sides
Sealing Type: Labyrinth
Lubricant: Grease
Basic Dynamic Load Rating: 12859 lbf
Basic Static Load Rating: 16186 lbf
Limiting Speed: 1800 r/min
