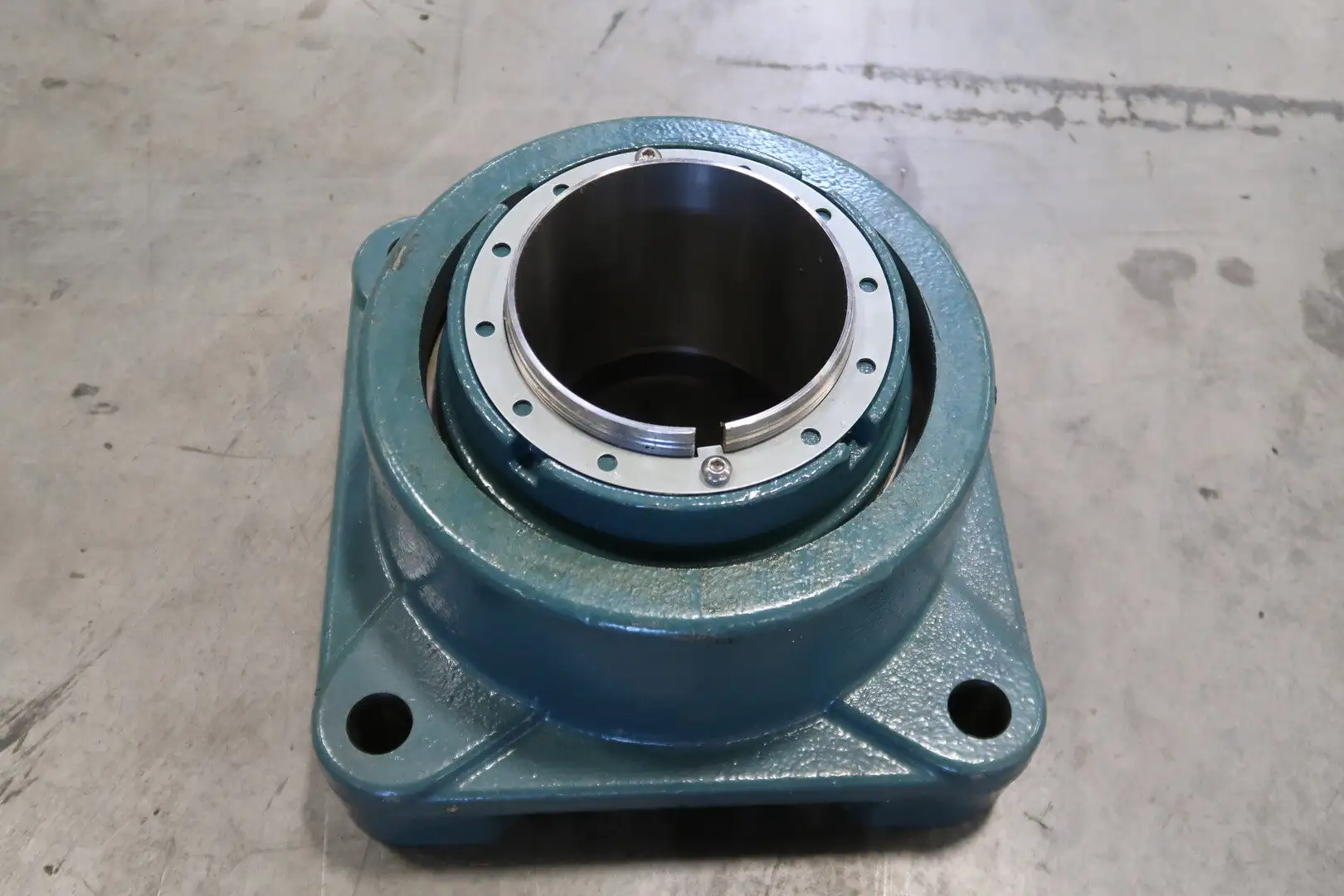

NEW DODGE EF4B-IP-408RE

Bore Size (Imperial): 4-1/2 in
Bearing Type: Roller
Mounting Type: 4-Bolt Flange
Housing Material: Cast iron
Locking Device: Adapter Mounted
Expansion Type: Expansion Bearing (Floating)
Housing Construction: Solid
Type of Bearing: Spherical Roller
Seal Type: Triple-Lip Contact Seal
Insert Material: Steel
Bore Length: 5.23 in.
Dynamic Load Capacity: 104000 lbf
Housing Type: 4-Bolt Flange
Maximum Speed: 1325 rpm
Static Load Capacity: 132000 lbf
Shaft Attachment: Push-Pull Adapter
Insert Outer Diameter: 200 mm
