Used condition. Features 19.68" X, 14.96" Y, 11.81" Z travels, 5.5 kW power, 8,000 RPM, and BT-30 taper. Includes Fanuc 16-iM CNC control, 14-position ATC, CNC 4th Axis Rotary Table, and Renishaw tool sensing light.
| X | 19.68" | 499.87 mm |
| Y | 14.96" | 379.98 mm |
| Z | 11.81" | 299.97 mm |
| Power | 5.5 kW | 7.4 hp |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 14 | 14 |
| Taper | BT-30 | BT-30 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 3750 LBS | 3750 LBS |
Spindle Nose to Table, Maximum 17.71"
Spindle Nose to Table, Minimum 5.9"
Spindle Taper #BT-30
Working Feedrate, X, Y, & Z-Axes 590 IPM
Rapid Traverse Rates, X, Y, & Z-Axis' 1889 IPM
Fanuc 16-iM CNC Control
14-Position Automatic Tool Changer

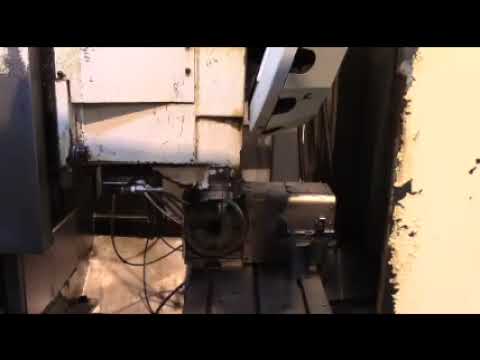

Nikken (Model NSVZ180FA) CNC 4th Axis Rotary Indexing Table
Renishaw Tool Sensing Light
