NEW COLLINS 2

Body Material: 316 Stainless Steel
Filter Elements:-
Type: Membrane or Stainless Steel
Pore Size: 0.5 Microns
Total Filter Surface: 126 Sq. Cm.
Element Material: Depends on Application
Internal Volume:-
Bypass Side: 160 Cu.cm
Analyzer Sample: 10 Cu. Cm
Recommended Flow Rates - Liquid:-
Bypass Stream: 3 to 6 GPM minimum, 11.36 to 22.71 Liters/minute, 681 to 1363 liters/hour, 180 to 360 gallons/hour
Analyzer Sample: 275 Cu. Cm./min., 0.275 liters/minute, .073 gallons/minute, 16.5 liters/hour, 4.36 gallons/hour
Recommended Flow Rates:-
Bypass Stream: 0.5 to 2 CFM, 14,158 cc/min to 56,633 cc/min, 14.16 liter/min. to 56.63 liter/min, 849.5 liter/hr. to 3,398 liter/hr.
Analyzer Sample: To .5 CFM, 14,158 cu. cm./minute, 14.16 liter/minute, 849 liter/hour
Pressure Tested to: 2500 psig
Maximum Temperature: Depends on elements and "O" rings used, Standard: 120 deg. C (250 deg. F)
Process Connections: 3/8" FPT
Analyzer Connections: 1/4" Tube Available

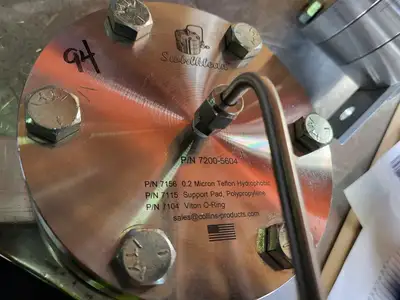

Part Number: 7200-5604
P/N: 7156, 0.2 micron teflon hydrophobic
P/N: 7115, support pad, polypropylene
P/N: 7104, viton o-ring
