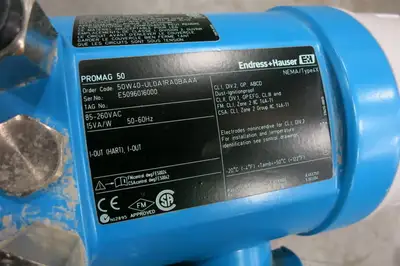

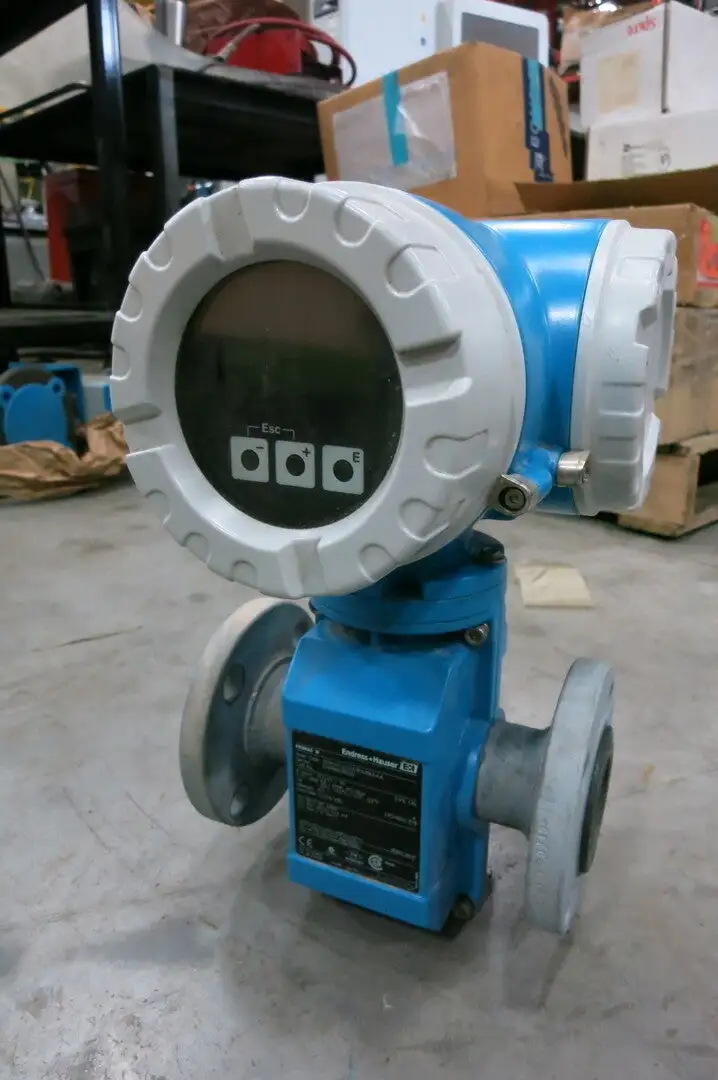

NEW ENDRESS+HAUSER PROMAG 50

Maximum Measurement Error: +/- 0.5% +/-0.2% (optional)
Measuring Range: 0...110'000 m3/h
Medium Temperature Range: -20 deg. C - 80 deg. C
Maximum Process Pressure: PN6...40 CI 150...300 JIS 10...20K AWWA Class D AS 2129 Table E AS 4087 PN16
Measuring Principle: Electromagnetic
Nominal Diameter Range: DN 25...2000, 1...78"
Degree of Protection: IP 67 (NEMA 4X), IP 68 (NEMA 6P)
Display/Operation: Two line display with backlit, Push Button
Outputs: 4...20 mA, Pulse/Frequency, Status
Inputs: Status
Digital Communication: HART PROFIBUS PA/DP
