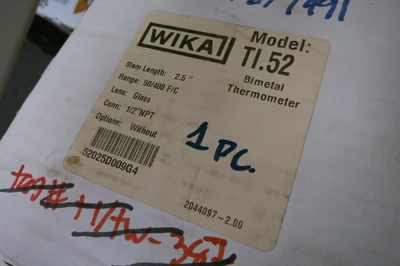

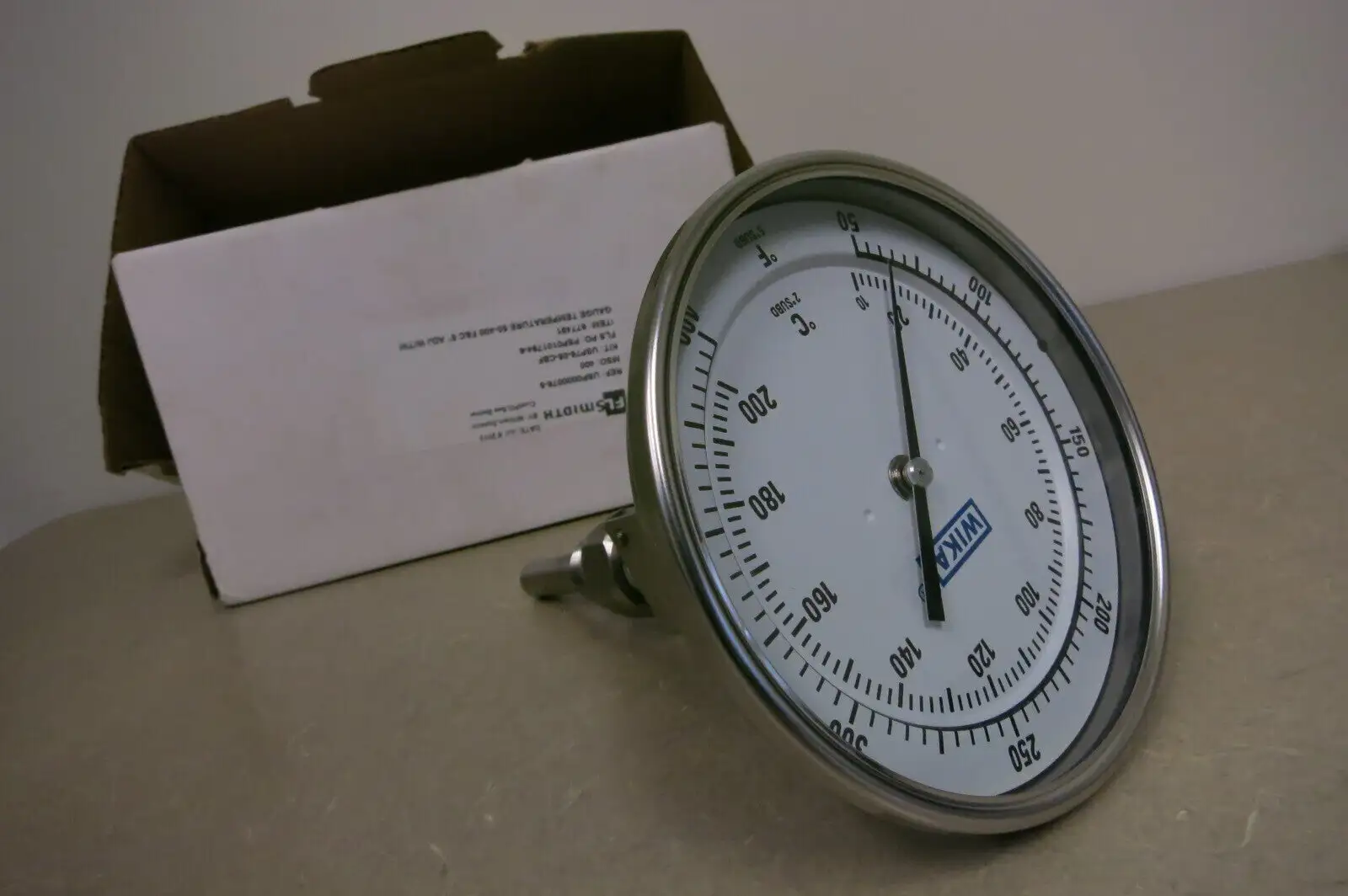

NEW WIKA TI.52

Size: 5" (127mm)
Accuracy: +1.0% full scale value per ASME B40.3 Grade A
Ranges:
From -100 deg. (70 deg. C) F to 1000 deg. F (540 deg. C)
From -50 deg. C to 550 deg. C (as single scale)
Working Range:
Steady: full scale value
Short Time: 110% of full scale value
Over/Under Range Protection:
/- +500 deg. F (+260 deg. C): Continuous to 800 deg. F (+427 deg. C), Intermittant up to 1000 deg. F (+538 deg. C)
Connection:
Material: 304 stainless steel, Adjustable angle, 1/2" NPT
Stem:
Material: 304 stainless steel
Diameter: 1/4" (6.35 mm)
Length: 2-1/2" to 72" (63.5 mm to 1,828.8 mm)
Measuring Element: Bi-metal helix
Dial: White Aluminum, dished, with black markings
Case:
Material: 304 stainless steel, Hermetically sealed per ASME B40.3 standard
Weather Protection: NEMA 4X (IP 66), External reset slotted hex head on back of case
Pointer: Black Aluminum
Standard Scales:
Single: Fahrenheit or Celsius
Dual: Fahrenheit (outer) and Celsius (inner)
Window Gasket: Neoprene, Silicone for ranges -100 deg. F (-70 deg. C) and ranges >+550 deg. F (+260deg. C)
Dampening: Inert gel to minimize pointer oscillation
