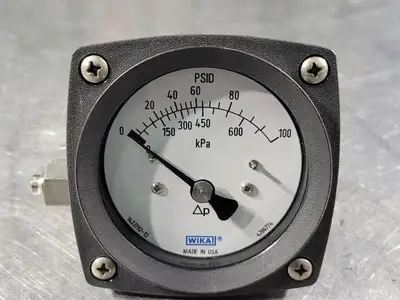

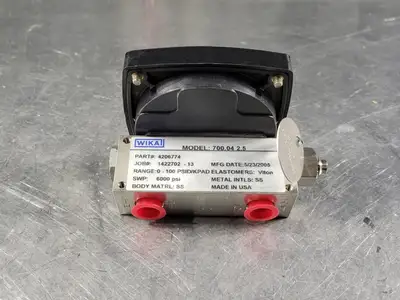

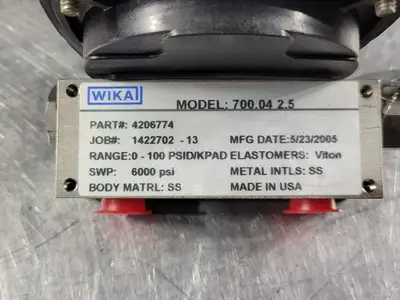

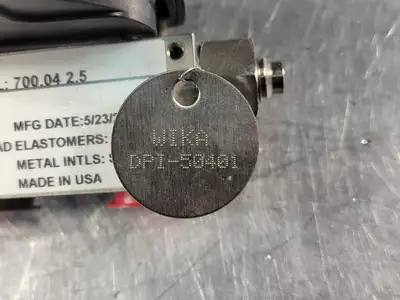

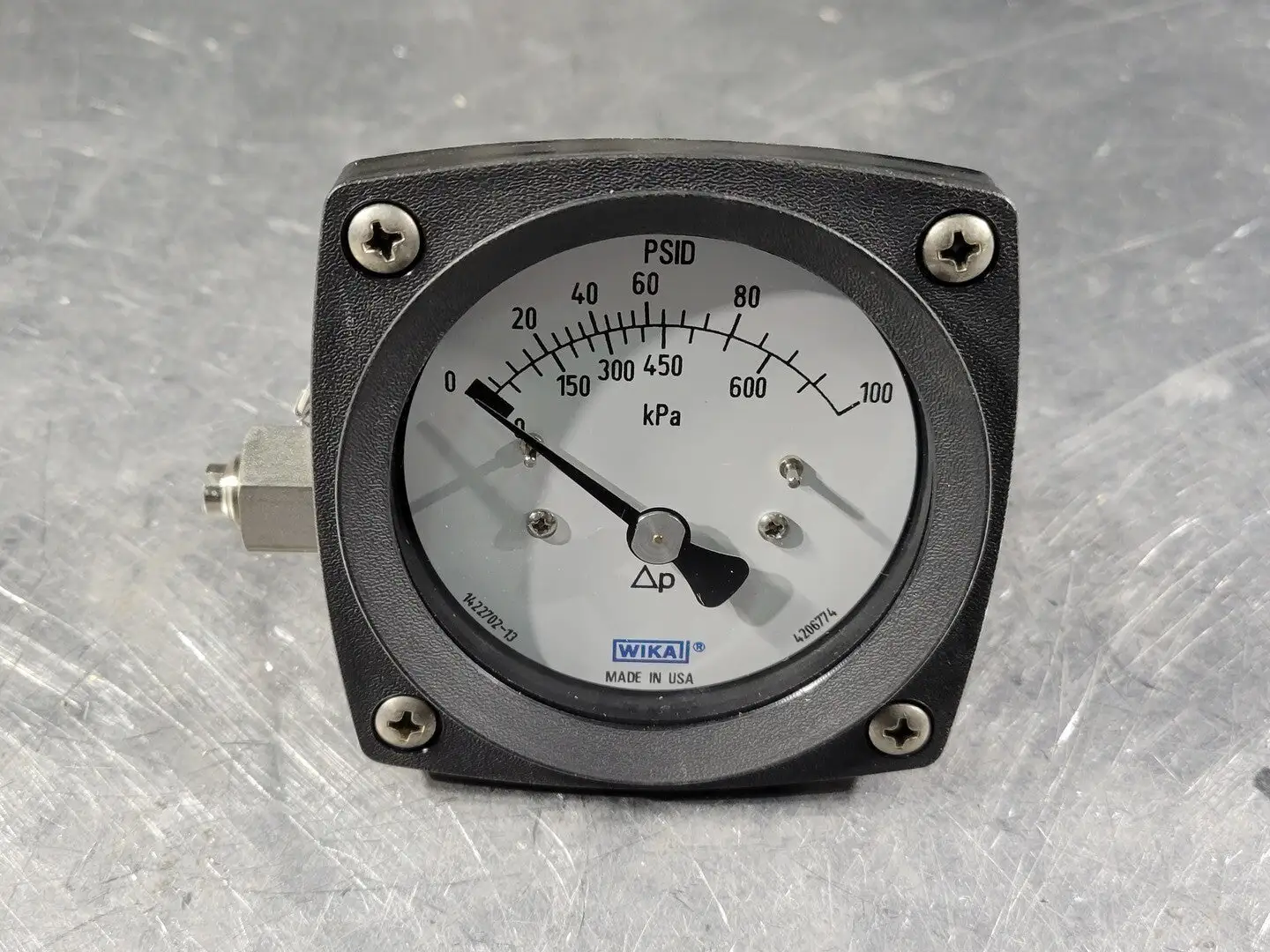

NEW WIKA 700.04

Gauge Type: Pressure
Filling: Dry
Pressure Rating: 100
Size: 2-1/2"
Thread Size: 1/4"
Nominal Size: 2-1/2"
Accuracy: -/+2% of span (on increasing pressure)
Scale Range: 0/5 psid through 0/100 psid (0/350 mbard through 0/7 bard)
Maximum Working Pressure: 6000 psig (400 barg)
Operating Temperature: -40 deg. F to 200 deg. F (Ambient, Media)
Weather Protection: NEMA 4X
Pressure Connections:-
Standard: 1/4" NPT female, back connection
Optional: 1/2" NPT female, back connection, with adapters
Sensing Element, Internal Wetted Parts: Ceramic magnet and 316 SS
Sensor Block: Black anodized aluminum - standard, 316 SS - optional
Elastomers (O-rings): Viton- standard, Buna N or Ethylene propylene- optional
Case & Bezel: Fiberglass reinforced thermoplastic
Dial: White aluminum with black lettering
Pointer: Black aluminum
Window: Acrylic- standard, Laminated Safety glass- optional
