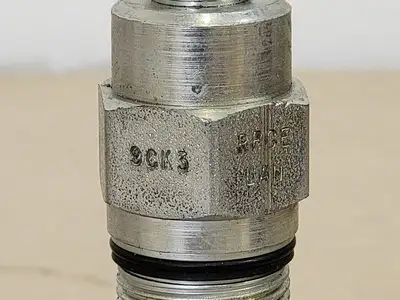

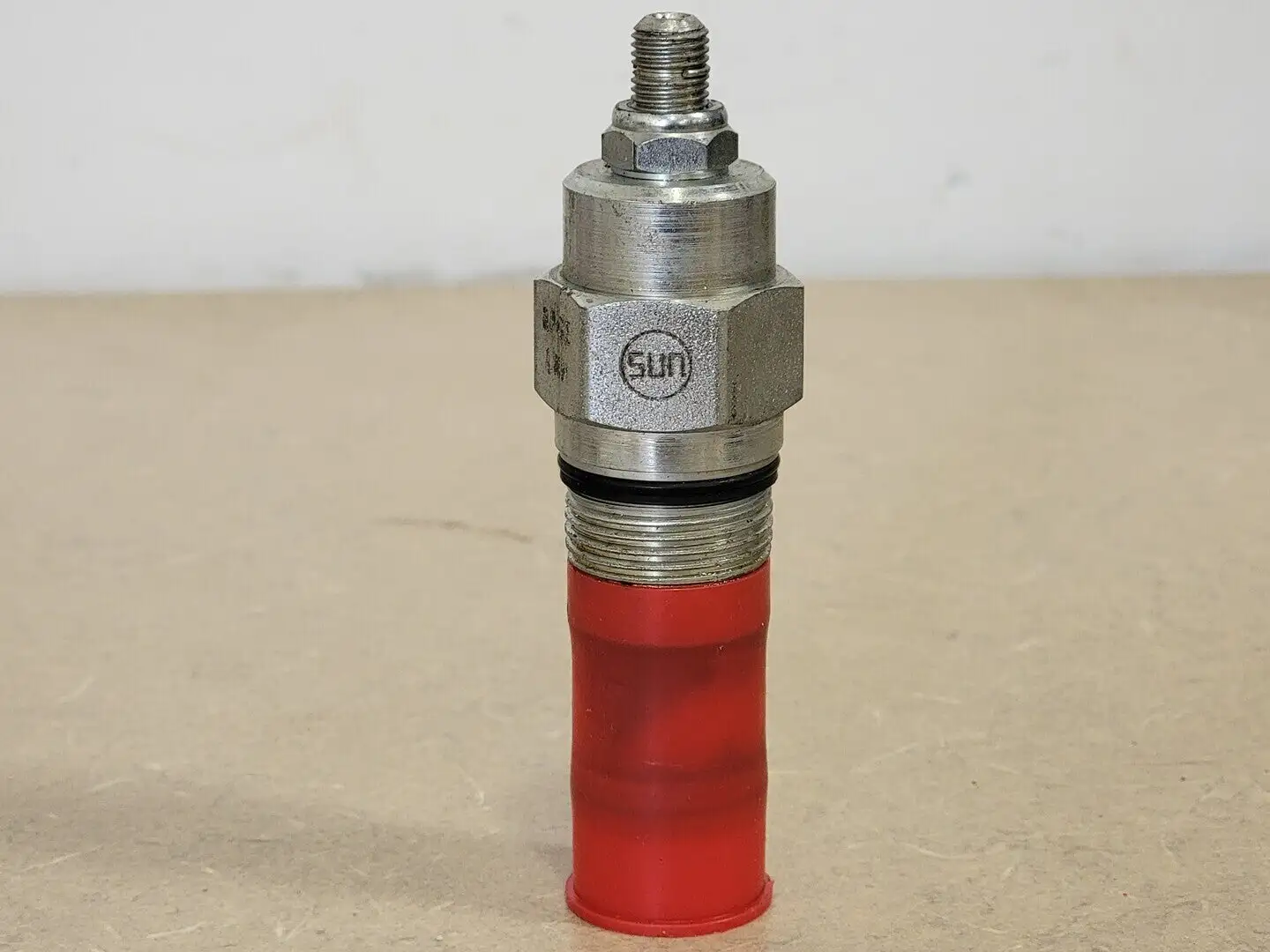

USED SUN HYDRAULICS RPGE-LAN
Specs
Max. Pressure: 5000 psi
Cavity: T-3A
Series: 2
Capacity: 50 gpm
Maximum Operating Pressure: 5000 psi
Factory Pressure Settings Established at: 4 gpm
Maximum Valve Leakage at 110 SUS (24 cSt): 3 in3/min.@1000 psi
Response Time - Typical: 2 ms
Adjustment - No. of CW Turns from Min. to Max. setting: 5
Valve Hex Size: 1 1/8 in.
Valve Installation Torque: 45 - 50 lbf ft
Adjustment Screw Internal Hex Size: 5/32 in.
Locknut Hex Size: 9/16 in.
Locknut Torque: 80 - 90 lbf in.
Control: Standard Screw Adjustment
Adjustment Range: 100 - 3000 psi
Seal Material: Buna-N
