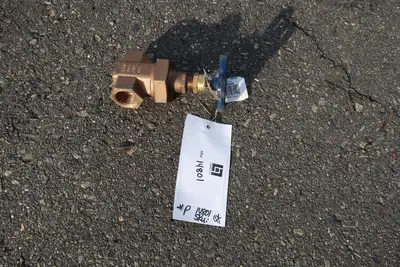

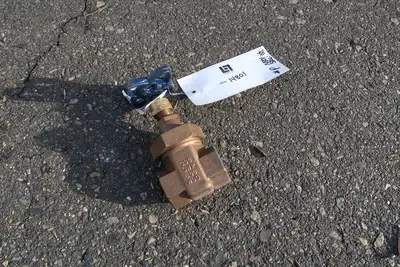

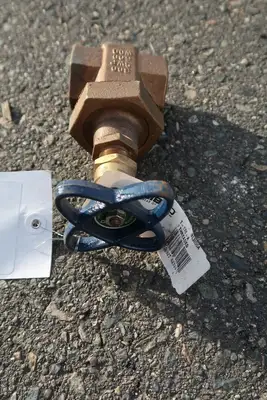

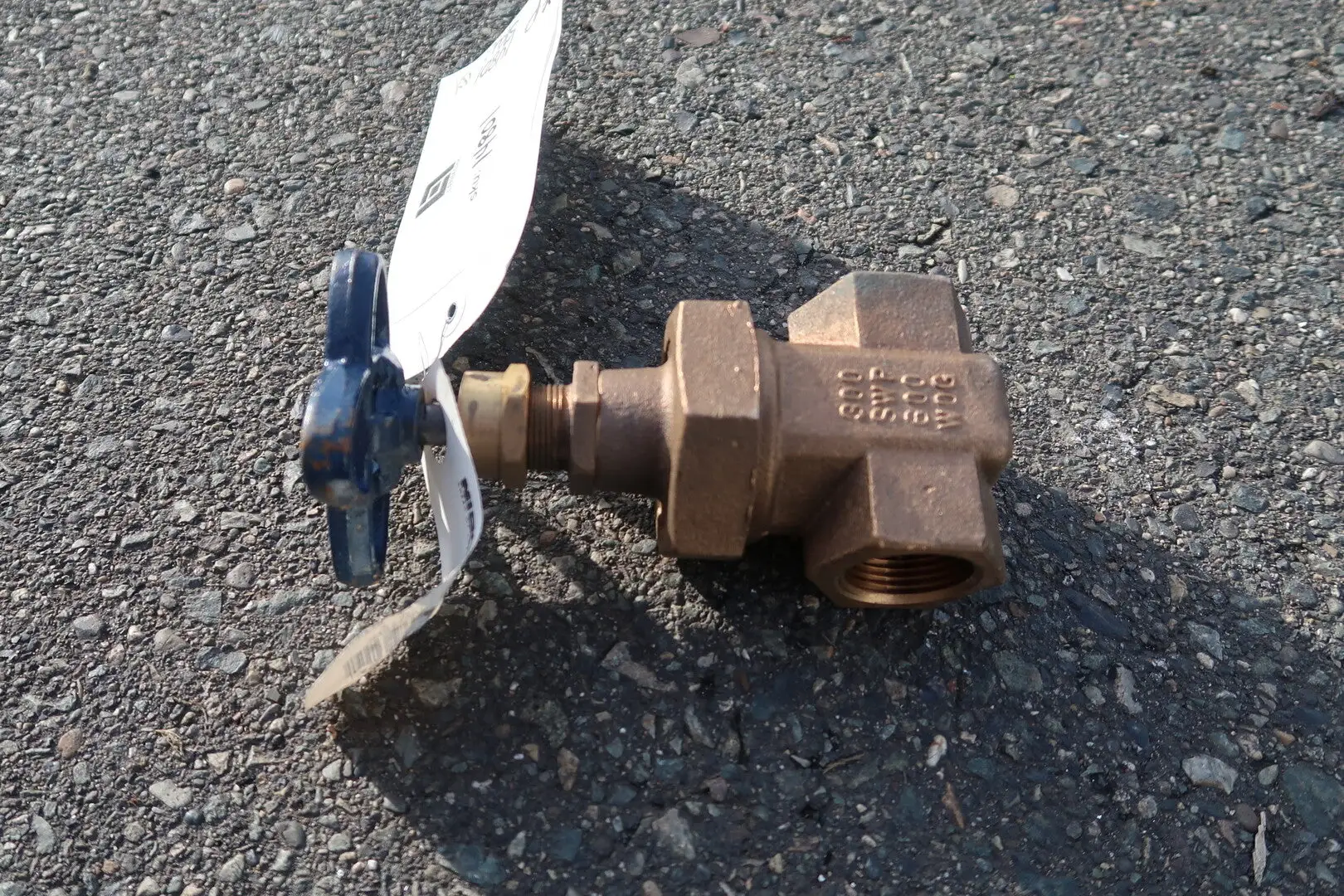

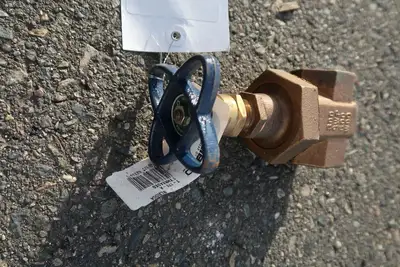

USED NIBCO T-176-A

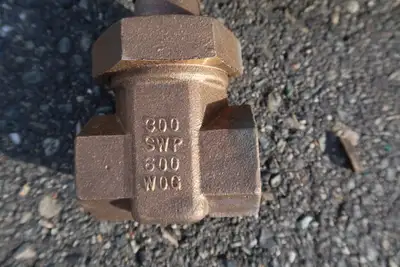

Class: 600 WOG
Valve Style: Gate
Connection Ends: Threaded
Type: Gate Valve, Non-Rising Stem (NRS)
Body Material: Bronze
Pattern: Block Pattern with Union Bonnet (allows in-line reparability)
Connection: Female NPT threaded ends
Trim Material: Silicon bronze
Actuator: Standard Handwheel

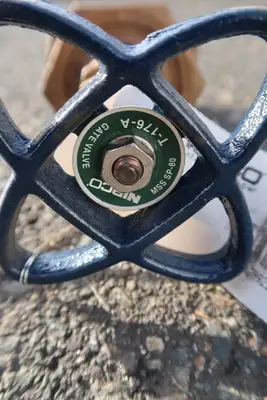

Standard: MSS SP-80 compliant
Pressure Class: 300 lb
Cold Working Pressure: 600 psi (41.4 bar) non-shock
Steam Rating: 300 psi (20.7 bar) saturated steam up to 421 deg. F (216 deg. C)
