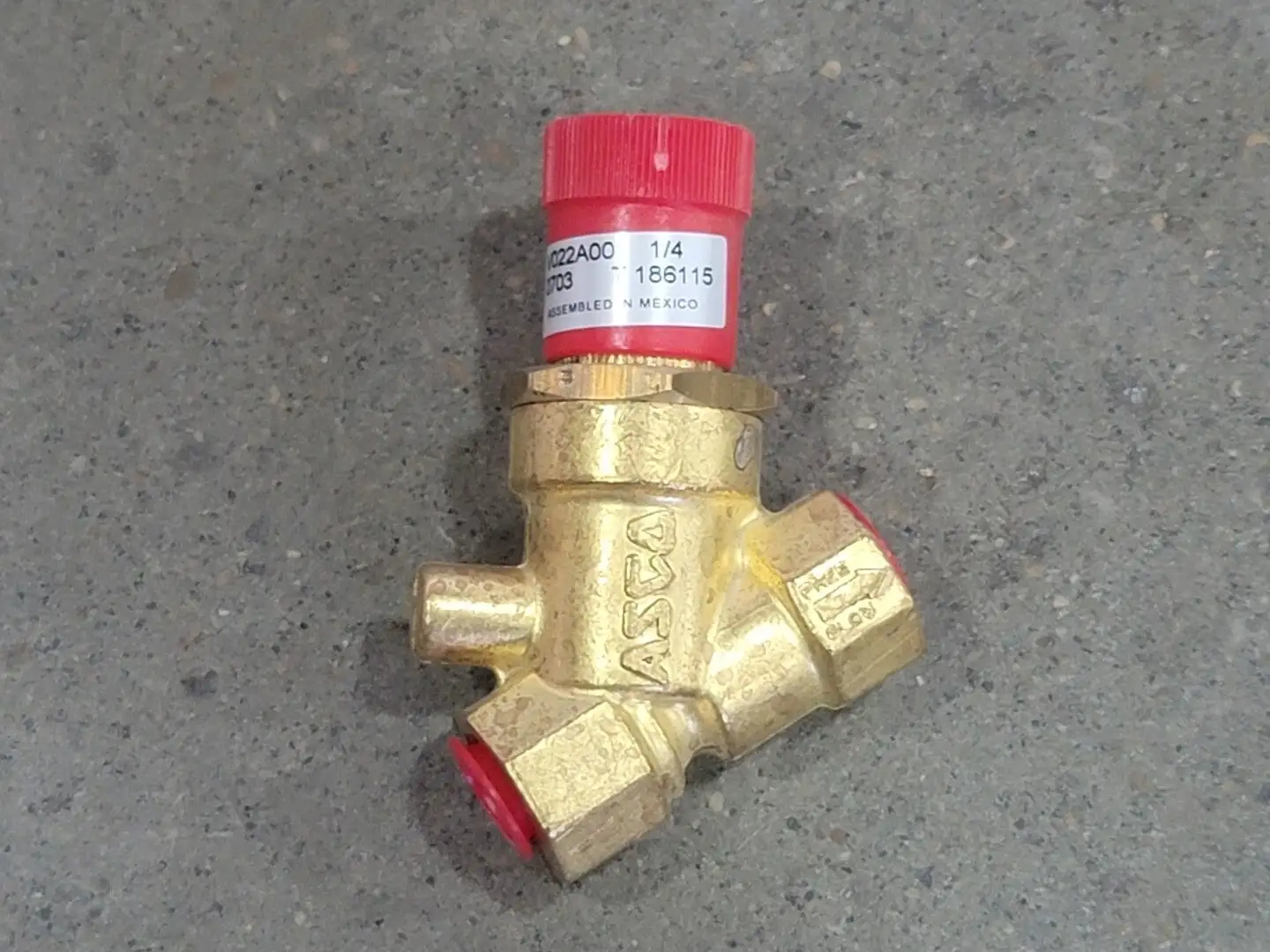

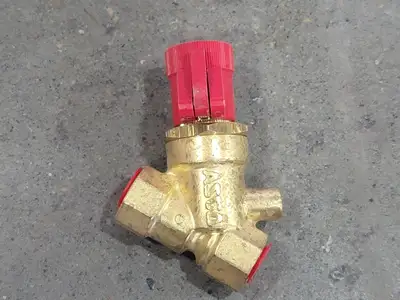

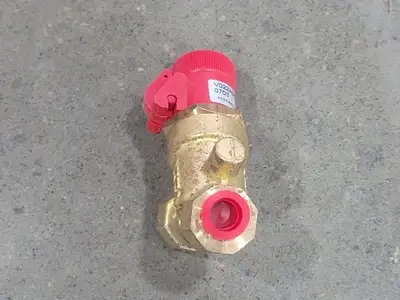

USED ASCO V022A001

Orifice Size: 3/8 in.
Pipe Size: 1/4"
Max Fluid Temp. 180 deg. F
Body Material: Brass
Seal Material: NBR
Spring: 302 Stainless Steel
Retainer: 17-7PH Stainless Steel
Meter Flow: 0.22 Cv (0.2 KV)
Free Flow: 1.2 Cv (1 KV)
Opening Pressure: 1 psi (0.07 bar)
Maximum Operating Pressure (Air-Inert Gas, Water, and Light Oil): 125 psi (8.6 bar)
Maximum Fluid Temperature: 180 deg. C (82 deg. C)
