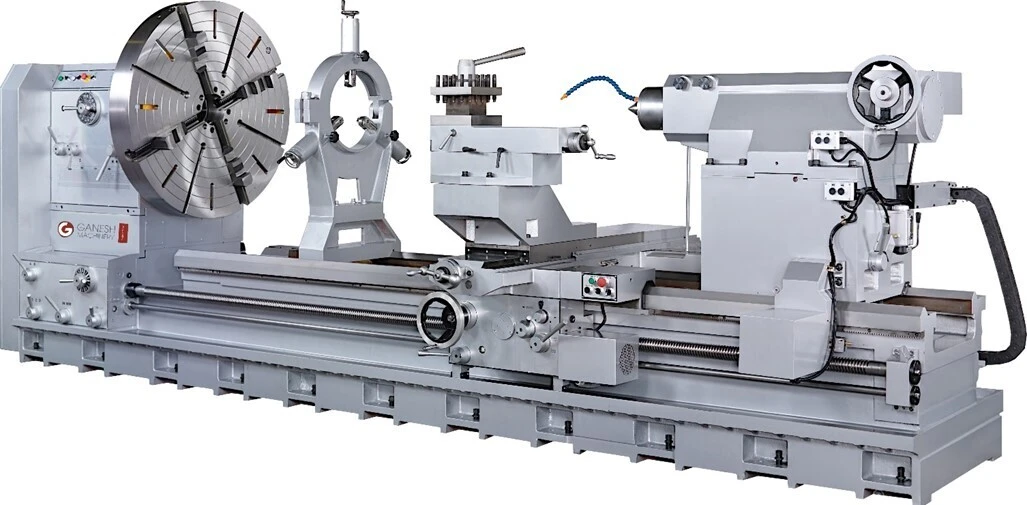

NEW 2024 GANESH GTD-44HK

Illinois, United States
Your Partners in productivity. 520 Machinery Sales specializes in new and used machine tools sales.
Overview
Engine Lathes

New. More options and pricing in documents link above.

Specs
Swing
44"
1,117.6 mm
Centers
60"
1,524 mm
Spindle Bore
6"
152.4 mm
Power
40 hp
29.8 kW
RPM
0 RPM
0 RPM
Swing Over Cross Slide
27.95"
709.93 mm
Dimensions
164” x 85” x 63”,
164” x 85” x 63”,
Weight
19500
19500
Equipped With

40-Horsepower Spindle Motor / 6” bore Standard
Cross & Longitudinal Rapid Feed Motor
15.74” Steady Rest w/ Roller Bearings (60-400mm range)
Quill Taper Reduction Sleeve & Dead Center
LED Work Light (55 Watts)
Full-length Back Splashguard
Safety Chuck Guard with Interlock
4-way tool post 40x40mm & wrench
