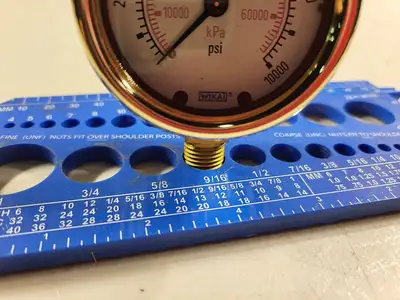

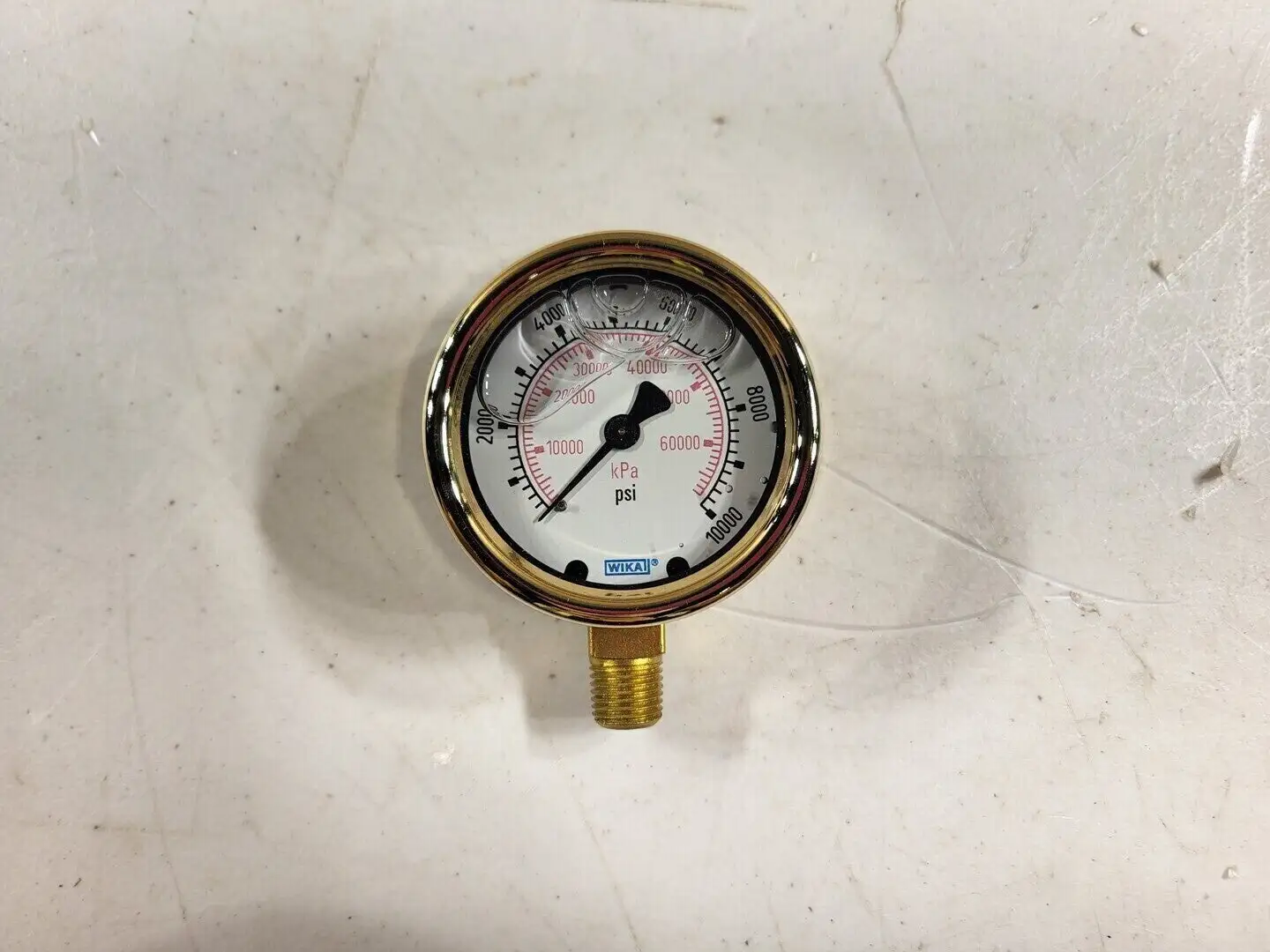

NEW WIKA 8544751

Gauge Type: Pressure
Filling: Liquid
Pressure Rating: 10000 psi
Size: 2-1/2"
Thread Size: 1/4"
Design: ASME B40.100 & EN 837-1
Size: 2.5"
Accuracy Class: +/-2-1/2% of span (ASME B40.100 Grade A)
Ranges: 0 to 10000 psi (0 to 60000 kPa)
Working Pressure:-
Steady: 3/4 scale value
Fluctuating: 2/3 full scale value
Short Time: full scale value
Operating Temperature:-
Ambient: -4 deg. F to 140 deg. F (-20 deg. C to 60 deg. C) Glycerine and Silicone filled
Medium: max 140 deg. F (60 deg. C)
Enclosure: Weather tight (NEMA 4X/IP)
Pressure Connection: Lower Mount (LM) or Center Back Mount (CBM) 1/4" NPT or 1/2" NPT limited to wrench flat area
Material: Copper Alloy
Temperature Error: Additional error when temperature changes from reference temperature of 68 deg. F (20 deg. C) +/-0.4% of span for every 18 deg. F rising or falling
Bourdon Tube: <870 psi (60 bar): C-shape copper alloy, >870 psi (60 bar): Helical copper alloy
Dial: White aluminum with black lettering, 2-1/2" with stop pin
Pointer: Black Aluminum
Case: Gold-Painted forged brass with integral connection and vent plug
Bezel Ring: Gold-Plated ABS cover ring
Window: Acrylic with Buna-N gasket
Case Fill: Glycerine 99.7%
