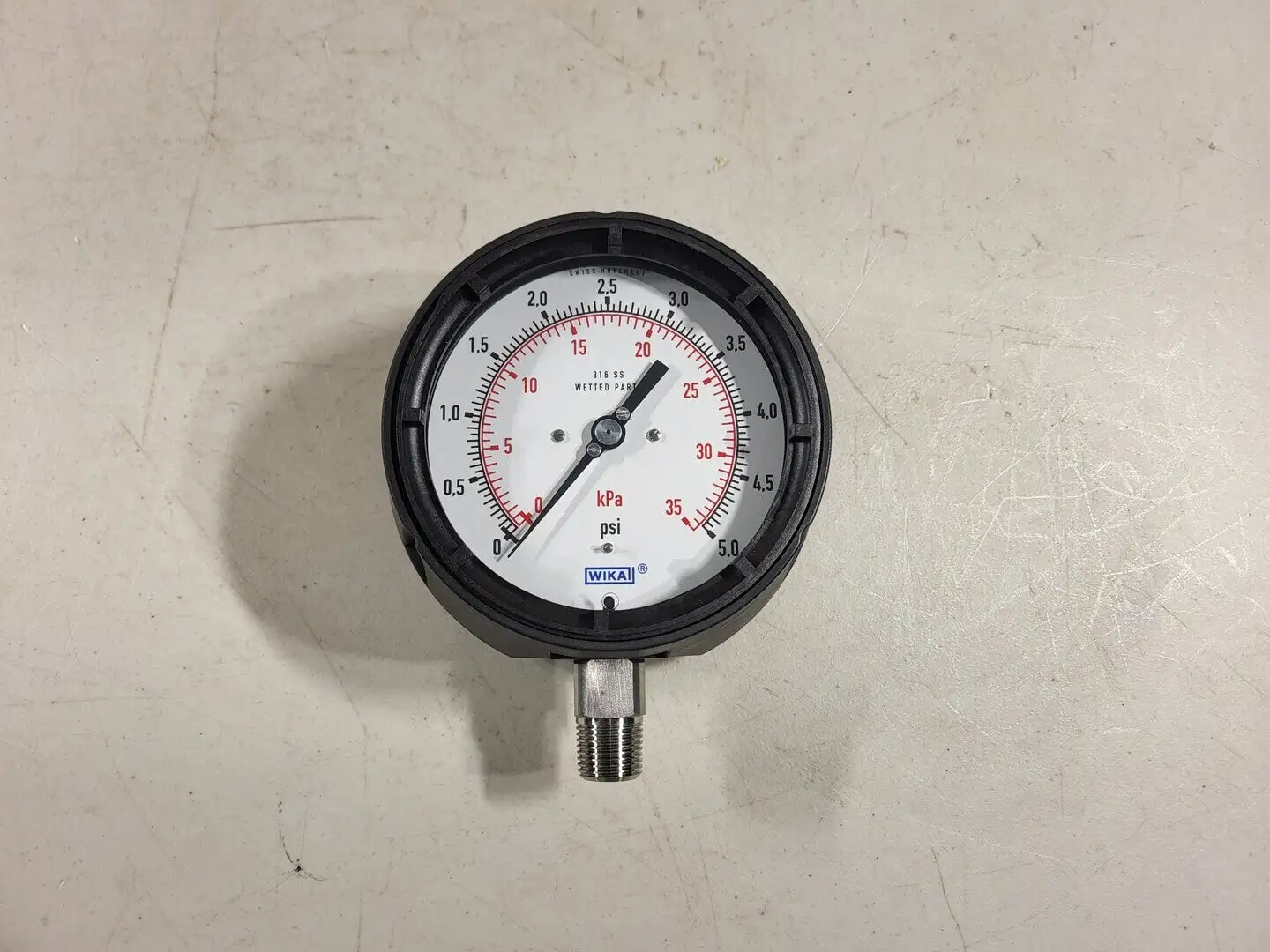

NEW WIKA 632.34
Overview
Specifications
Gauge Type: Pressure
Filling: Dry
Pressure Rating: 0-5 psi
Size: 4.5"

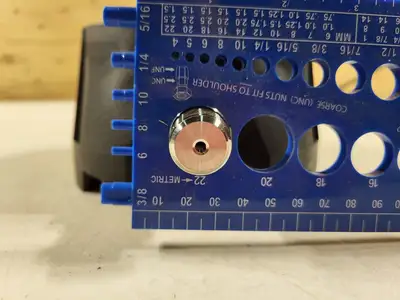

Thread Size: 1/2" NPT
Design: ASME B40.100
Accuracy Class: +/-2/12% of span (ASME B40.100 Grade A)
Ranges: 6X2.34: 10" H2O to 250" H2O (600 mbar) or other equivalent units of pressure or vacuum
Working Pressure: Steady - Full scale value; Fluctuating - 0.9 x full scale value
Operating Temperature: Ambient: -4 deg. F to 140 deg. F; Medium: 212 deg. F
Weather Protection: Weather resistant (NEMA 3/IP54)
Pressure Connection: 316L SS, Lower Mount, 1/2" NPT
Capsule Element: 316L SS
Movement: Stainless Steel

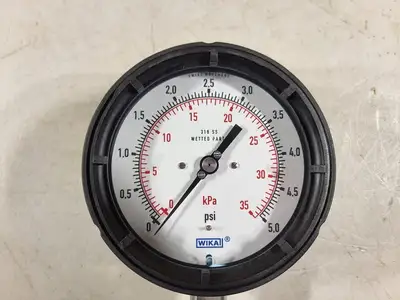

Dial: White aluminum with black lettering, stop pin at 6 o' clock
Pointer: Black aluminum, adjustable
Case: Black- fiberglass reinforced thermoplastic (POCAN), Solid front/blowout back safety case design, Turret style case with built in rear flange lugs
Window: Clear acrylic with Buna-N gasket
