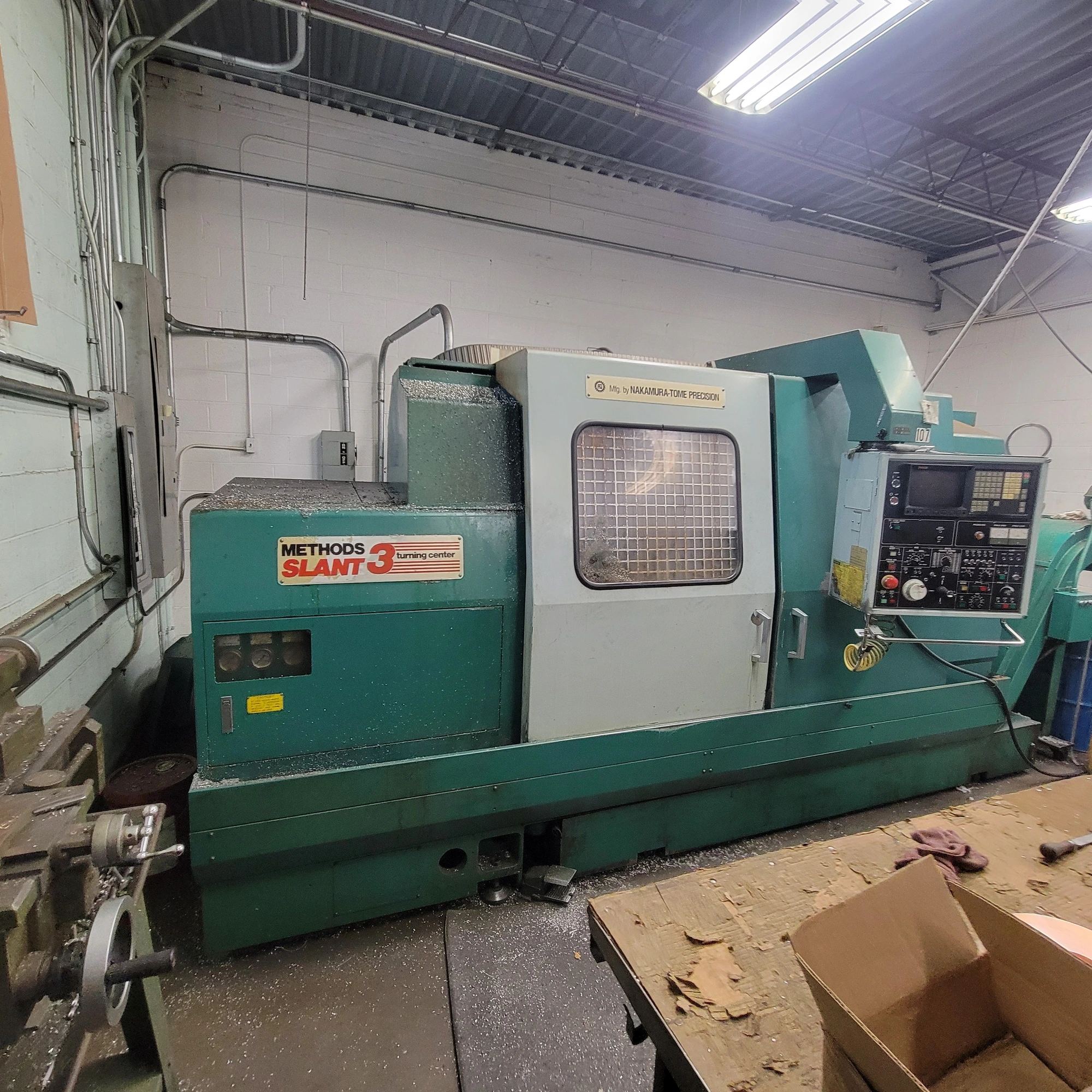

NAKAMURA-TOME SLANT 3BSL used CNC lathe offers 27.16" swing, 24" machining length, 2-axis operation, 10" chuck size, 2.5" bar capacity, 25 hp power, 3,500 max RPM, 15.57" turning diameter, and features a tailstock and chip conveyor.
| Live Tooling | No | No |
| Y-Axis | No | No |
| Sub Spindle | No | No |
| Swing | 27.16" | 689.86 mm |
| Machining Length | 24" | 609.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 15.57" | 395.48 mm |
| Tailstock | Yes | Yes |
| Barfeed | No | No |
| Control | CNC (FANUC) | CNC (FANUC) |
| Dimensions | 120"x69"x80" | 120"x69"x80" |
| Weight | 12,500lb | 12,500lb |
10" Chuck
Chip Conveyor
