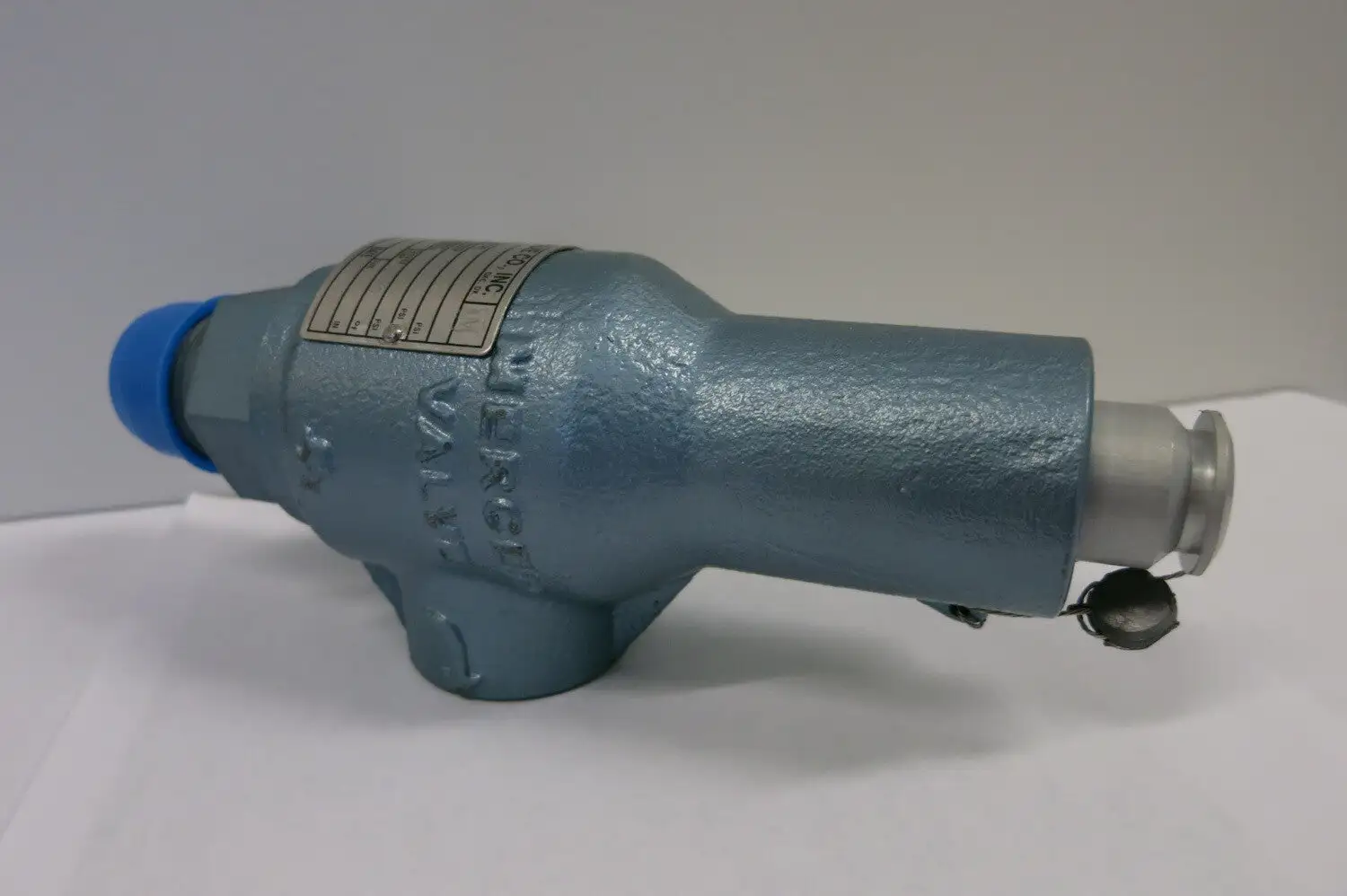

USED MERCER 91-17E51T07L1

Diameter: 1"
Valve Style: Pressure Relief
Body: WCB Carbon Steel
Inlet and Outlet Connection Type (17): 1" MNPT x 1" FNPT
Actual Orifice Area (E): 0.212 in2
Inlet Base & Body Material (5): Carbon Steel / WCB Carbon Steel
Cap Type (1): Closed Cap
Seat Material (T): PTFE
Spring Code (07):
Trim (L): 316 S.S. Disk & Nozzle (Liquid Service)
O-Ring Material (1): FKM & BUNA-N (Standard)
Actual Orifice Diameter: 0.520 in
API Orifice Area: 0.196 in2
Pressure Range: 10-3000 psig
Standard Temperature Range: -20 deg. F to 400 deg. F
ASME Flow Coefficient Kd (Gas): 0.818
ASME Flow Coefficient Kd (Liquid): 0.717
