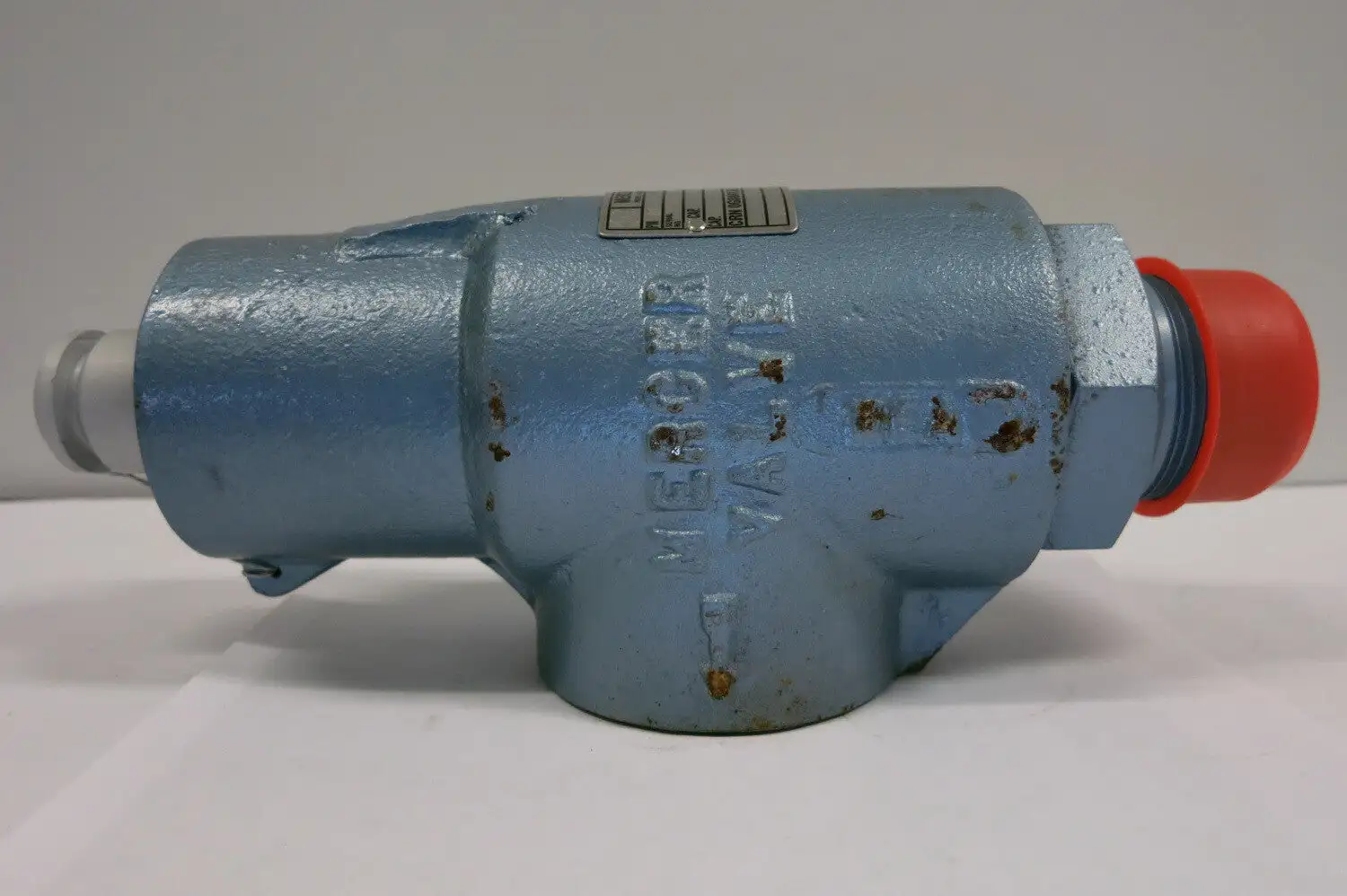

USED 2011 MERCER 91-34F51T09L1

Diameter: 1-1/2"
Valve Style: Pressure Relief
Body: WCB Carbon Steel
Standard Inlet Size: 1-1/2"
Inlet and Outlet Connection Type: 1-1/2" MNPT x 1-1/2" FNPT
Actual Orifice Diameter: 0.655 in
Actual Orifice Area: 0.337 in2
API Orifice Area: 0.307 in2
Pressure Range: 15-2400 psig
Standard Temperature Range: -20 deg. F to 400 deg. F
ASME Flow Coefficient Kd (Gas): 0.818
ASME Flow Coefficient Kd (Liquid): 0.707
Inlet Base & Body Material: Carbon Steel / WCB Carbon Steel
Cap Type: Closed Cap
Seat Material: PTFE
Spring Code: 09
Trim: 316 S.S. Disk & Nozzle (Liquid Service)
O-Ring Material: FKM & BUNA-N (Standard)
