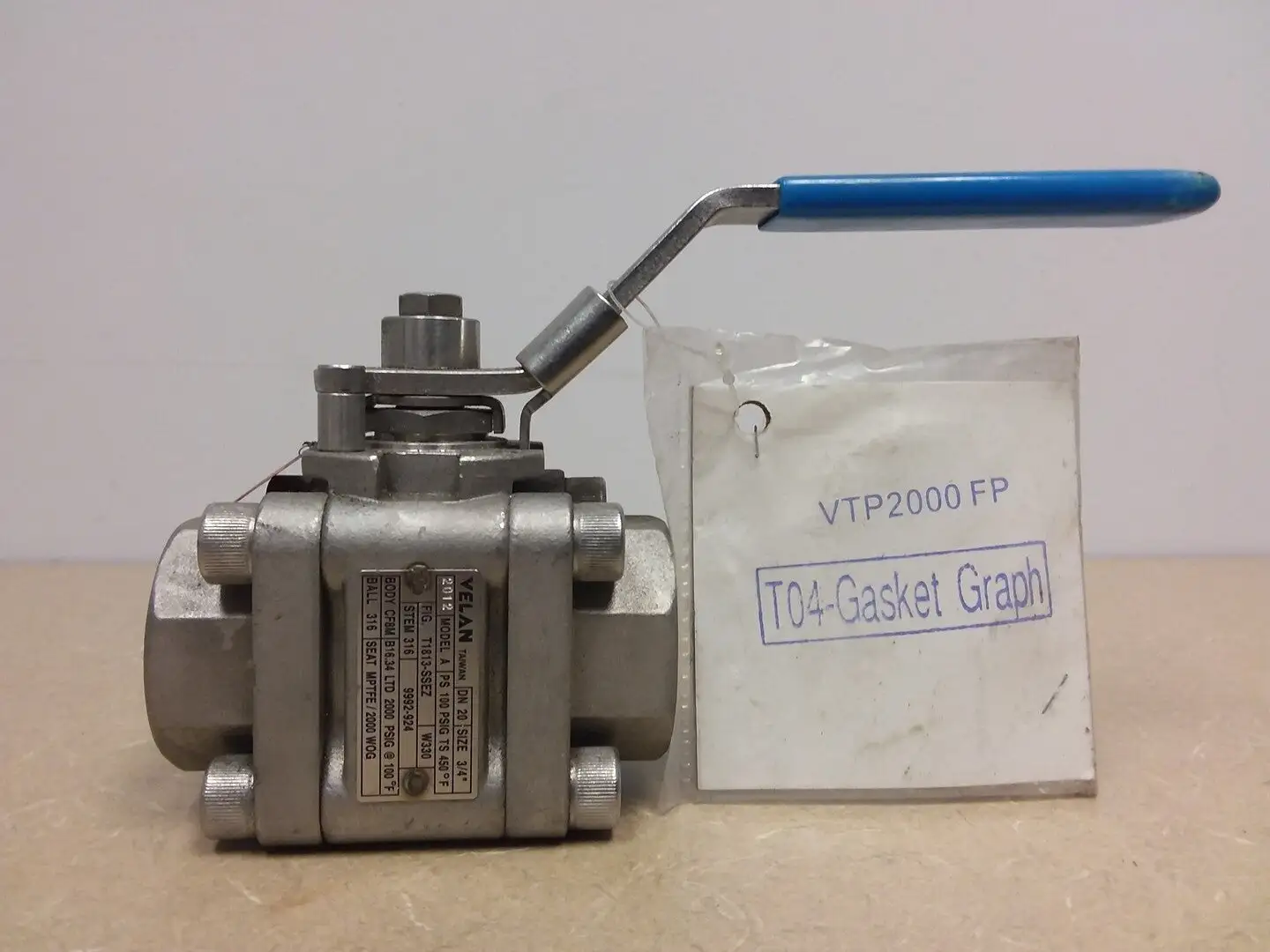

NEW 2012 VELAN T1813-SSEZ

Diameter: 3/4"
Class: 2000 WOG
Valve Style: Ball
Connection Ends: Socket Welded
ASME: B16.34
Body: CF8M Stainless Steel
Stem: 316
Type: 3-Piece, High Performance, Full-Port
Connection Type: Socket Weld
Pressure Rating: 1500-2000 PSI (WOG)
Temperature Rating: 0-450 deg. F
Body Material: Stainless Steel
Operator Type: Lever Handle
Handle Material: 304 Stainless Steel
Stem Material: 316 Stainless Steel
Trim Material: 316 Stainless Steel Ball
Packing Material: PTFE
Seat Material: MPTFE
Seal Material: PTFE
Material Standard: Body: ASTM A351 Grade: CF8M
Industry Standard: ASME B16.34, Fire Tested to API 607 Rev. 5/ISO 10497, ISO5211
