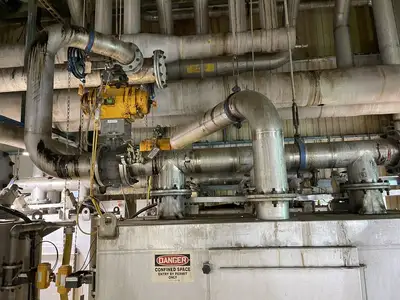

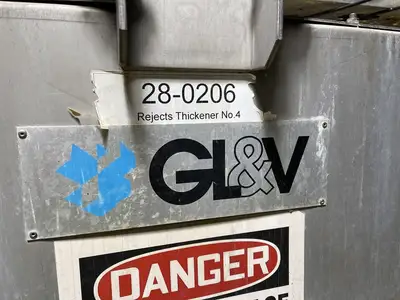

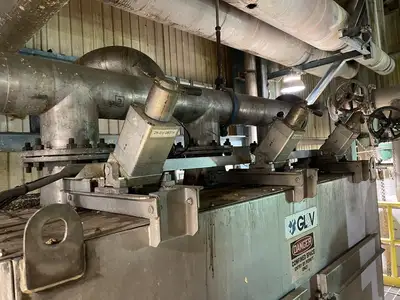

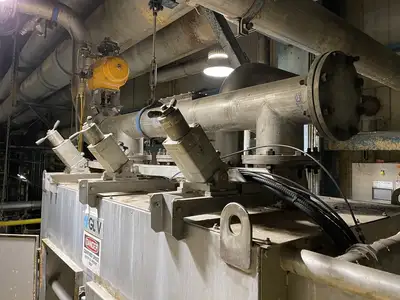

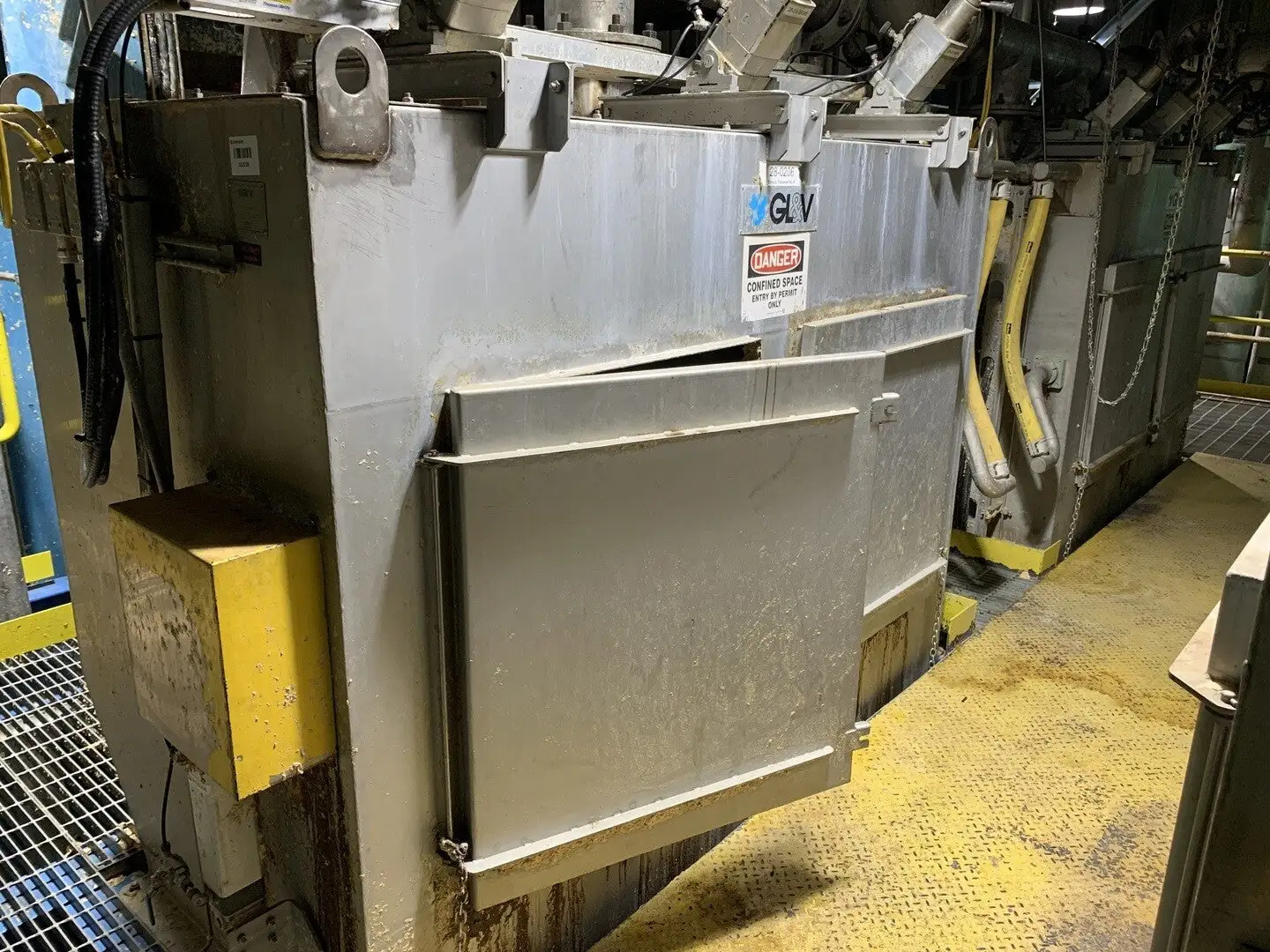

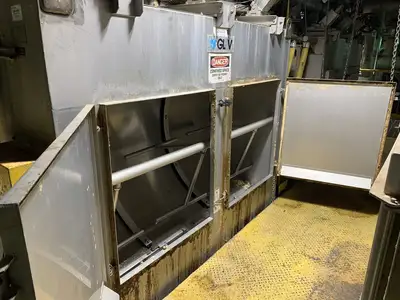

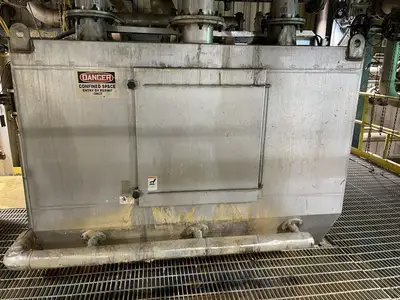

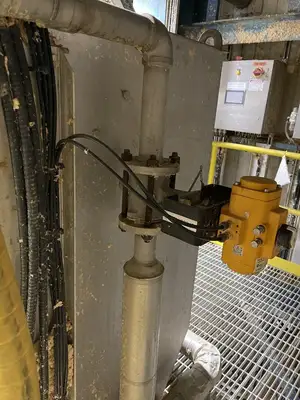

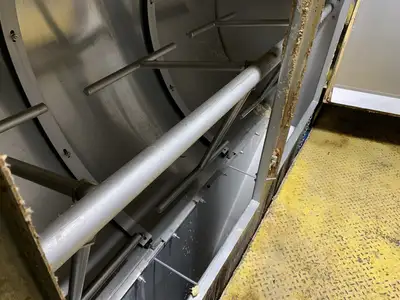

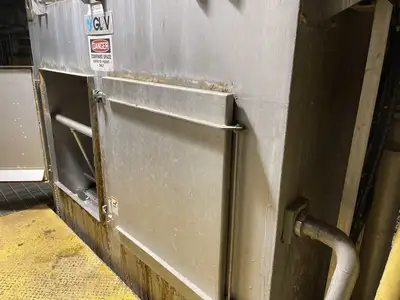

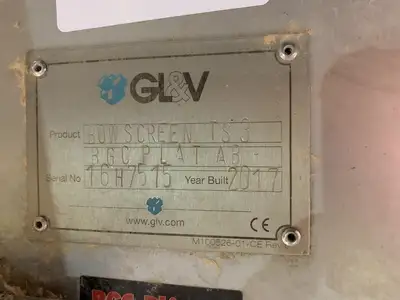

USED 2017 GL&V BOWSCREEN TS3

Diameter: 48"
Application: rejects thickening
PDF TECHNICAL DRAWINGS
PDF INSTRUCTION MANUAL
Principle of Operation:
The decker consists of a wire mesh covered cylinder (mould) rotating in a vat of stock.
Level differences between the inside and outside of the mould induce a drainage of water from the stock.
Stock is fed into one side of the vat and passes under the mould, forming a mat on the wire.
This mat is picked off by a rubber covered couch roll and sliced off by a doctor blade running the length of the roll. The thickened stock so removed, creeps over the doctor blade and falls from the apron into a discharge chute.
White water drained into the cylinder mould passes through the end of the decker and out through a pipe.
Diameter: 48"
Length of Cylinder Mould: 196"
