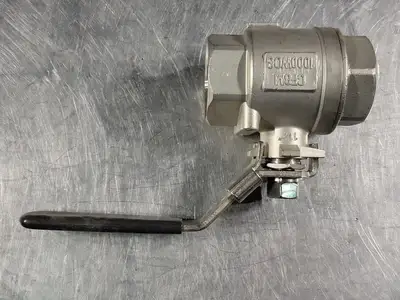

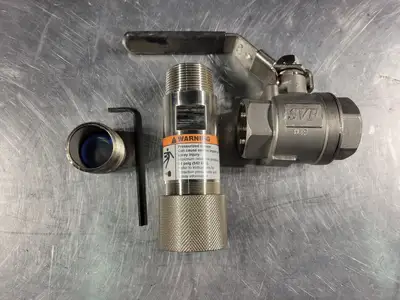

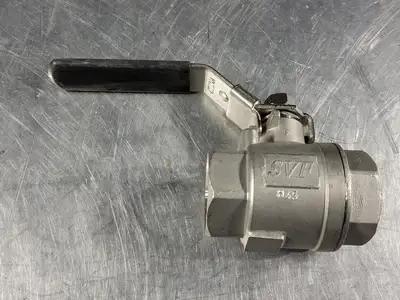

NEW ROSEMOUNT 23765-00

Valve Style: Other
Connection Ends: Threaded

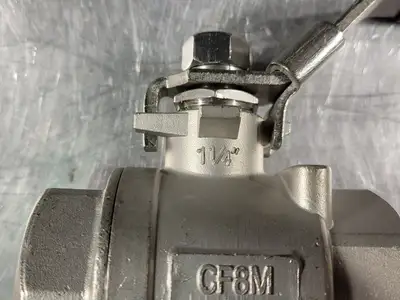

Process Connection: 1-1/4" NPT (MNPT)
Sensor Connection: Connects to 1-inch diameter tube on retractable style sensor
Wetted Materials: 316 stainless steel (SST), PTFE
Maximum Temperature: +32 to +212 deg. F (0 to 100 deg. C)
Maximum Pressure: 200 psig (13.8 barg)

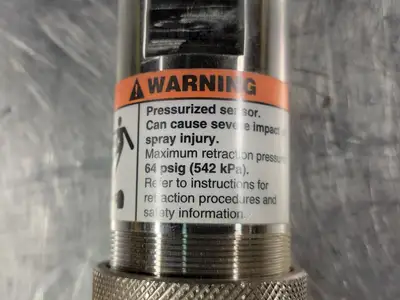

Maximum Retraction Pressure:
fir 21-inch or shorter sensors: 64 psig (4.4 barg)
for 21 to 36-inch long sensors : 35 psig (2.4barg)
Sensor Type: Rosemount 396R, 398R, 3400HT, and RBI-547
Conductivity: Rosemount 402
