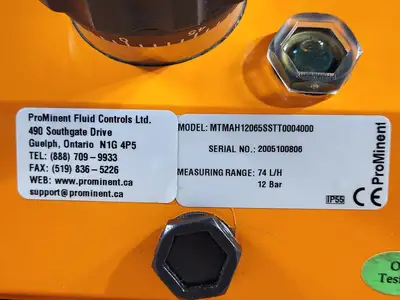

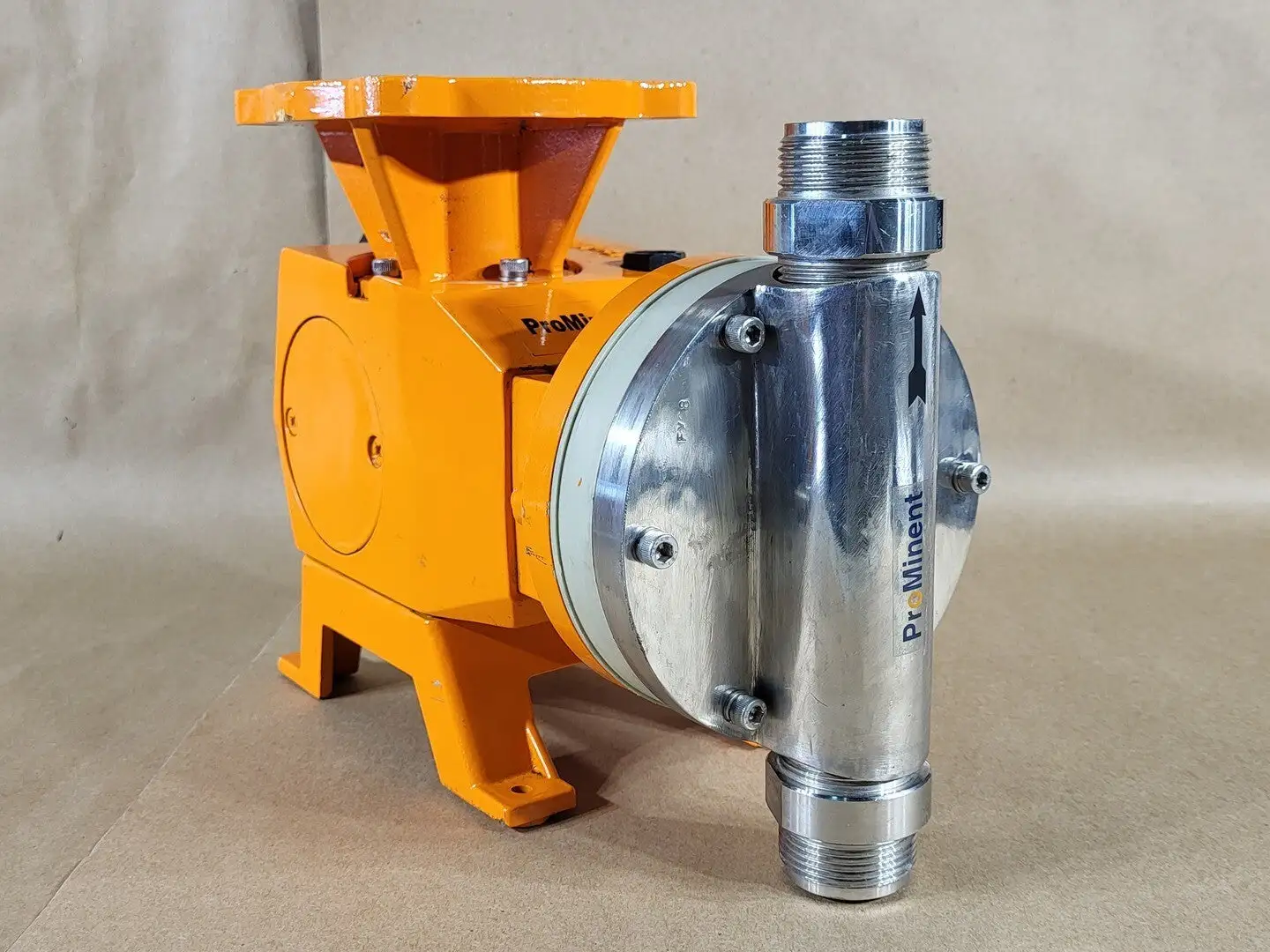

NEW PROMINENT MTMAH12065SSTT0004000

Pump Material: Other
Series: Meta
Drive Type: Main Drive
Pump Version: 12065
Liquid End Material: 316 Stainless Steel
Seal Material: PTFE
Diaphragm Version: Standard Diaphragm with PTFE Face
Labelling: Standard, with Logo
Motor Mount: Add-on Pump, No Motor
Enclosure Rating: Standard
Stroke Length Adjustment: Manual (standard)
Stroke Length: 4 mm
Maximum Back-Pressure: 12 bar
Capacity at Maximum Back Pressure: 74 l/h
Stroking Rate at 1725 rpm: 86
Suction Lift: 16 ft./ 5 m
Net Positive Suction Head: 5.8 psi/ 0.4 bar
Max Suction Pressure: 40.6 psi/ 2.8 bar
