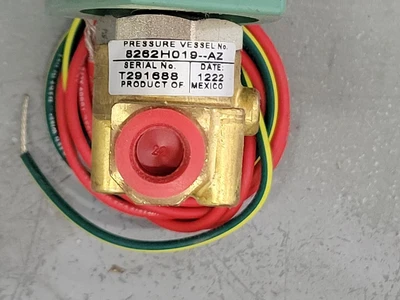

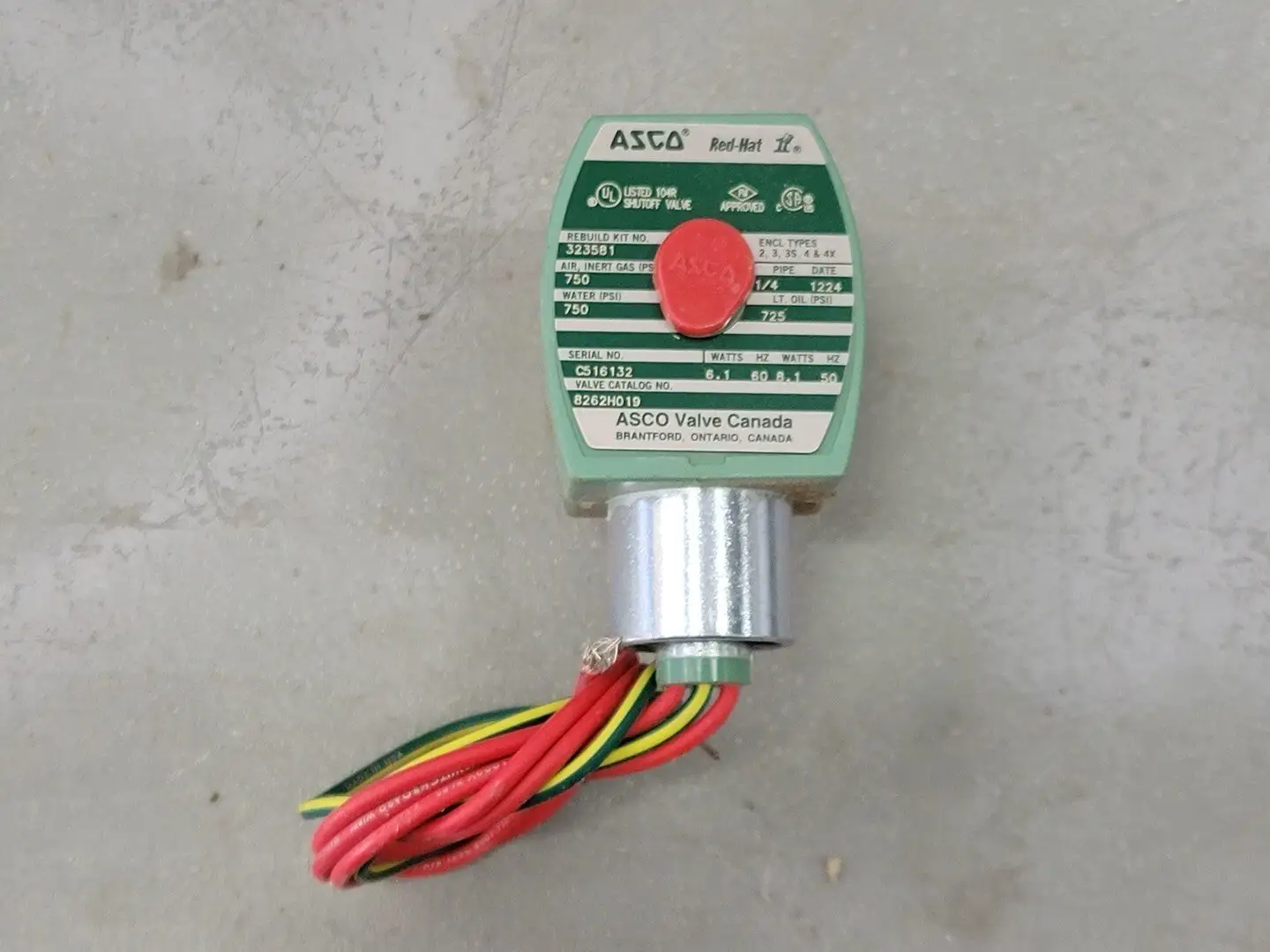

NEW ASCO 8262H019

Valve Style: Other
Connection Ends: Threaded
Inlet Pipe Size: 1/4" NPT
Body Style: 2 Way
Body Material: Brass
Input Supply Rating: 12 VDC
Media Handled: Air-Inert Gas, Light Oil, Water
Port Connection: 1/4" Female Threaded x 1/4" Female Threaded
Pressure Rating: 750 PSI (Air), 640 PSI (Water), 550 PSI (Light Oil)
Temperature Rating: -13 deg. to 180 deg. fahrenheit (Fluid)
Type: 2-Way/ 2-Position, Direct Acting
Valve Position: Normally Closed
Enclosure Type: 1/2/3/3S/4/4X
Wattage Rating: 8.1 W @ 50 Hz, 6.1 W @ 60 Hz
Actuation: Solenoid
