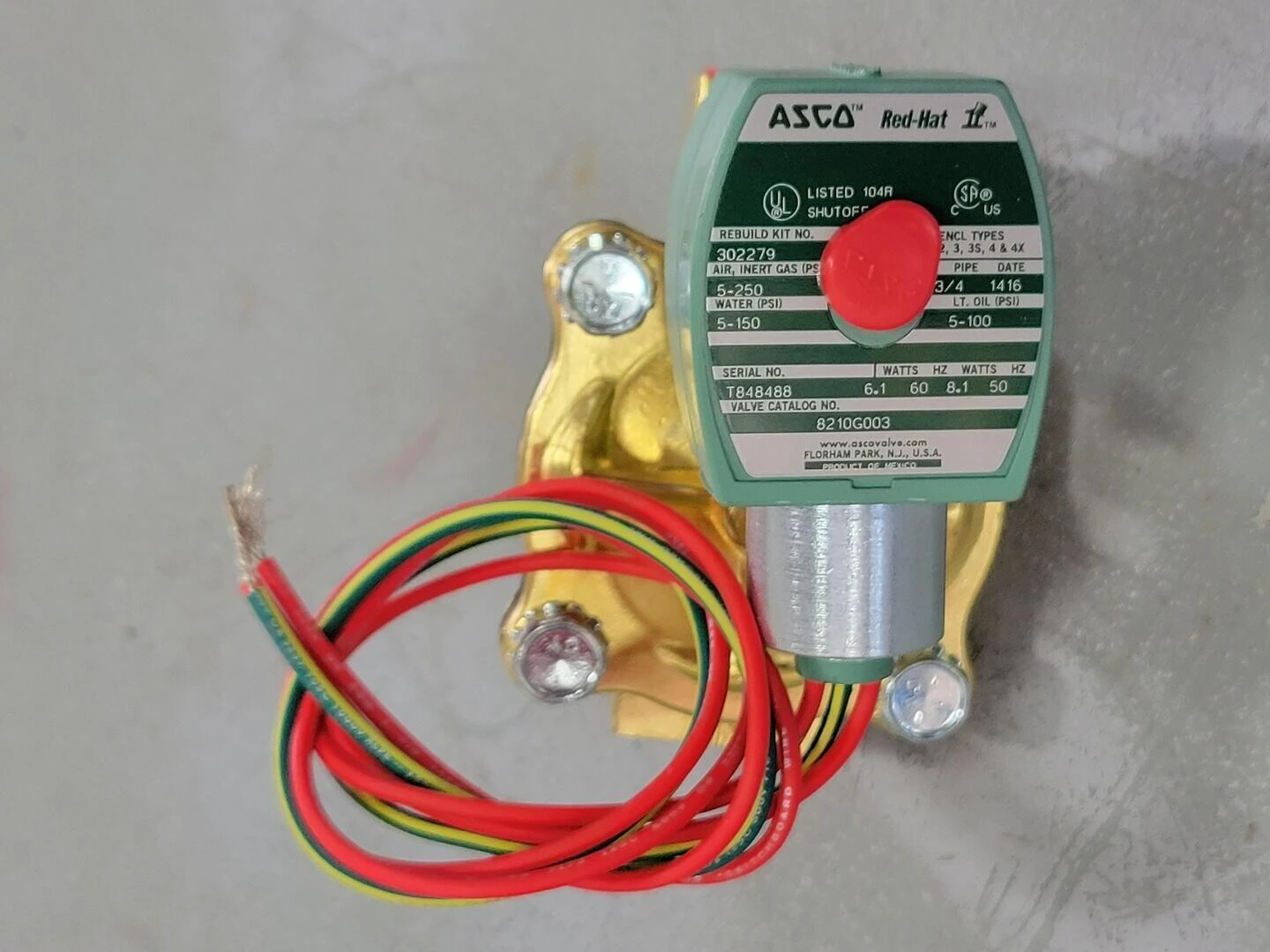

USED ASCO 8210G003

Diameter: 3/4"
Valve Style: Other
Connection Ends: Threaded
Body Material: Brass
Input Supply Rating: 24 VDC
Media Handled: Air-Inert Gas, Light Oil, Water
Port Connection: 3/4" Female Threaded x 3/4" Female Threaded
Pressure Rating: 5-250 PSI (Air), 5-150 PSI (Water), 5-100 PSI (Light Oil)
Type: 2-Way/2-Position, Diaphragm, Pilot Operated
Valve Position: Normally Closed
Actuation Type: Solenoid
Wattage Rating: 8.1 W @ 50 Hz, 6.1 W @ 60 Hz
Enclosure Types: 2,3,3s,4 & 4x
Coil Voltage: 120V
