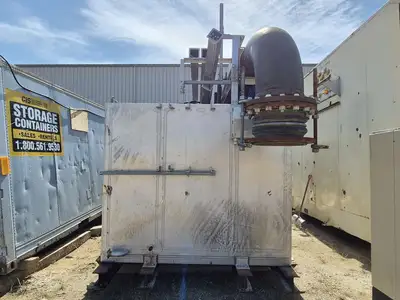

Water Treatment System w/ Clarifiers, Sand Filters, & Disc Filter

This Water Treatment System Includes:

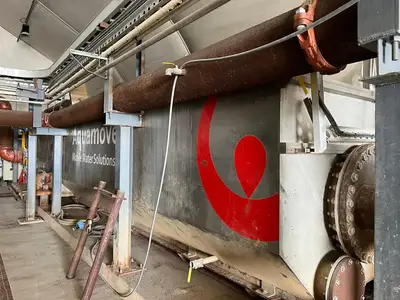

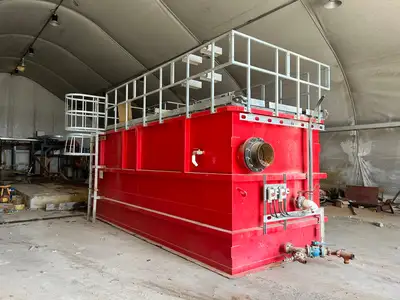

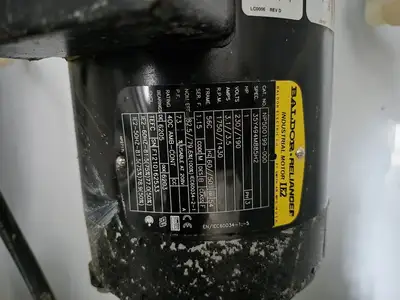

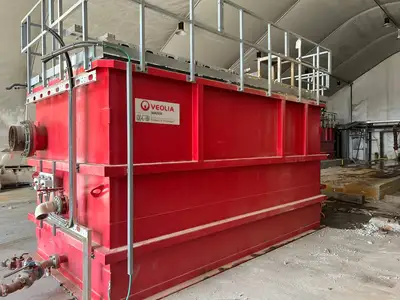

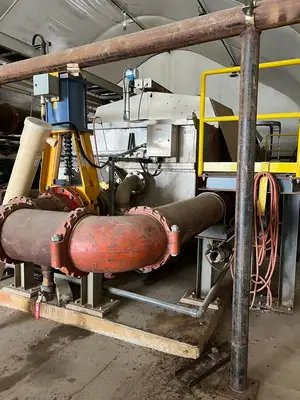

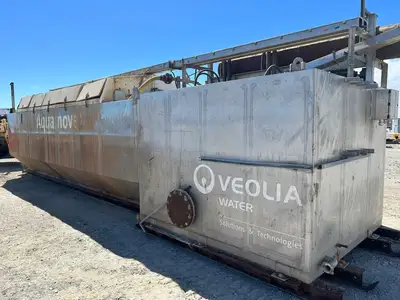

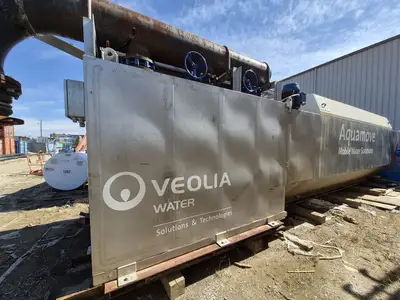

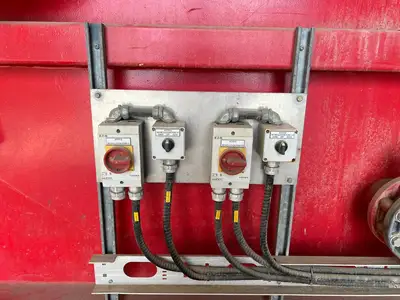

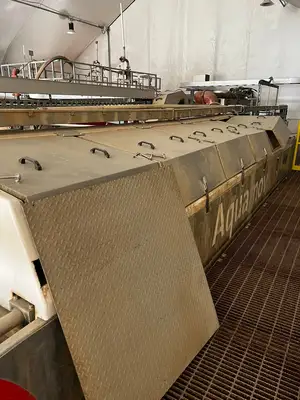

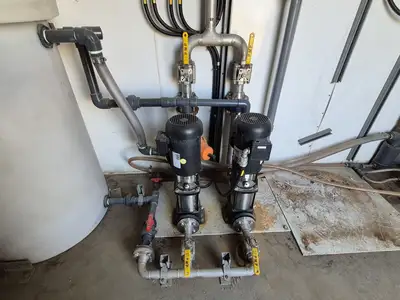

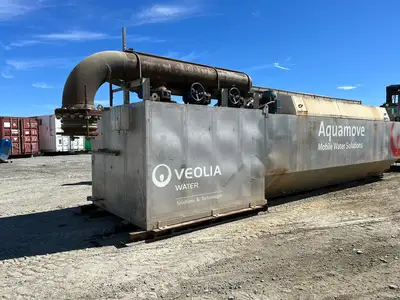

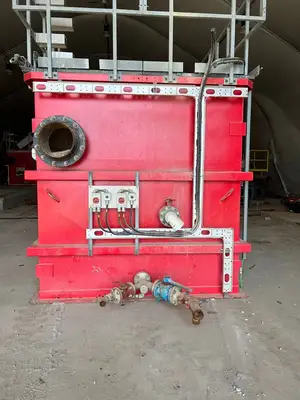

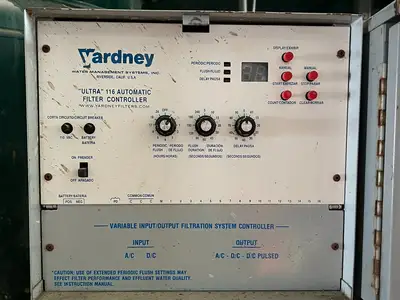

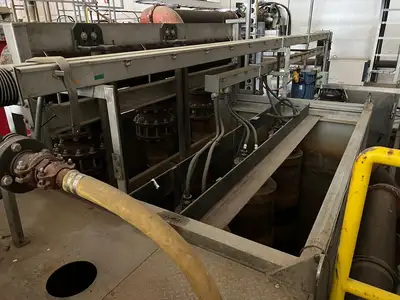

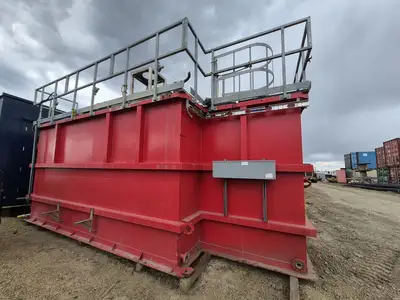

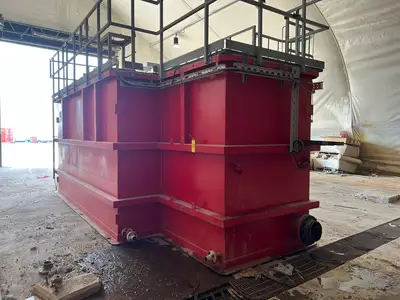

2 x VEOLIA-JOHN MEUNIER Actiflo High-Performance Clarifiers
Model: ACP2-40M
Nominal Capacity: 1100 USGPM
Required Capacity: 350 - 1500 USGPM
Rise Rate @ Nominal Flow: 32 USGPM/Sq. Ft.
Rise Rate @ Min. Required Flow: 10 USGPM/Sq. Ft.
Rise Rate @ Max. Required Flow: 44 USGPM/Sq. Ft.
Each Actiflo High-Perfomance Clarifier comes with the Actiflo Turbo Package, consisting of:
Coagulation Tank
Maturation Tank

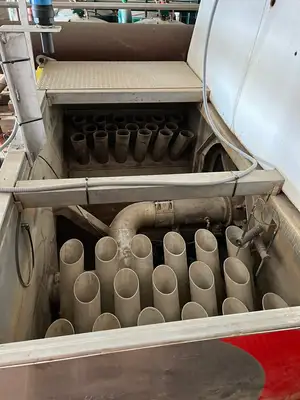

Lamellar Settling Tank
Sludge Collection Troughs & Hopper
Clarified Water Troughs
Circular Scraper

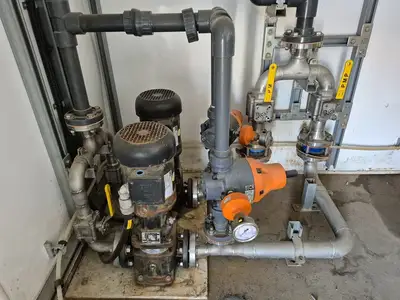

Microsand Recirculation System (Hydroclones)

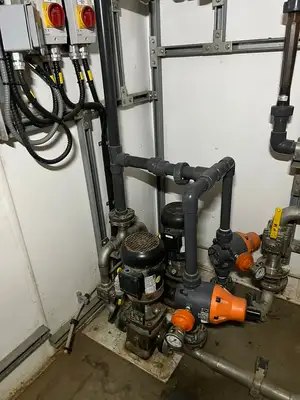

Each recirculation line has one pump and one hydroclone
Hydroclone Specifications:
Make: EXSTO
Model: MA-20 (760mm)
Material: Polyurethane TM390 (ACS)
Inlet (Vortex Finder): 42mm
Outlet (Apex): 30mm
Inlet Flow (Sludge): 66 - 132 USGPM
Inlet Flow (Service Water): 10% to 20% of Sludge Inlet Flow
Performance: Recovery of solids > 50 microns

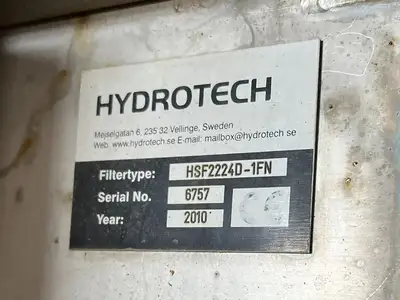

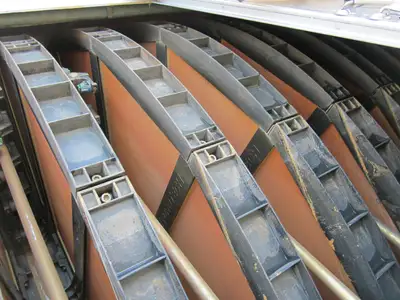

1 x KRUGER/HYDROTECH 2200 Series Disc Filter
Model: HSF2224D-1FN
Serial No.: 6757
Manufacture Year: 2010
Drum Diameter w/ Discs: 2200mm
Max. Number of Discs: 24

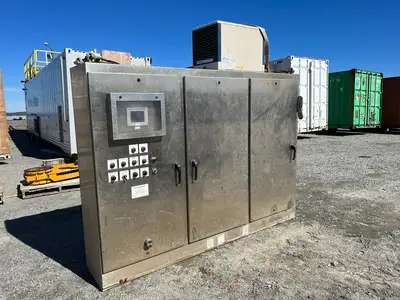

Includes: Enclosed tank and control enclosure

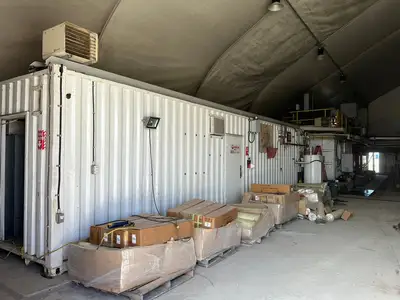

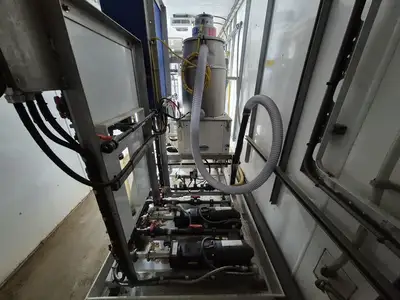

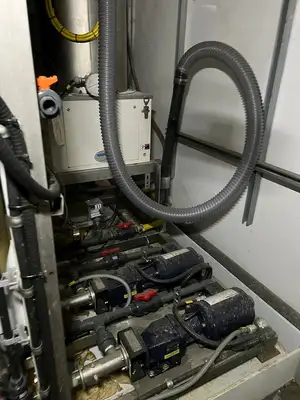

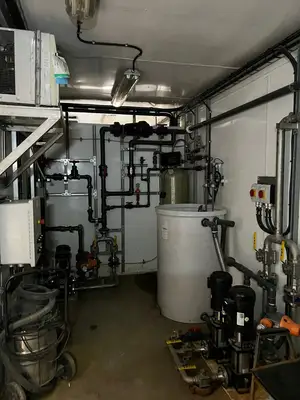

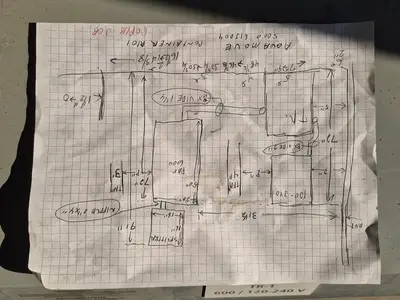

2 x Chemical & Electrical Control Containers
Each containing:

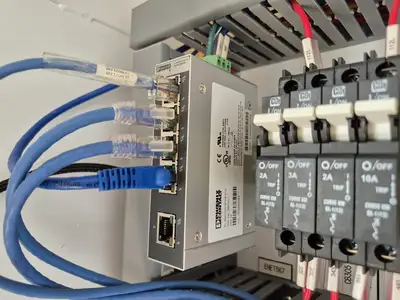

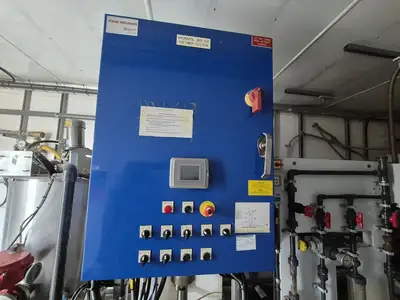

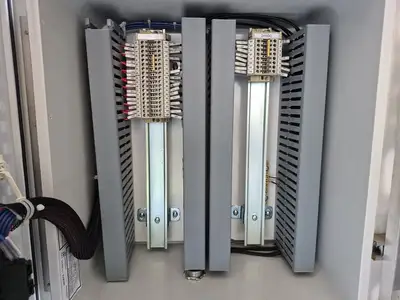

Control and Electrical Panels
Retention Tank
Hot Water Tank

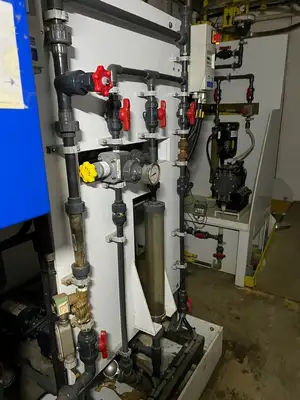

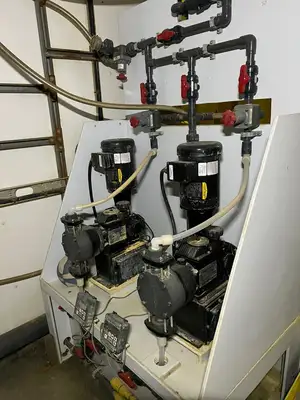

Coagulant Dosing Station

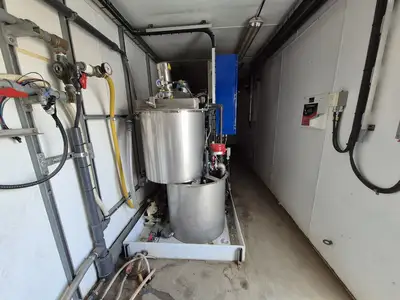

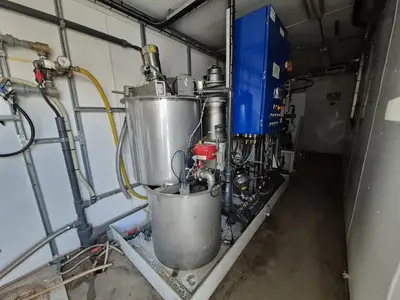

Polymer Preparation and Dosing Station (VEOLIA Hydra-Pol 250)
NaOH Dosing Station
Emergency Shower Station

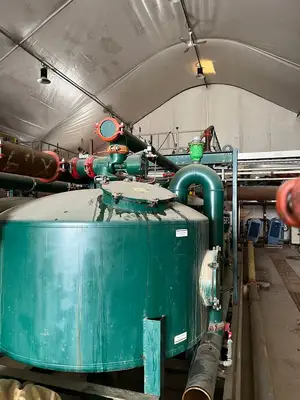

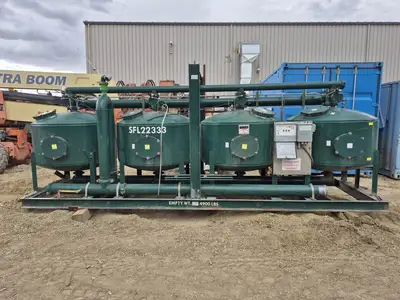

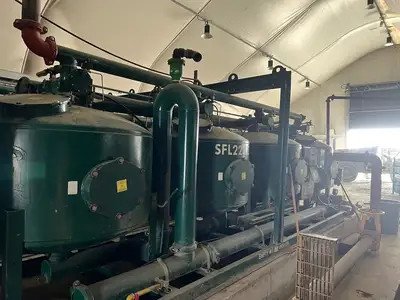

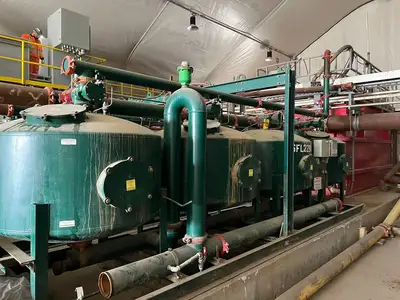

2 x BAKER 4-Pod Sand Filter
Description: Skid-mounted, high-rate, automatic backwashing sand media filter with 4 pods, designed for general purpose water filtration of organic and inorganic solids.
Model: IL 5424-4AS
Serial No.: SFL22333
Min./Max. Pressure: 35/80 PSI
Max. Flow: 1000 GPM
B/W Flow: 80 GPM
Supporting Documents
Manual - Actiflo High-Performance Clarifier ACP2-40M and Turbo Package
Manual - KRUGER/HYDROTECH 2200 Series Disc Filter HSF2224D-1FN
Drawing - Disc Filter General Arrangement
Drawing - Chemical Container General Arrangement
Drawing - Clarifier Piping & Instrumentation Diagram (PID)
Drawing - Disc Filter Piping & Instrumentation Diagram (PID)
Drawing - Service Water Piping & Instrumentation Diagram (PID)
Drawing - Coagulant Piping & Instrumentation Diagram (PID)
Drawing - Polymer Piping & Instrumentation Diagram (PID)
Drawing - Caustic Piping & Instrumentation Diagram (PID)
Drawing - Process Flow Diagram
Drawing - Possible Installation Layout

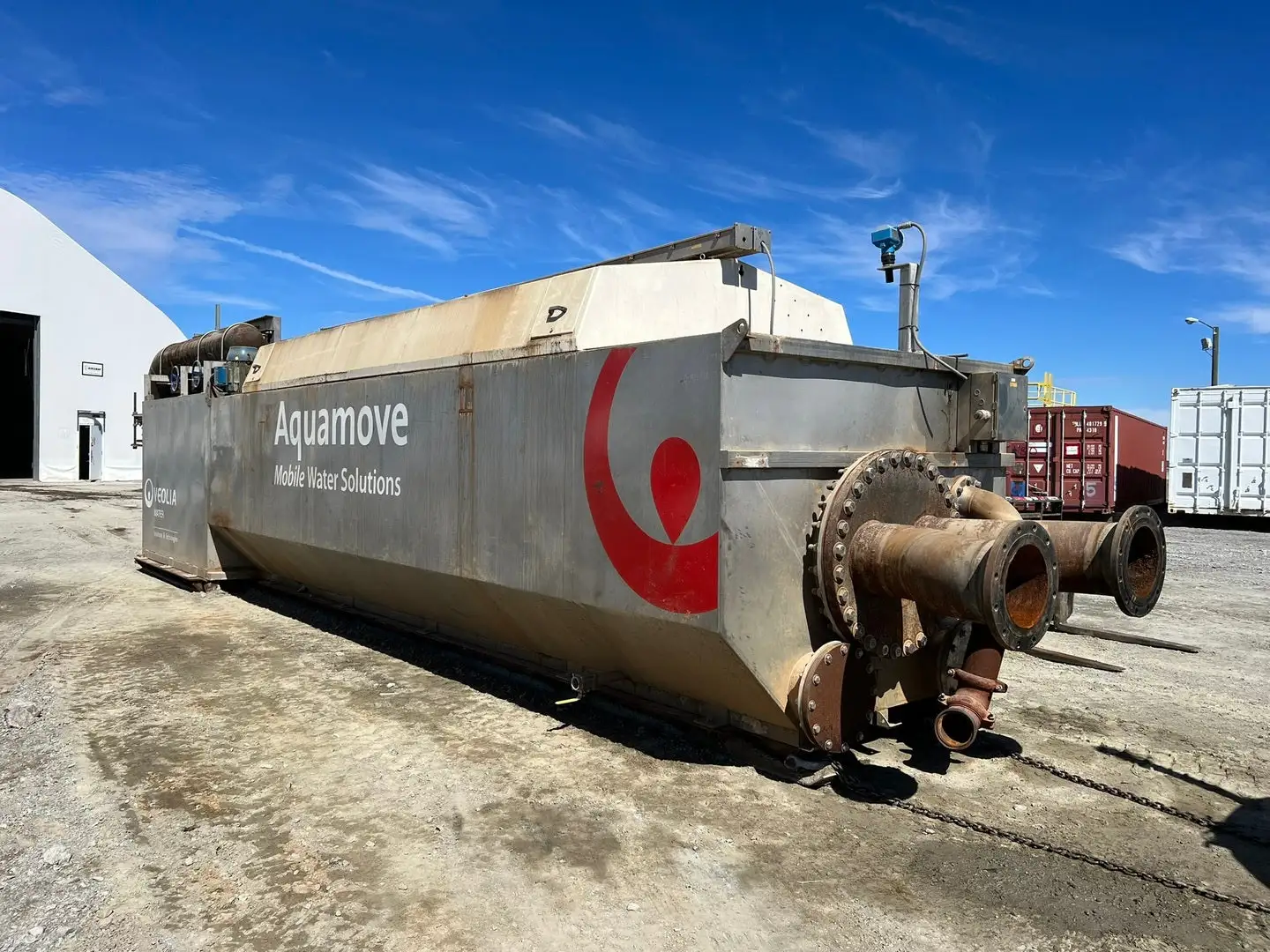

This system is designed by Veolia's AQUAMOVE service, with each component designed with the ability to be mobile and easily transported.
