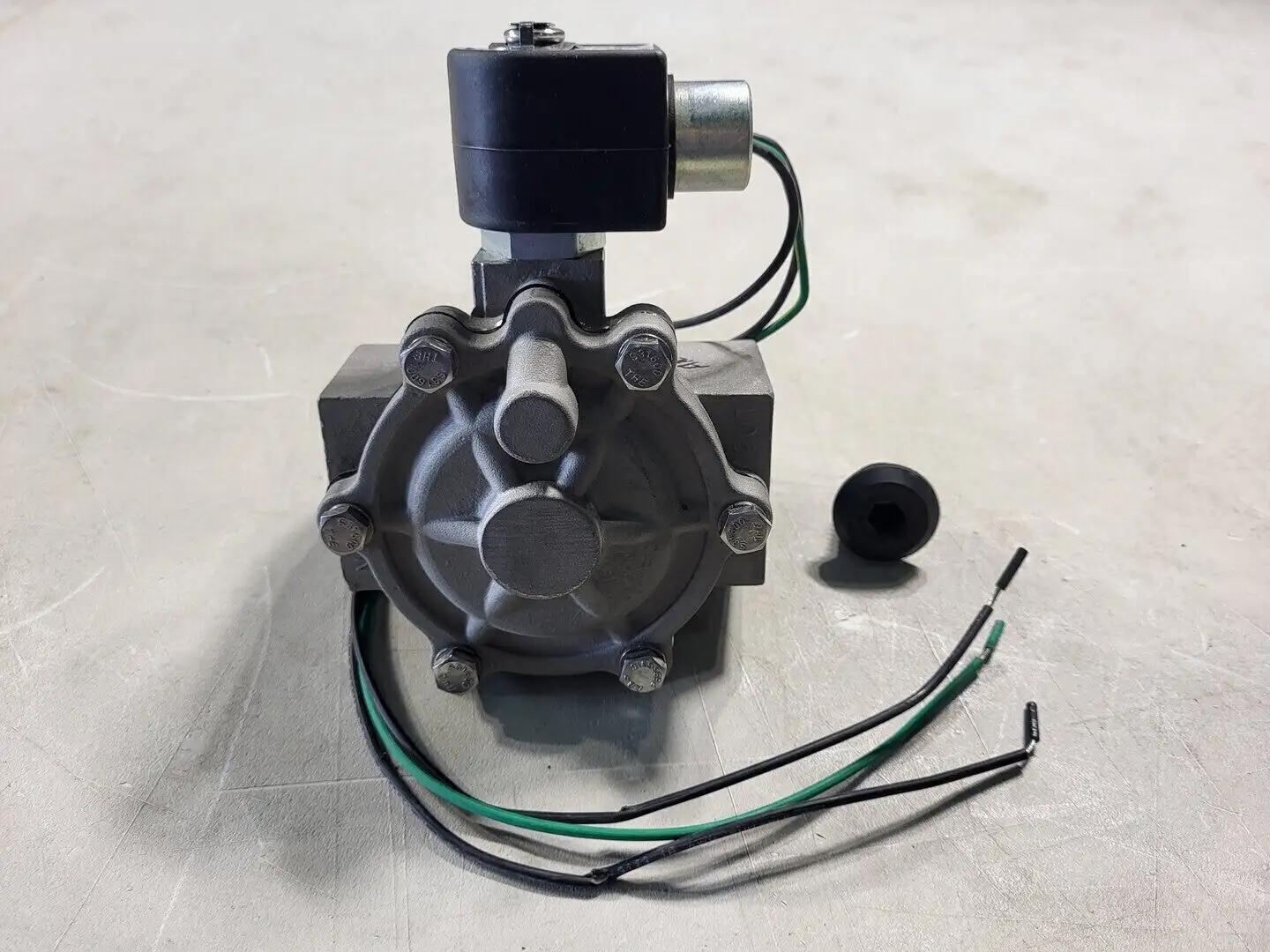

USED 2014 PARKER 24F24C6180A3F4C80

Main function: Valve (Electrically actuated)
Product series / family name: Valves (Pneumatic) > Solenoid-operated
Sub-range name: Gold Ring series 2-way offset pilot
Functions: Pneumatic stainless steel internal pilot-operated solenoid valve
Valve function: 2-way 2-positions (2/2) Normally Closed (NC)
plunger return spring
Design: diaphragm offset pilot
NEMA 4/4X class F coil
for air / inert gas / water / light oil media
Flow: Cv 22.5
Pressure: 5psi / 0.3bar minimum differential operating pressure
125psi / 8bar rated differential operating pressure (air and inert gas)
125psi / 8bar rated differential operating pressure (water)
125psi / 8bar rated differential operating pressure (light oil)
Temperature: +65°C / +150°F max. media temperature
Diameter: 1-1/4" orifice
Connection type: 1-1/2" NPT threaded ports
Pre-equipped with 1/2" NPT cond. entry and 18" / 45cm bare end flying leads (solen.)
Control Voltage (DC): 24Vdc
Mounting mode: Individual in-line installation
Degree of protection: NEMA 4
NEMA 4X
Material: Stainless steel (SUS316) vessel
NBR seal
Ambient air temperature for operation: max. +130°F / +54 °C
Power consumption: 11.5 W
Benefits: 2-Way Direct Lift - Pilot and Remote Operated valves are designed for higher flow and medium to high pressure applications
Pilot operated valves require the minimum pressure differential specified for proper valve operation
SPECIFICATION
VOLTAGE RATING: 24 VDC
CONNECTION SIZE CODE: 24
COIL INSULATION CODE: F
SERIES CODE: 24
SEAL MATERIAL CODE: 1
COIL CURRENT: DC
BODY MATERIAL: 316 Stainless Steel
VOLTAGE CODE: 80
COIL WATTAGE CODE: 3
CONNECTION SIZE: 1 1/2
ACTUATION: Offset Diaphragm, Piloted
SOLENOID ENCLOSURE: NEMA 4, 4X
ACTUATION CODE: 4
COIL TERMINATION CODE: C
SERIES: 24
WATT RATING: 11.5 W
COIL INSULATION: Standard (Class 155)
CURRENT DESIGN CODE: A
COIL TERMINATION: 18 in Leads
SEAL MATERIAL: Buna-N
BODY MATERIAL CODE: 6
FLOW PATTERN: Normally Closed
ORIFICE SIZE CODE: 80
FLOW PATTERN CODE: C
VALVE FUNCTION: General Purpose
ORIFICE SIZE: 1 1/4 in
FUNCTION CODE: 2
CONNECTION TYPE: NPT
VALVE TYPE: Pressure Vessel w/Coil
FUNCTION: 2-Way
SOLENOID ENCLOSURE CODE: 4
