USED GRUNDFOS UPS 50-60 F

Horsepower: 0.34 hp
GPM: 124
Pump Material: Cast Iron
Voltage: 115 volts
Phase: 3-phase
Technical
Speed No.: 3
Rated Flow: 62 US gpm
Max/ Flow: 124 US gpm
Rated Head: 12.74 ft
Max. Head: 21.33 ft
Installation
Maximum ambient temperature: 104 °F
Ambient max at 176°F liquid: 176 °F
Maximum operating pressure: 145.04 psi
Type of connection : 4-BOLT FLANGE, C.I. Flange
Pipe connection: 4 - Bolt Flange
Pressure rating for connection: PN 10

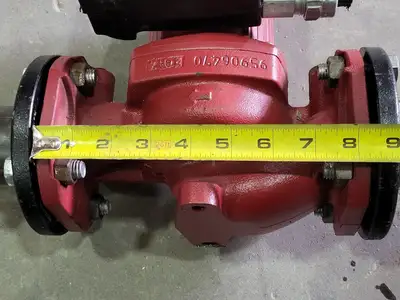

Port-to-port length: 8 9/16 in
Liquid
Pumped liquid: Water
Liquid temperature range: 35.6 .. 230 °F
Selected liquid temperature: 140 °F
Density: 61.35 lb/ft
Electrical data
Power input in speed 1: 0.3487 HP
Power input in speed 2: 350 W
Max. power input: 395 W
Main frequency: 60 Hz
Rated voltage: 1 x 115 V
Current in speed 1: 2.7 A
Current in speed 2: 3.4 A
Current in speed 3 : 3.6 A
Capacitor size - run: 40 F/180 V
Number of poles: 2
Insulation class (IEC 85): H
Thermal protect: internal
