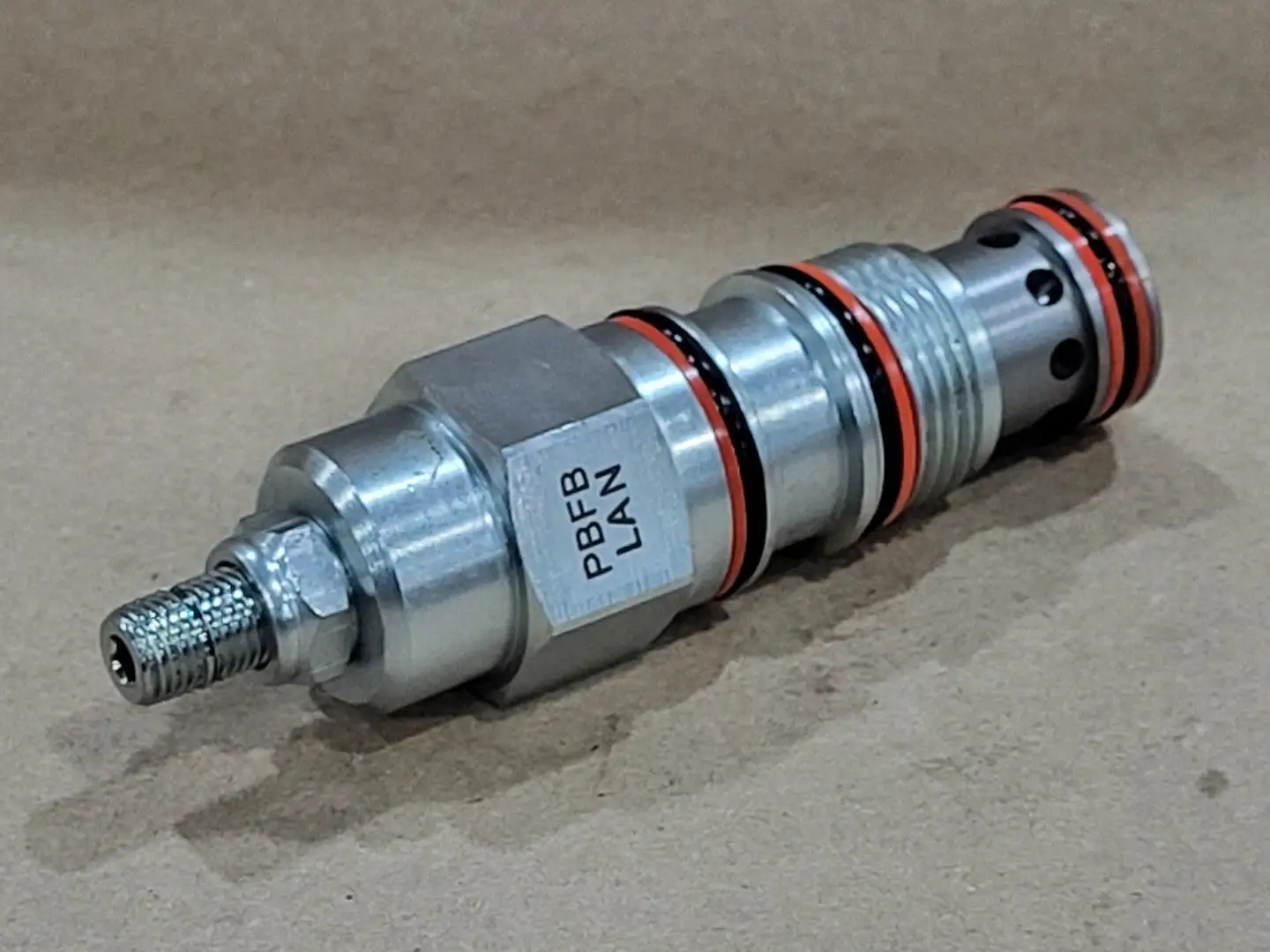

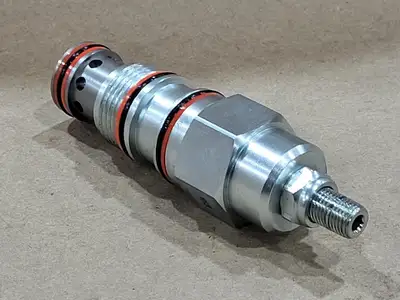

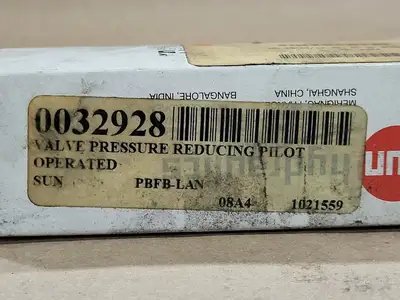

NEW SUN HYDRAULICS PBFB-LAN

Cavity: T-2A
Series: 2
Capacity: 20 gpm
Factory Pressure Settings Established at: Blocked Control Port (dead headed)
Maximum Operating Pressure: 5000 psi
Control Pilot Flow: 0.16-0.25 L/min
Adjustment- No. of CW Turns from Min. to Max. Setting: 5
Valve Hex Size: 1-1/8 in.
Valve Installation Torque: 45-50 lbf ft.
Adjustment Screw Internal Hex Size: 5/32 in.
Locknut Hex Size: 9/16 in.
Locknut Torque: 80-90 lbf in.
Adjustment Range: 100-3000 psi
Control: Standard Screw Adjustment
Seal Material: Buna-N
