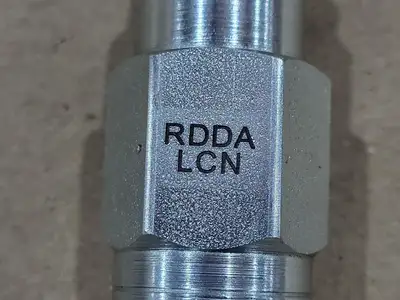

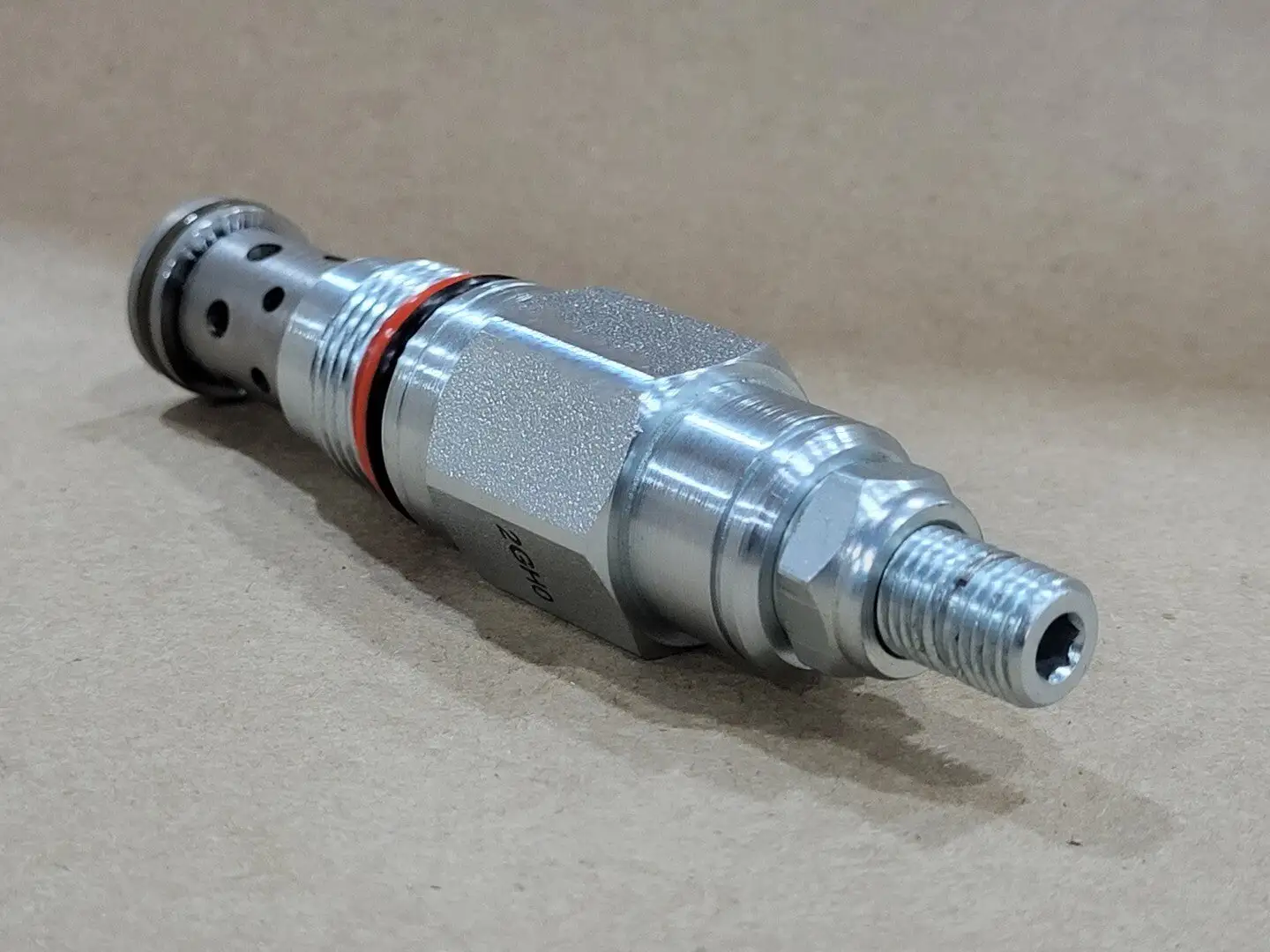

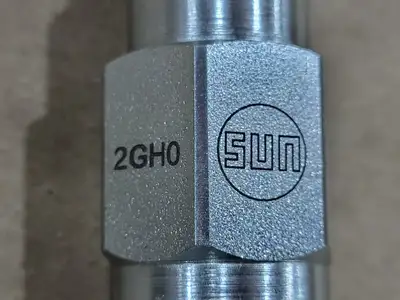

NEW SUN HYDRAULIC RDDALCN

Valve Style: Pressure Relief
Cavity: T-100A
Series: 1
Capacity: 25 gpm
Maximum Operating Pressure: 5000 psi
Factory Pressure Settings Established @: 4 gpm
Maximum Valve Leakage @ Reset: 10 drops/min.
Response Time - Typical: 2 ms
Reseat: >90% of setting
Adjustment - No. of CW Turns from Min. to Max. Setting: 6
Valve Hex Size: 7/8 in.
Valve Installation Torque: 30 - 35 lbf ft
Adjustment Screw Internal Hex Size: 5/32 in.
Locknut Hex Size: 9/16 in.
Locknut Torque: 80- 90 lbf in.
