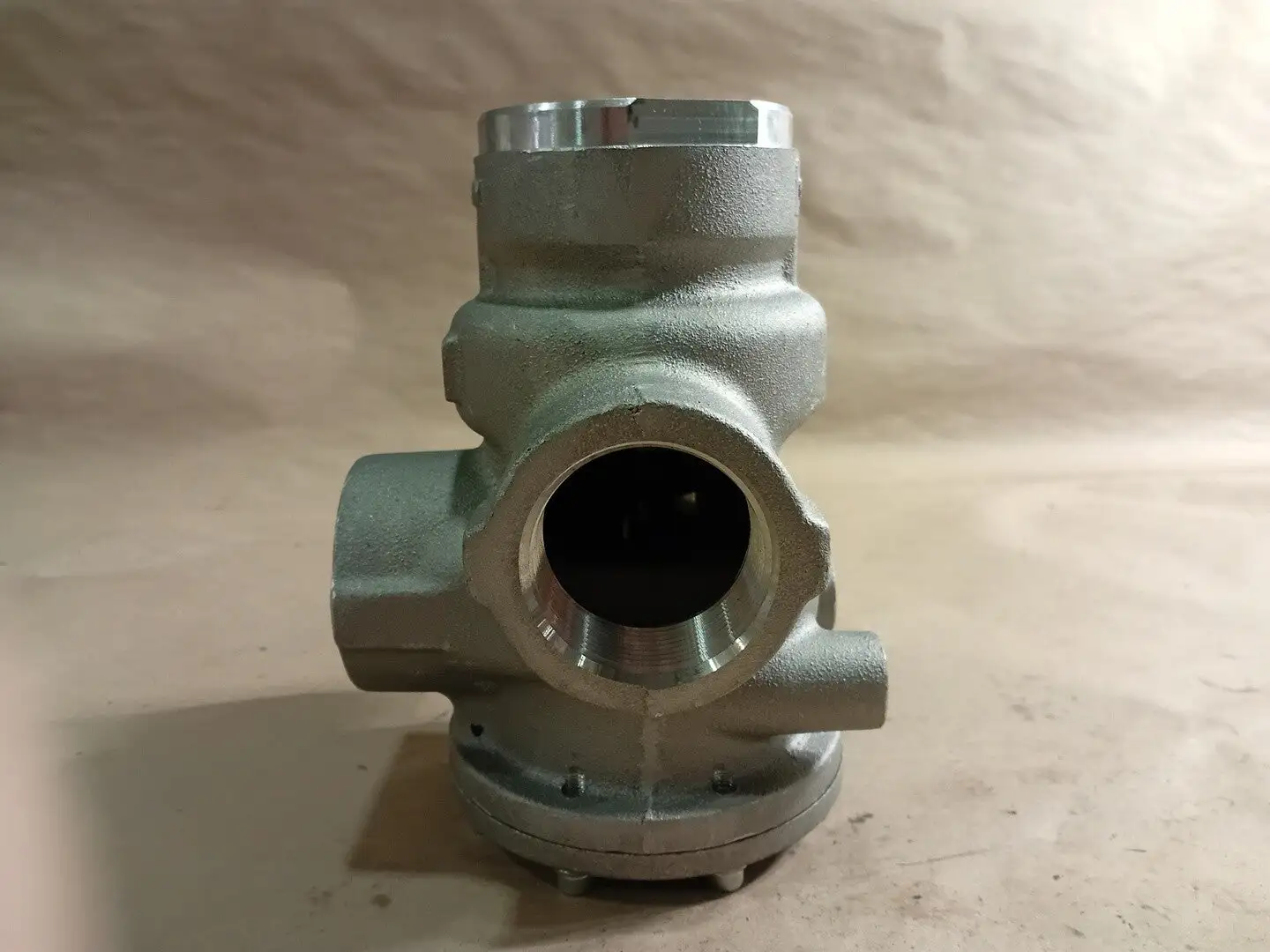

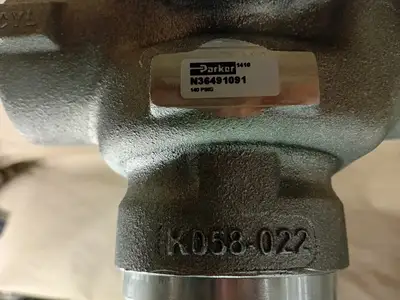

NEW PARKER N36491091

Valve Style: Other
Dimensions
Valve Port Size: 1 1/2 in
Pilot Port Size NPT (In.): 1/4
Length (In.): 5 1/4 in
Port Size (In.): 1-1/2 Inlet, 1-1/2 Exhaust
Height (In.): 7 17/32 in
Width (In.): 6 13/100 in
Overall Width: 6 1/8 in
Overall Height: 5 15/16 in
Pilot Port Connection Size: 1 1/2 in
Overall Length: 5 1/4 in
Valve Port Connection Size: 1 1/2 in
Details
Valve Ways and Positions: 3-Way/2-Position
Valve Actuator / Return: Air Pilot / Air Return
Max. CFM - Valves: 30 cfm
Max. Operating PSI: 140 psi
Type: Normally Closed
Coefficient of Volume: 23.3
Number of Positions: Two-Position
Pilot Pressure: 25 psi
Uses: General Pneumatics Applications
Number of Ways: Three-Way
Max. Temp. Range (F): 0 to 125
Vacuum: External Pilot
Item: Pilot Air Control Valve
Actuator/Return: Air Pilot/Air Return
Valve Type: Poppet
Body Material: Aluminum
Application: Automotive, Foundries, Pulp and Paper Mills, Steel Mills
Standards: CE Certifie
dProduct Type: Pilot Air Control Valve
Operating Temperature - Maximum: 200 Degrees F
For Media: Air
Operating Pressure - Maximum: 250 psi
Body Style: Inline
Actuator Type: Remote Pilot
Coefficient of Volume (Cv): 30
SeriesNFail Position: Open
Lubrication: Lubrication Not Required
Valve Action: Normally Open
Valve Port Connection Type: NPT
Return Action: Pilot Return
Override: No Override
Pilot Port Connection Type: NPT
Operating Temperature - Minimum: 0 Degrees F
Seal Material: Nitrile
Flow Rate - Maximum: 30 scfm
