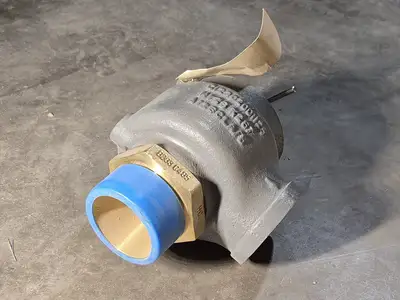

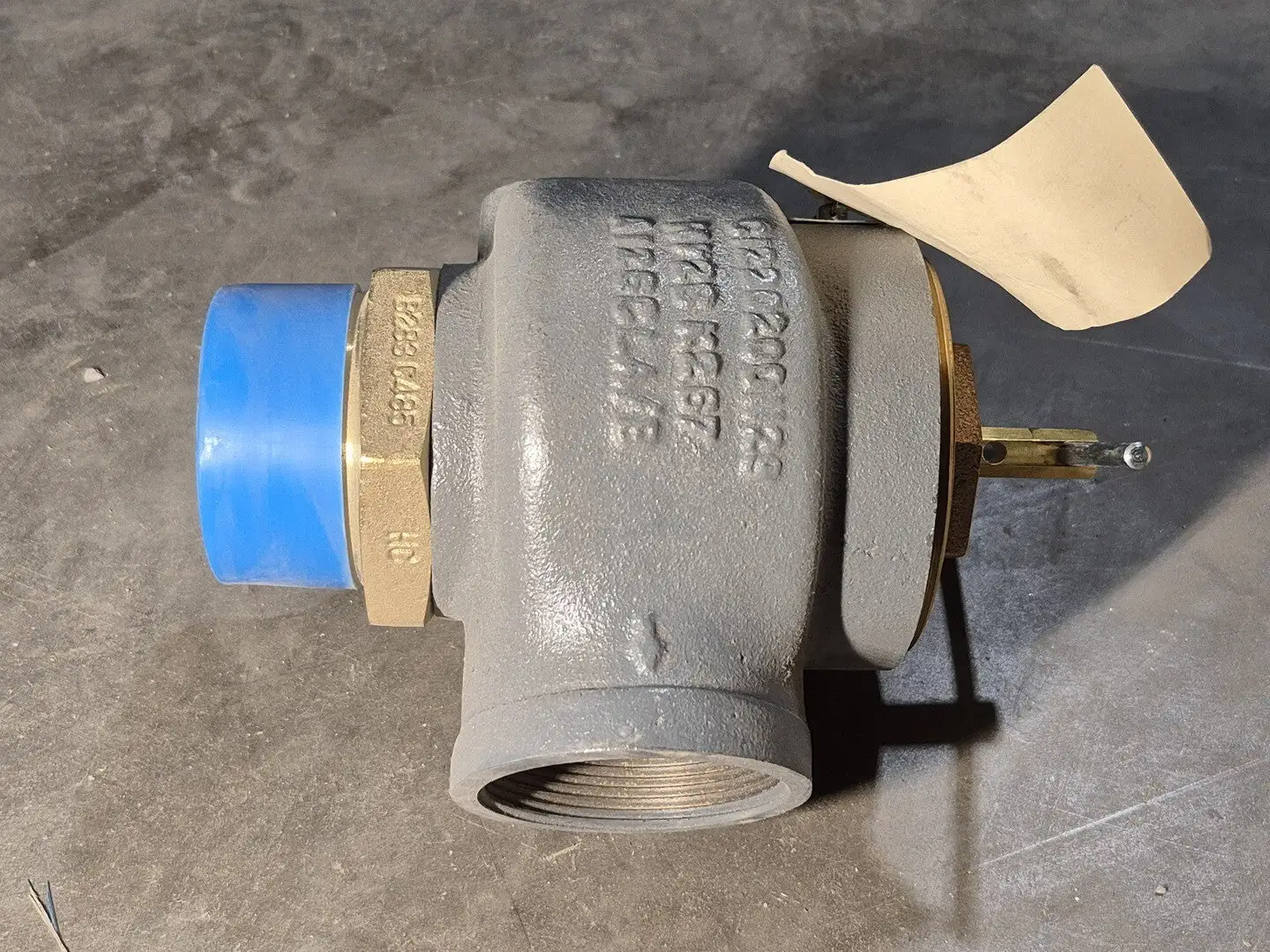

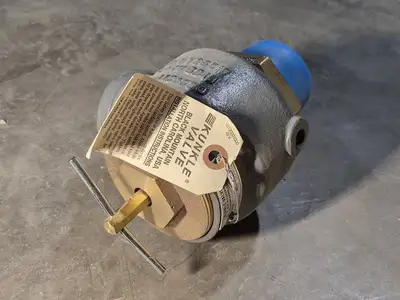

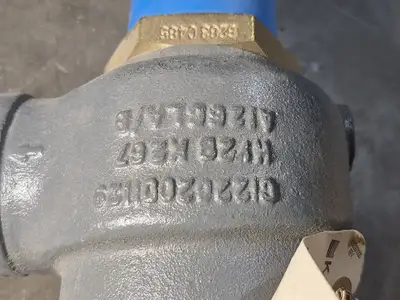

NEW KUNKLE 0337-H01ANM-0014

Diameter: 2"
Valve Style: Pressure Relief
Nominal Size: 2 in x 2 in
End Style: MNPT x FNPT
Valve Service: Air/Gas, Non-Code
Set Pressure: 14 psig
Body Material: Cast Iron
Trim Material: Bronze Disc & Nozzle
Actuator Type: Lift-Pin
Inlet Size: 2 in MNPT
Max Allowable Pressure: 60 psig
Max Allowable Temperature: 406 deg F
Orifice Size: H - .863
Outlet Size: 2 in FNPT
Seat: Bronze Disc
Series: 0337H, 337H
Spring: SS Spring
