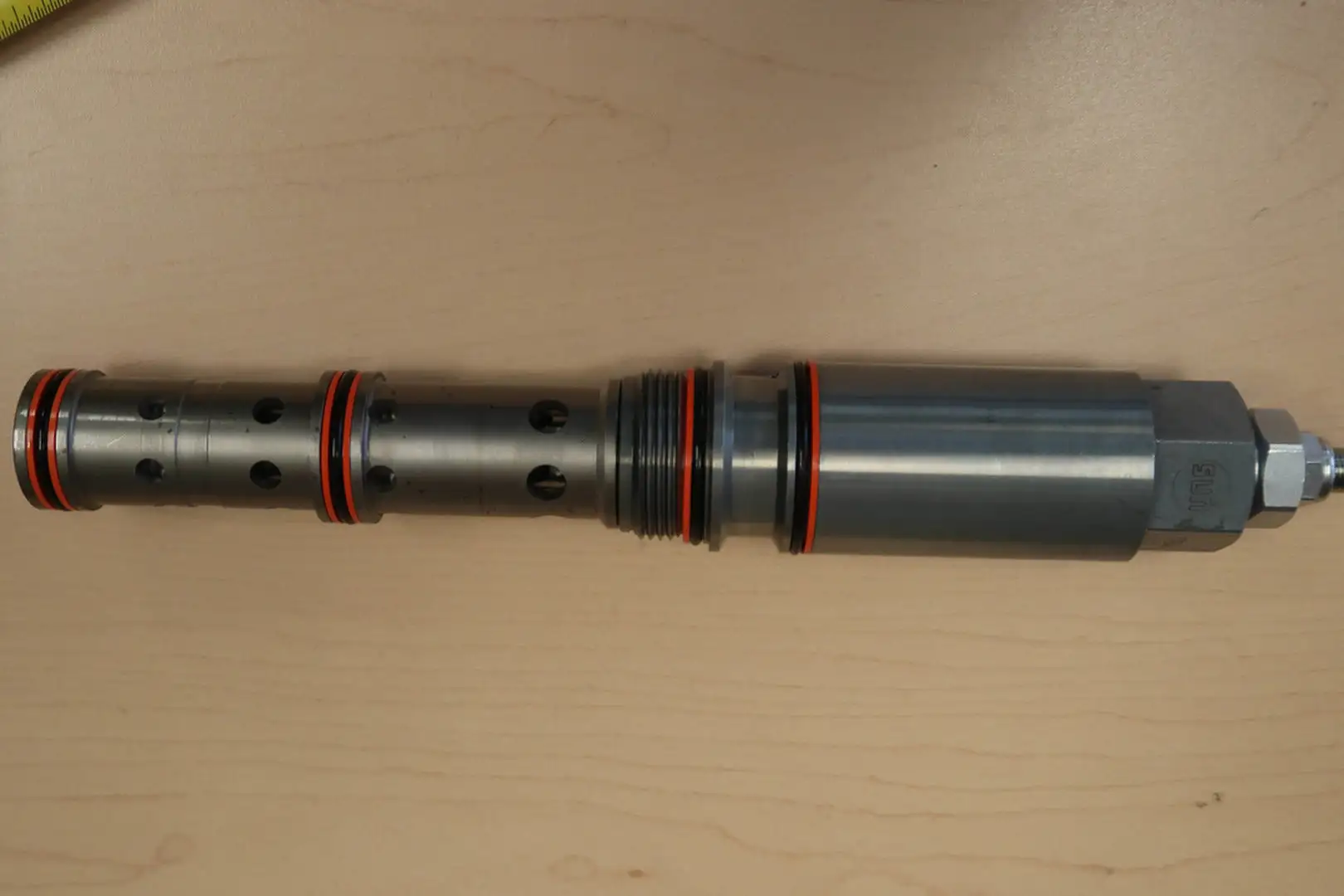

USED SUN HYDRAULICS FTFALCN

Cavity: T-53AD
Series: 3
Capacity: 50 gpm
Maximum Operating Pressure: 5000 psi
Pilot Pressure Required to Shift Valve: 50 - 120 psi
Pilot Pressure Required for Full Shift at Rated Flow: 290-340 psi
Maximum Valve Leakage at 110 SUS (24 cst): 10 in3/min. @ 1000 psi
Pilot Volume Displacement: 0.10 in3
Adjustment - No. of CCW Turns from Fully Closed to Fully Open: 5
Hysteresis: 35%
Valve Hex Size: 1-1/4"
Valve Installation Torque: 150-160 lbf ft.
Adjustment Screw Internal Hex Size: 5/32 in.
Locknut Hex Size: 9/16 in.
Locknut Torque: 80-90 lbf in.
