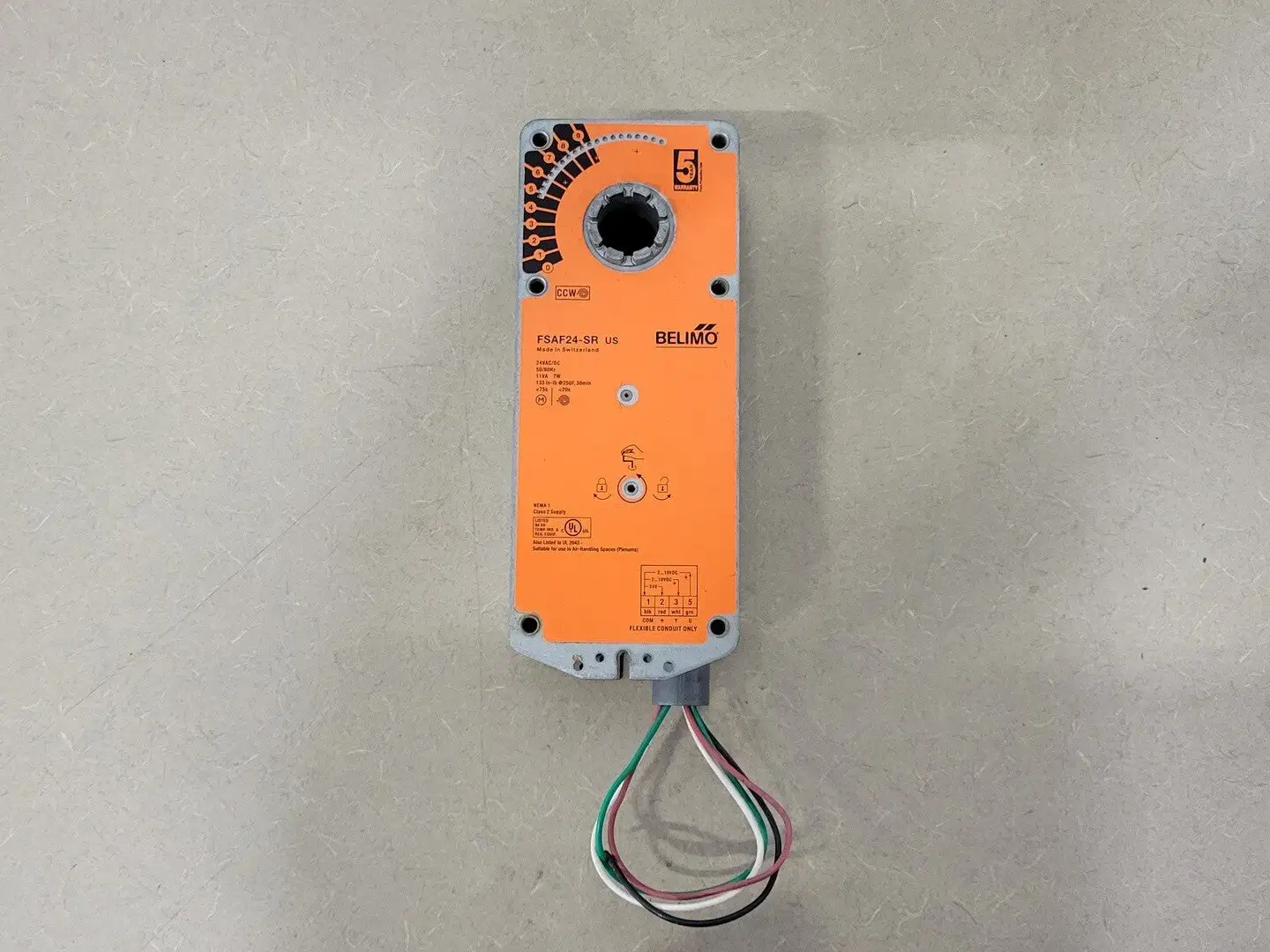

USED BELIMO FSAF24-SR

Technical Data Sheet PDF
Actuator type: Modulating, spring return
Power Consumption (Running): 6.5 W
Power Consumption For Wire Sizing: 10 VA
Torque: 180 in-lbs (approx. 20.3 Nm)
Voltage: 24 VAC or 24 VDC
Control signal: 2-10 VDC input
Rotation angle: 95
Operating temperature: -22F to 122F (-30C to 50C)
Enclosure rating: NEMA 2 / IP40
