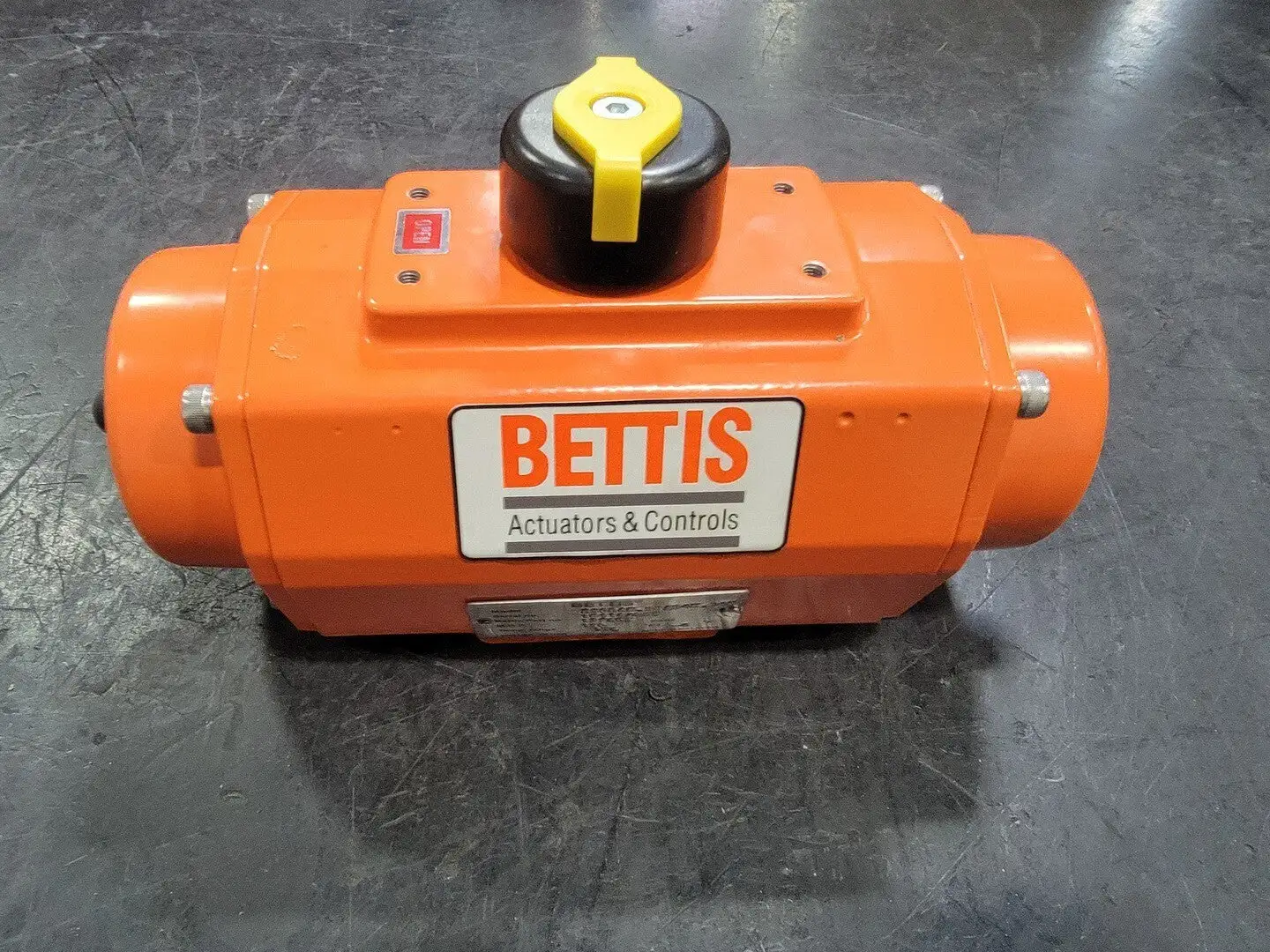

NEW BETTIS DS0065.B2A04K.14K0
Specs
Type: D-Series & Spring Return
Size: 0065
Tapped Mounting Bolt Holes: UNC (Standard Bettis Trim, ISO 5211 with UNC bolt holes on valve mounting side, Metric bolt holes on NAMUR patterns NPT ports)
Travel Stops: Dual Travel stops
Assembly Modes: Standard Bettis Trim Fail-CV (Mounted in line, standard)
Spring Set Number: 04
Color Code: Bettis Orange
Insert Code - Inner Square: 14
Indication Knob: Visual Indication (Knob, Standard)
Pressure Range: 43 to 120 psig
Operating Media: Air, dry or lubricated and inert gases
Temperature Range: -4 deg. F to 176 deg. F
Finish: Polyester non-TGIC based power coating
Rotation: 90 deg. - Clockwise fail action
