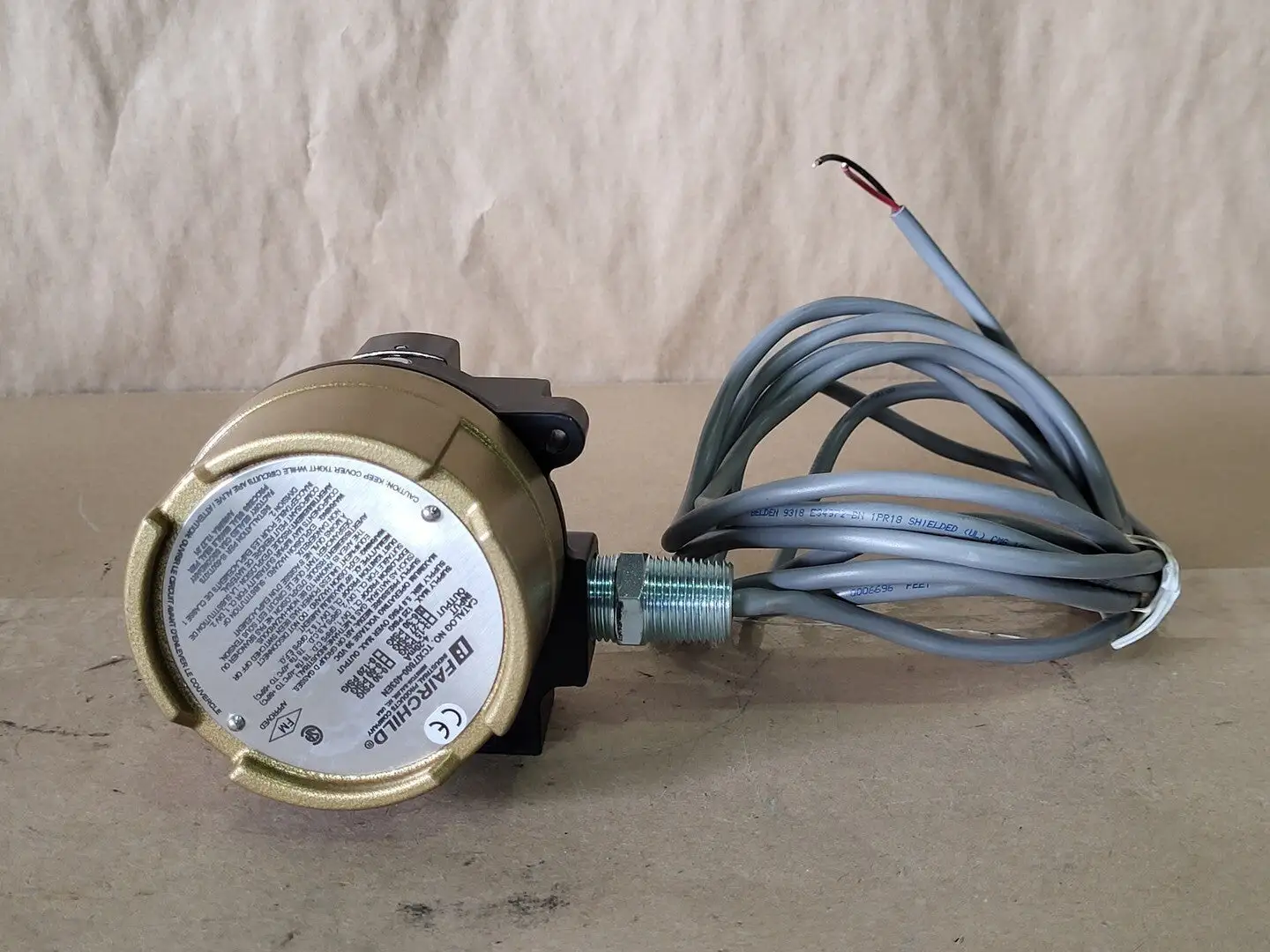

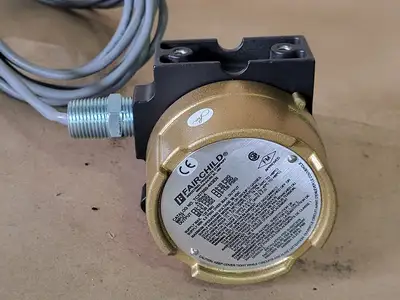

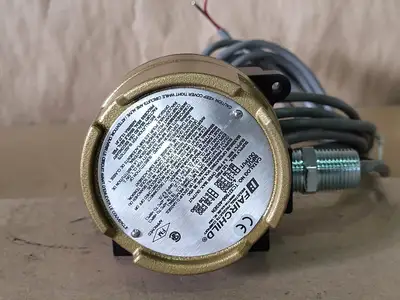

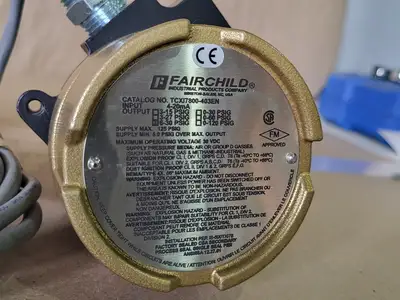

NEW FAIRCHILD TCXI7800-403EN

Accuracy: 0.25% Full Scale Guaranteed, 0.15% Full Scale Typical
Action Type: Reversible
Air Connection: 1/4 in. Female Threaded (Inlet/Outlet)
Air Flow Rate: 9 SCFM at 120 psig
Applicable Standard: Class I Div 1 Group B/C/D, Class I Div 2 Group A/B/C/D, Class II Div 1 Group E/F/G, Class III Div 1 Fiber, FM
Application: Indoor/Outdoor
Body Material: Epoxy-Powder Coated Chromate-Treated Aluminum
Dimensions: 3-11/16 in. W x 3-13/16 in. Diam. x 4-5/8 in. H
Input Signal: 4 to 20 mA DC
Mounting Method: (2) 1/4 in.-20 UNC
Pressure Rating: 35 to 120 psig
Product Type: Electro-Pneumatic Transducers
Temperature Rating: -40 to 160 °F
Output: 6 to 30 psig
