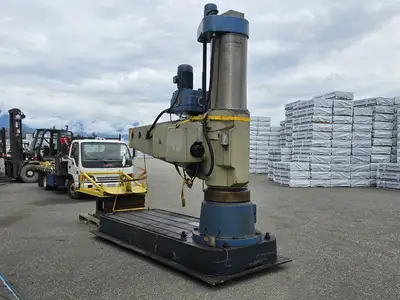

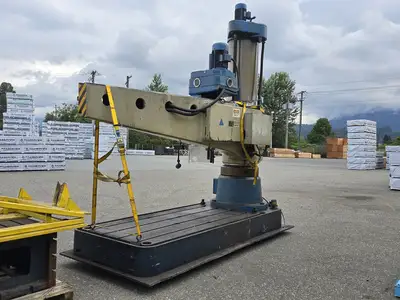

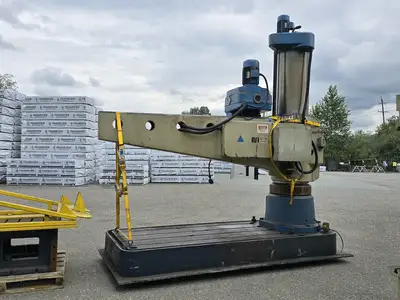

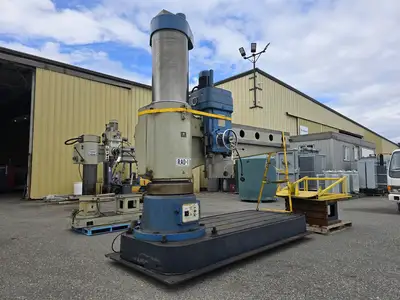

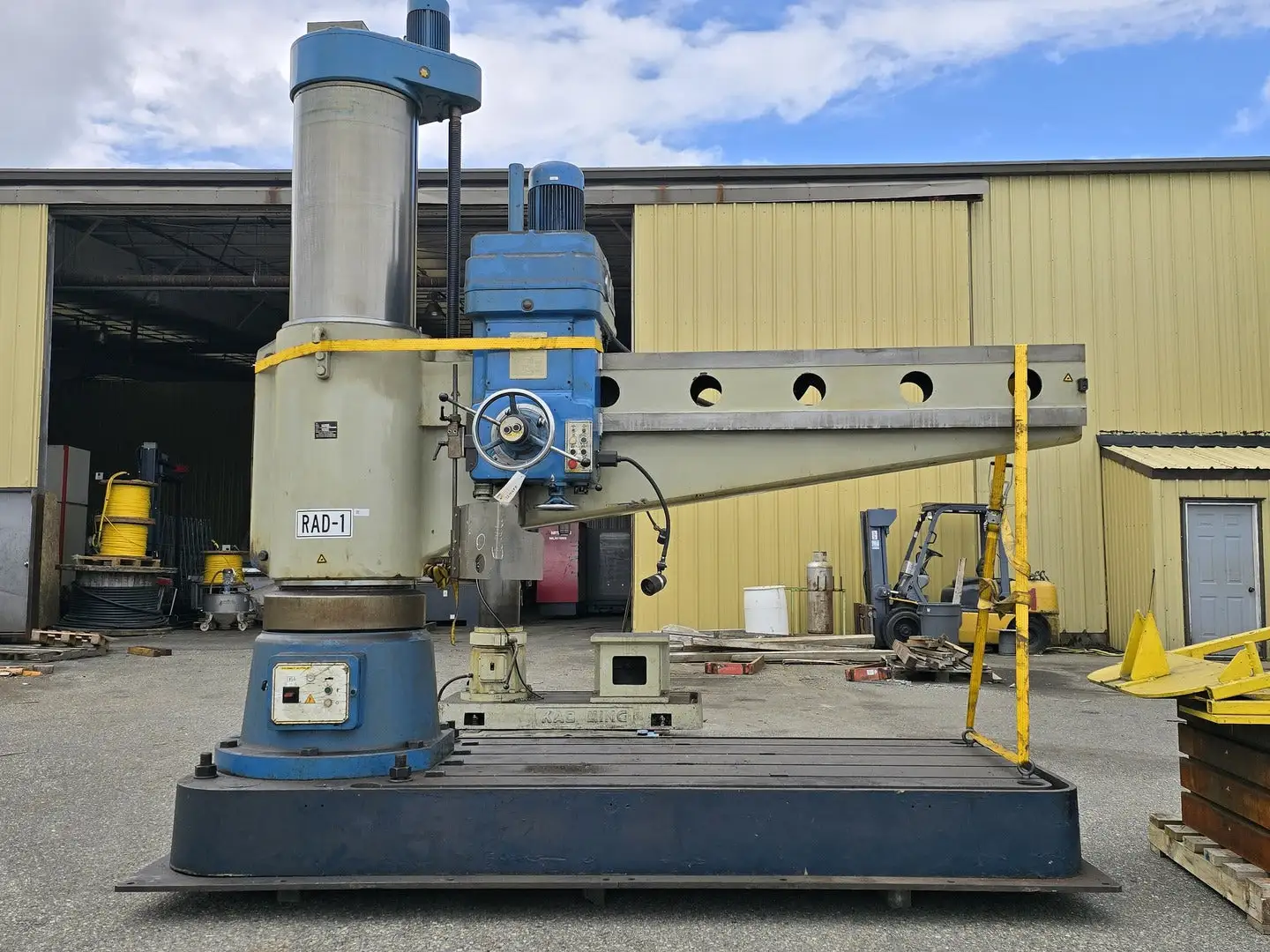

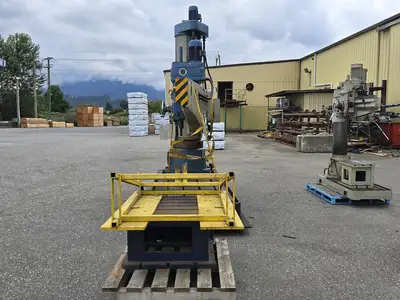

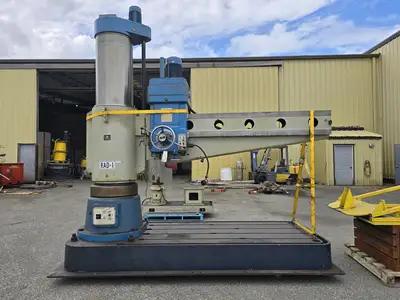

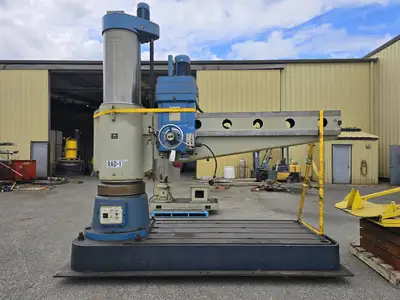

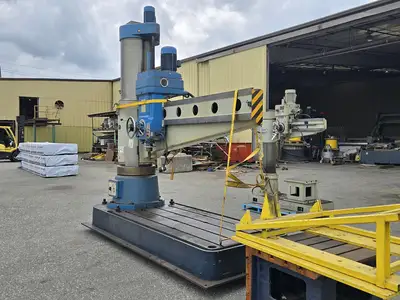

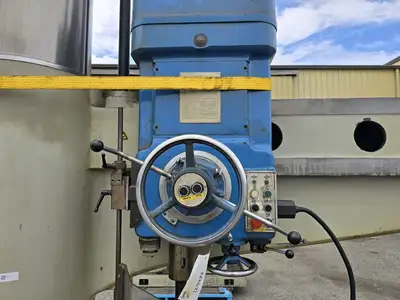

USED 2005 CHINA CZECH Z3080X25

Type: Radial Arm Drill

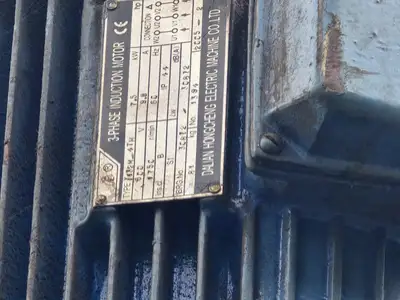

Horsepower: 10 hp
Voltage: 600 volts
Phase: 3-phase
Max Drilling capacity: 80mm // 3.15 in.
Distance spindle axis to column generating line: 500-2500  mm // 19.68 - 98.43 in.

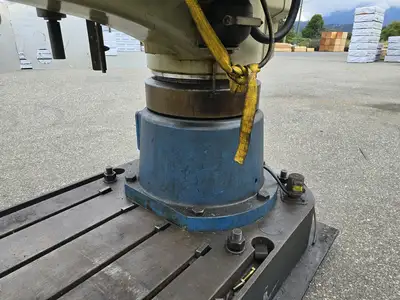

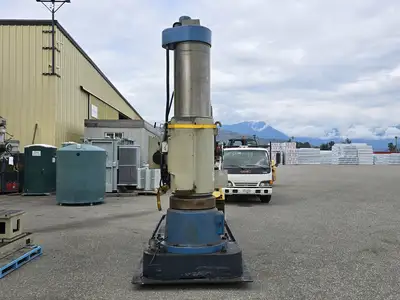

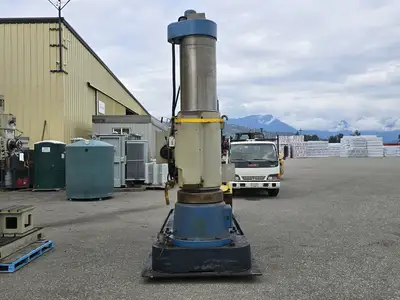

Diameter of column: 550  mm // 21.65 in.
Spindle travel:                     450  mm // 17.72 in.
Spindle speeds range:         16-1250  r/min
Range of spindle feeds:          0.04-3.2  mm/r
Spindle feeds steps:                  16
Distance between spindle nose to working surface of base: 550-2000  mm // 21.65 - 78.74 in.

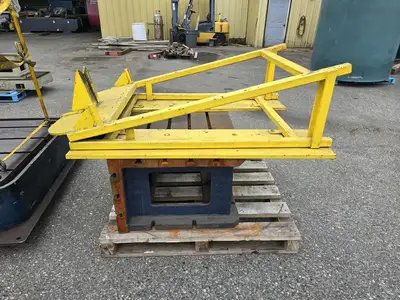

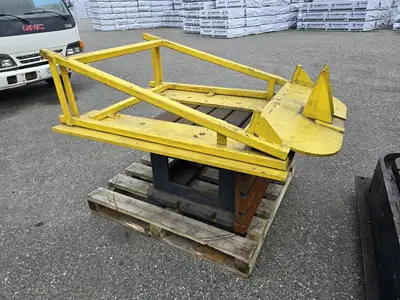

Dimension or work table:          1000x800x560 mm // 39.37 x 31.50 x 22 in.

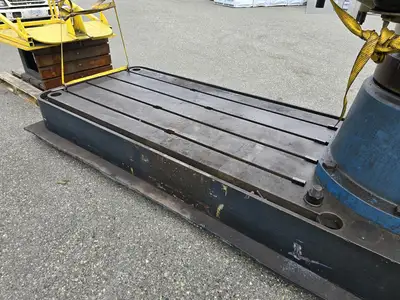

Dimension of base:               3530x1400x300 // 139 x 55.12 x 11.81 in.
