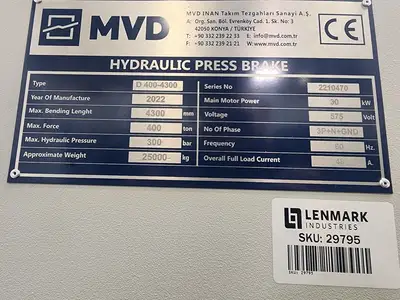

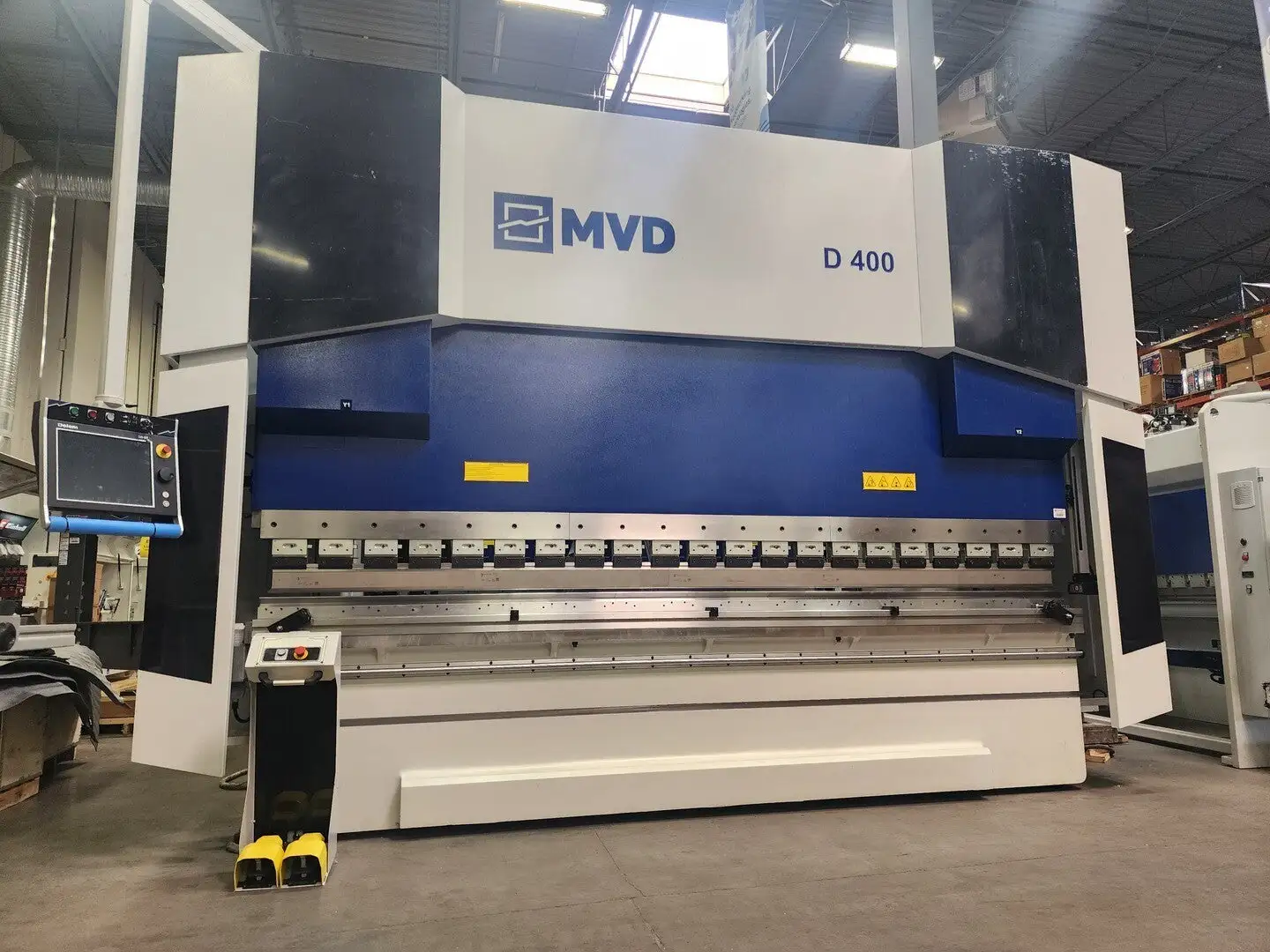

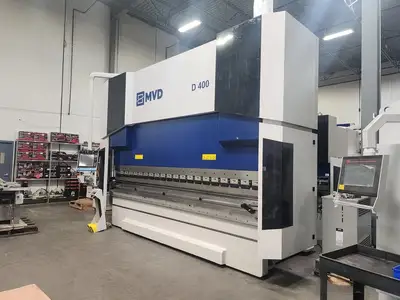

NEW MVD D400-4300

Bed Length: 4300 mm / 169.29 in.
Tons: 400 ton
Brake Type: Hydraulic
CNC: Yes
Voltage: 600 volts
Phase: 3-phase
Y1, Y2, X, R (4-Axes CNC)

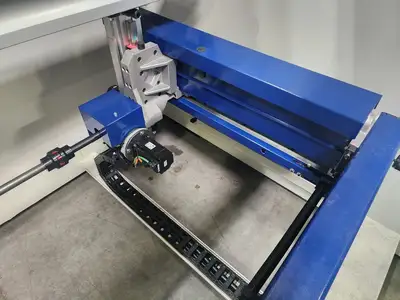

MVD X-Axis Back Gauge, Servo Motorized, ±0.03 mm accuracy, Range X = 750 mm, R = 250 mm
2x pieces Back Gauge finger, straight, 3 stage, manually movable along the linear guide

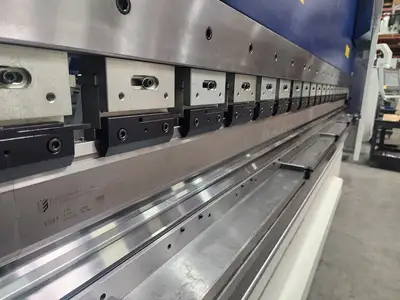

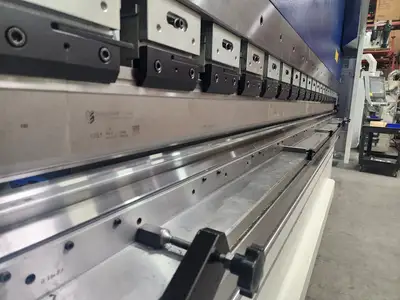

T-Channel + American&European Style Quick clamp Promecam top tool holder E20

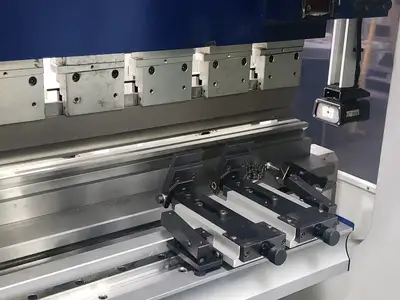

2x pieces Stronger sliding front support arms with hand-wheel D-Type horizontal adjustment
MVD special narrow bottom table
Standard Punch ES 1281 (H: 104°, R: 0.8)
Standard Die ES 2067 (60x60 mm, 4 channels V = 16-22-35-50 mm, 85°, H:60)
2019 D-Series full cabin cover with aluminium controller arm
Double Pedal (Press Up&Down) - P3
Stronger Type 2 motorized crowning with WILA (Holland) wedges
Encoder - Linear Scales: GIVI
LED illumination on RAM
Electric components: Schneider 575-600V/ 60 Hz
Hydraulic: Hoerbiger (HAWE) Blok
Electric cabin: VDE
Pump: Eckerle
Driver: Mitsubishi / LS Electric

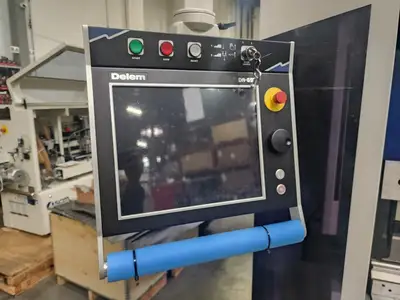

Delem DA-69T, 17" Touch Screen, 3D Graphical, (3-12 Axes) *.dxf with Profile-T3D Offline programming software 3D
300mm Large bottom table for multi Vee die + IW: 70mm EU Die holder
MSD front safety lasers + rear light beams
