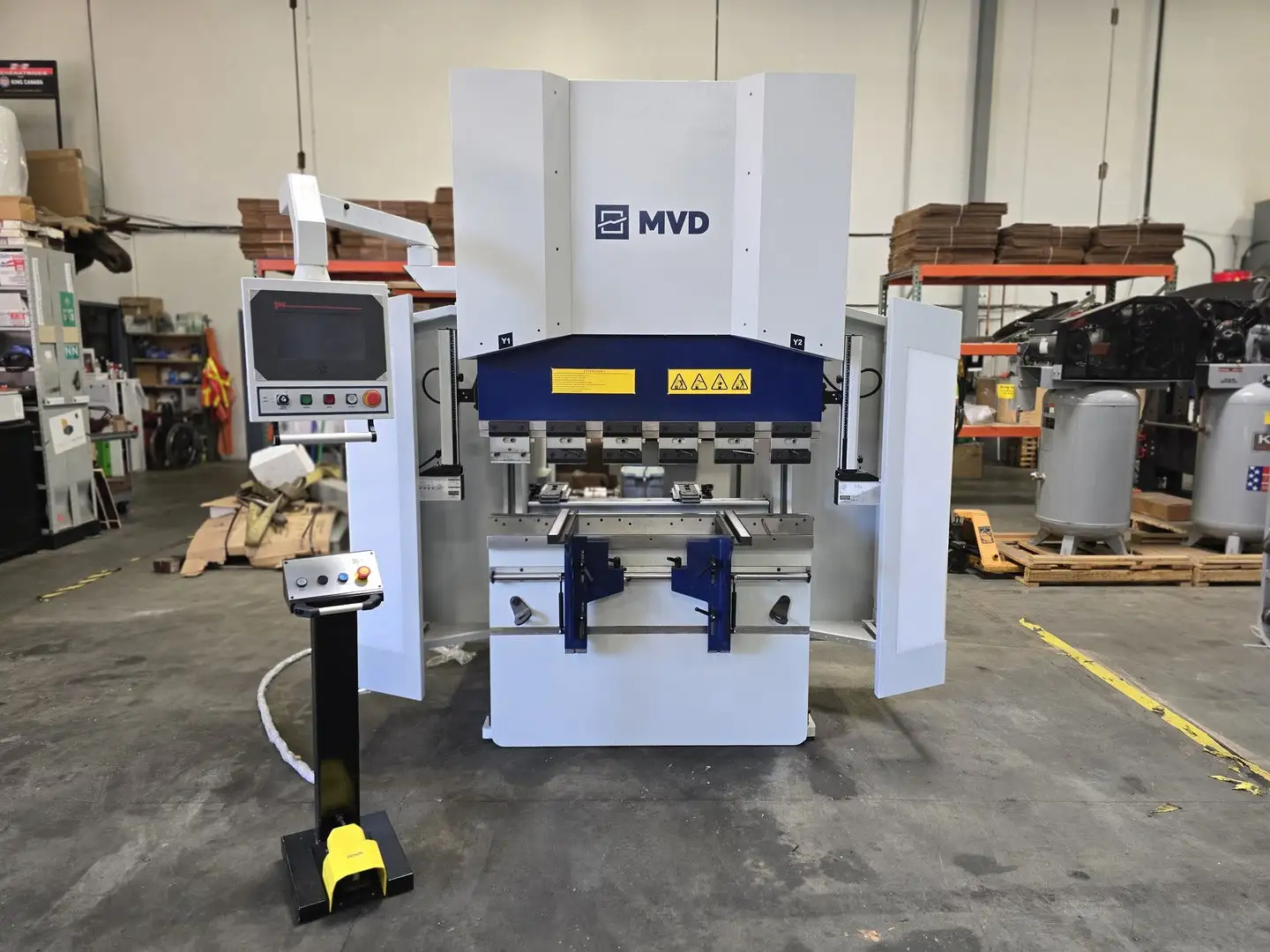

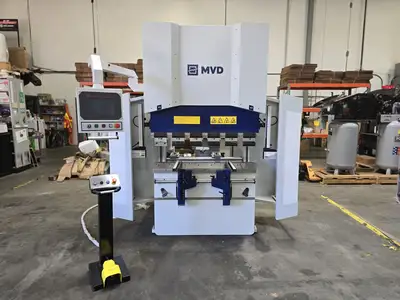

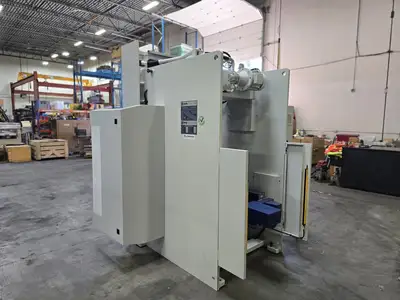

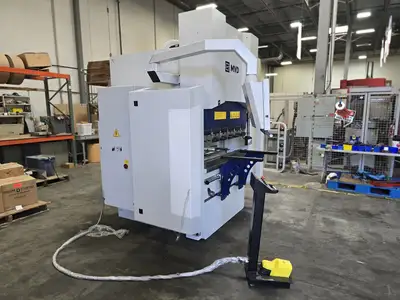

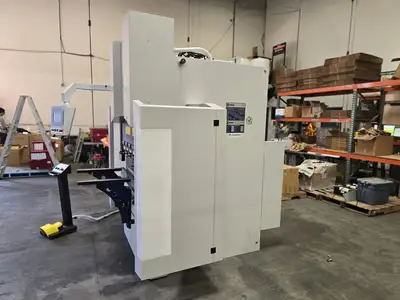

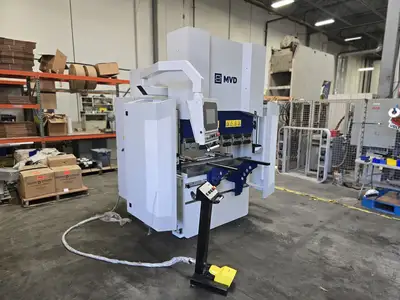

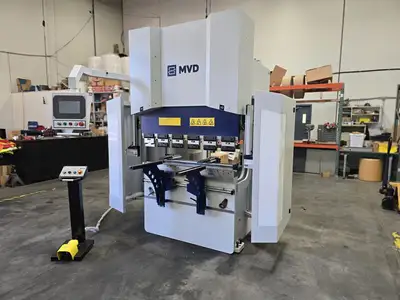

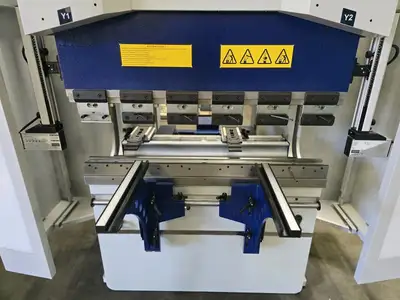

NEW MVD A40-1250

Bed Length: 1250 mm / 4.1 ft.
Tons: 40 ton
Brake Type: Hydraulic
CNC: Yes
Voltage: 575 volts
Phase: 3-phase
Distance between columns: 1100 mm / 43.31 in.
Stroke: 210 mm / 8.27 in.
Daylight: 415 mm / 16.34 in.
Throat: 410 mm / 16.14 in.
Table Height: 885 mm / 34.84 in.
Standard Features
Y1, Y2, X+R (4 axis with X = 750 mm and R = 250 mm)

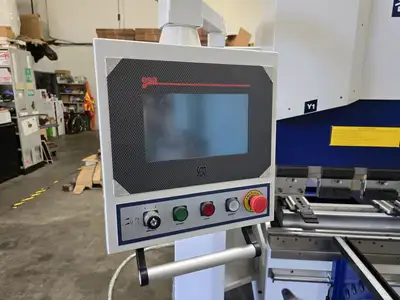

CNC unit: Esa S630 (10") Touch screen 2D Graphical (3-4 Axes)

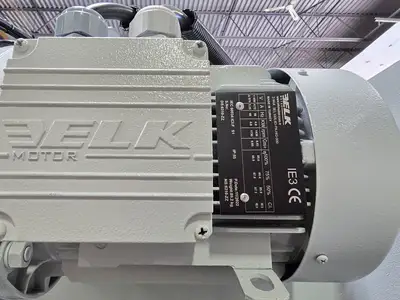

MVD motorised backgauge with ball screws, linear guided, AC Motor and inverter
Magnetic Linear Scales (Turkiye)
2 Pcs backgauge fingers, manually movable along linear guide, precisely adjusted
Side safety doors and cylinder covers
HAWE=Hoerbiger (Germany) hydraulic blocks with proportional valves

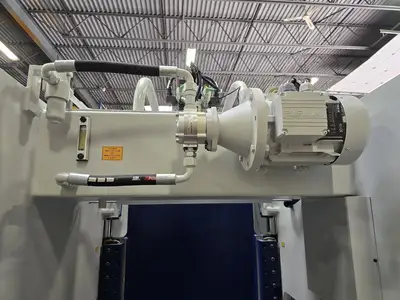

Eckerle (Germany) oil pump, internal gear type
Promecam European type "manual clamping" system
Narrow Bottom table. IW = 60 mm (+10 mm spacer)

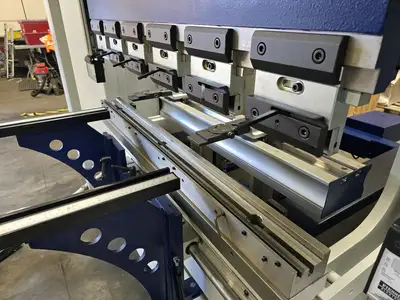

Top Tool: Eurostamp 1260, H:67, 85o, R:0.8
Bottom Die: Eurostamp 2067, 4 way V=16-22-35-50 mm, 85o, H:60

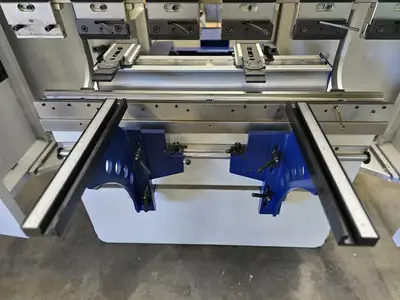

2 Pcs sliding front supports
