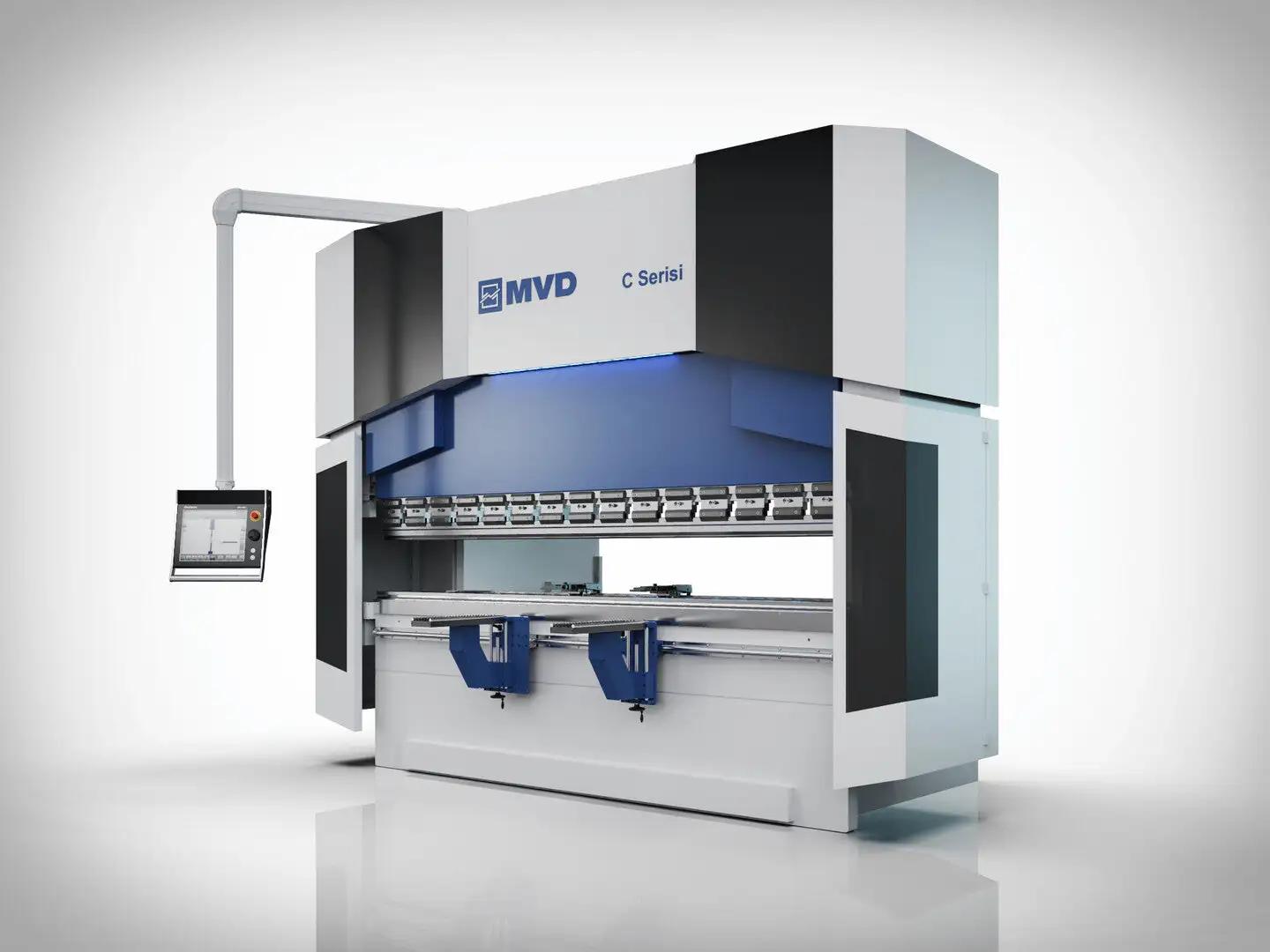

NEW MVD C270-3700

Bed Length: 3700 mm / 144.67 in.
Tons: 270 ton
Brake Type: Hydraulic
Voltage: 600 volts
Phase: 3-phase
Y1, Y2, X, R (4-Axes CNC)
MVD X+R Axes Back Gauge, Servo Motorized, ±0.03 mm accuracy, Range X = 750 mm, R = 250 mm
2x pieces Back Gauge finger, straight, 3 stage, manually movable along the linear guide
American&European Style Quick clamp Promecam top tool holder E20
2x pieces Stronger sliding front support arms with hand-wheel C-Type vertical adjustment
MVD special narrow bottom plate (European Type)
Standard Punch ES 1281 (H: 104, 85°, R: 0.8)
Standard Die ES 2067 (60x60 mm, 4 channels V = 16-22-35-50 mm, 85°, H:60)
2019 C-Series full cabin cover with aluminium controller arm
Double Pedal (Press Up&Down) - P3
Stronger Type 2 manual crowning with WILA (Holland) wedges, adjustable by handle and gauge
Encoder - Linear Scales: GIVI
LED illumination on RAM
Electric components: Schneider 575V/ 60 Hz
Hydraulic: Hoerbiger (HAWE) Blok
Electric cabin: VDE
Pump: Eckerle
Driver: Mitsubishi / LS Electric
CNC Controlled Type#1 Crowning (by Wila wedges and FramoMorat motor)
Delem DA-66T, 17" Touch Screen, 2D Graphical, (3-8 Axes) with Profile-T-Lite - T2D Offline programming software
250mm Large bottom table for multi Vee die+IW: 70mm EU Die holder
MSD front safety lasers + rear light beams
