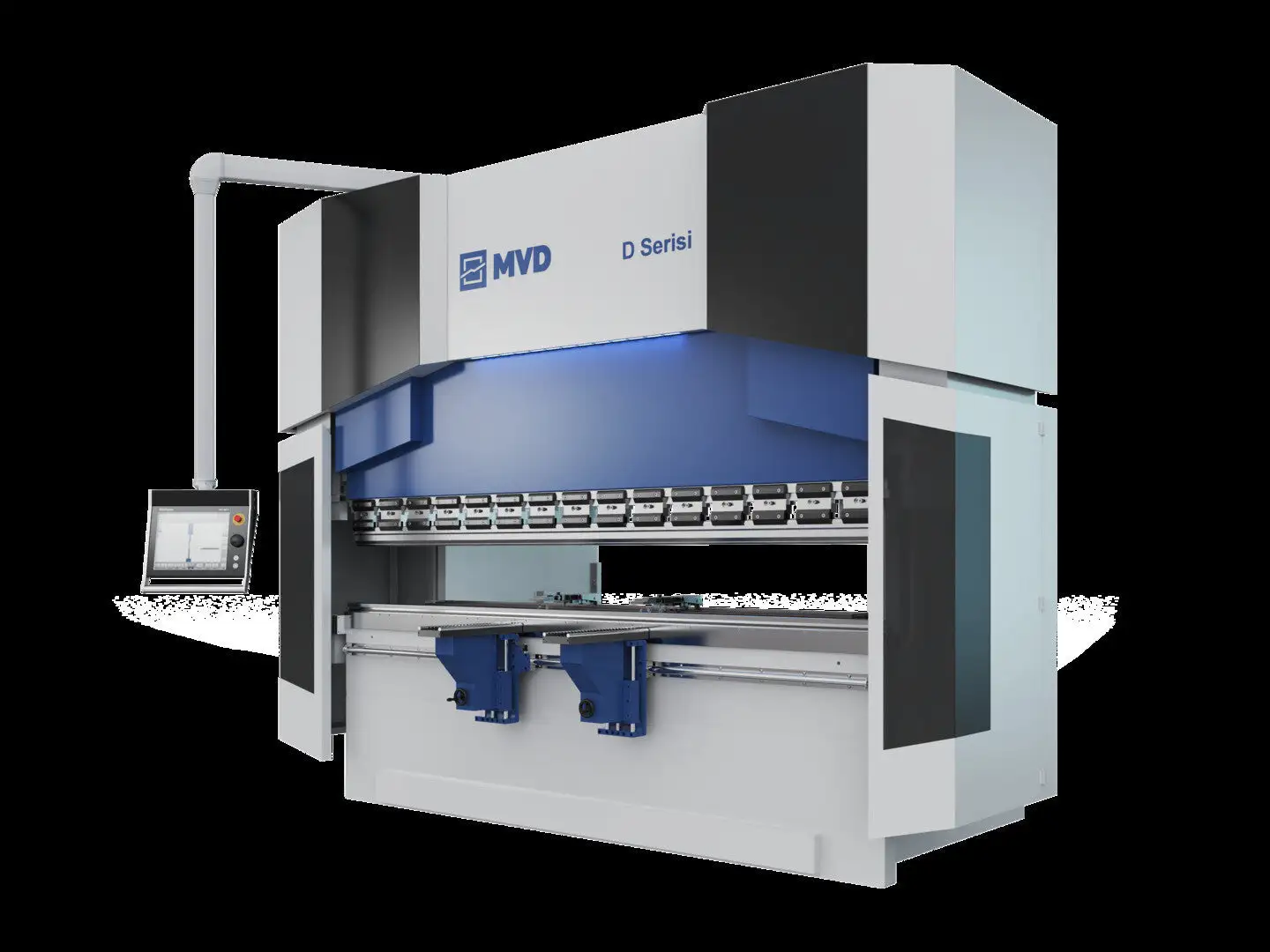

USED MVD D320-3700

Bed Length: 3700 mm / 145.67 in.
Tons: 320 ton
Brake Type: Hydraulic
CNC: Yes
Voltage: 600 volts
Phase: 3-phase
Throat: 510 mm
Daylight: 635 mm
Stroke: 410 mm
Distance between columns: 3200 mm
Features
Y1, Y2, X, R (4-Axes CNC)
ESA S 650 CNC Control Unit
MVD X-Axis Back Gauge, Servo Motorized, Range X = 750 mm, R = 250 mm
2x pieces Back Gauge finger, straight, 3 stage, manually movable along the linear guide
European Style Quick clamp Promecam top tool holder E7
2x pieces Stronger sliding front support arms with hand-wheel D-Type horizontal adjustment
MVD special narrow bottom plate (European Type)
Standard Punch ES 1260 (H: 67, 85°, R: 0.8)
Standard Die ES 2067 (60x60 mm, 4 channels V = 16-22-35-50 mm, 85°, H:60)
2019 D-Series full cabin cover with aluminium controller arm
Double Pedal (Press Up&Down) - P3
Stronger Type 2 motorized crowning with WILA (Holland) wedges
Encoder - Linear Scales: GIVI
LED illumination on RAM
Electric components: Schneider 575V/ 60 Hz
Hydraulic: Hoerbiger (HAWE) Blok
Electric cabin: VDE
Pump: Eckerle
Driver: Mitsubishi / LS Electric
iBend - Back Gauge MVD (X1+X2+R1+R2+Z1+Z2) - SERVO Motorised
Delem DA-69T, 17" Touch Screen, 3D Graphical, (3-12 Axes) *.dxf with Profile-T3D Offline programming software 3D
Wila Hydraulic Punch NSCL-II-HC/UPB - PREMIUM - Max. load 250 t/m
Wila Hydraulic Die NSCR-II-HC (PREMIUM) *Motorised crowning included*
MSD or AKAS(FPBS) front safety lasers + rear light beams
